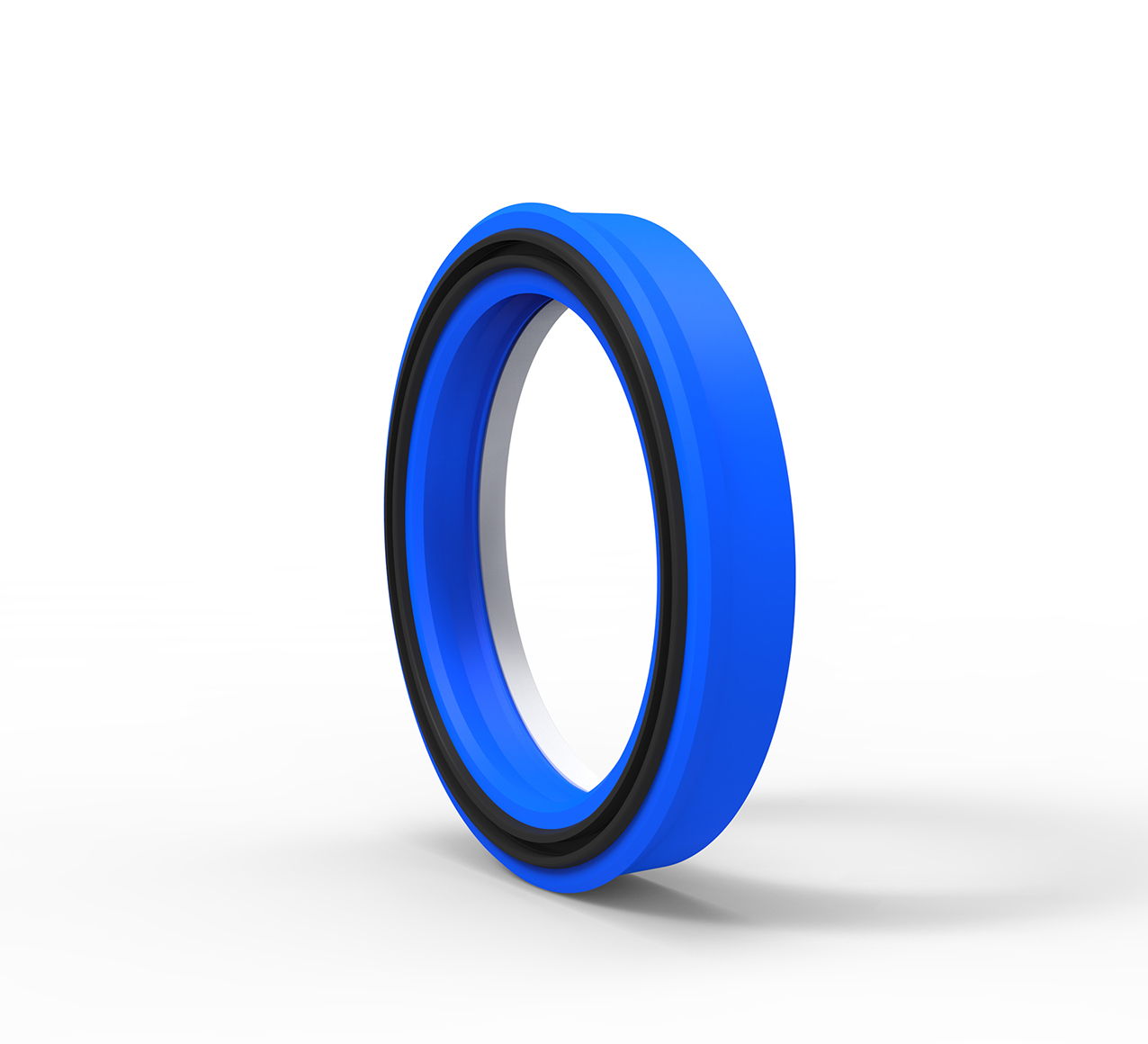

K31

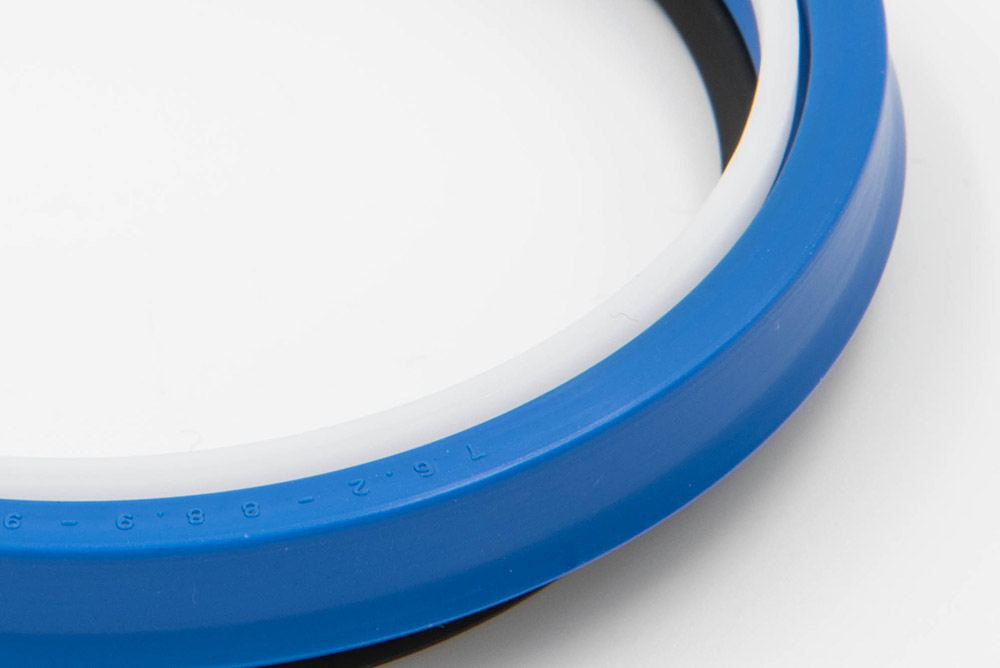

K31 made of 2 single-acting elements consisting of an elastomeric main sealing element with additional sealing lip. K31 with the ability to work in high pressures. K31 having a polyurethane seal between the two lips improves extrusion resistance due to a support ring in thermoplastic material. Seal K31 double-acting cylinders are widely used. K31. they are interchangeable with: MUP - RSS - RUB - T20 - AUN - CG - 601 - MA25 - UP - RPS - K21 - UPN. Hydraulic cylinders with K31 seal are mounted on earth moving machines such as: KOMATSU, CAT CATERPILLAR, HITACHI, VOLVO, IVECO, CASE, JCB, VENERI, NEW HOLLAND, FAI, KUBOTA ... and many others. |Working conditions: |Material: Polyurethane |Pressure: = 630 bar |Speed: = 0,5 m/s |Temperature: - 35°C + 100°C

Category: Rod Seals, Subcategory

Product Description

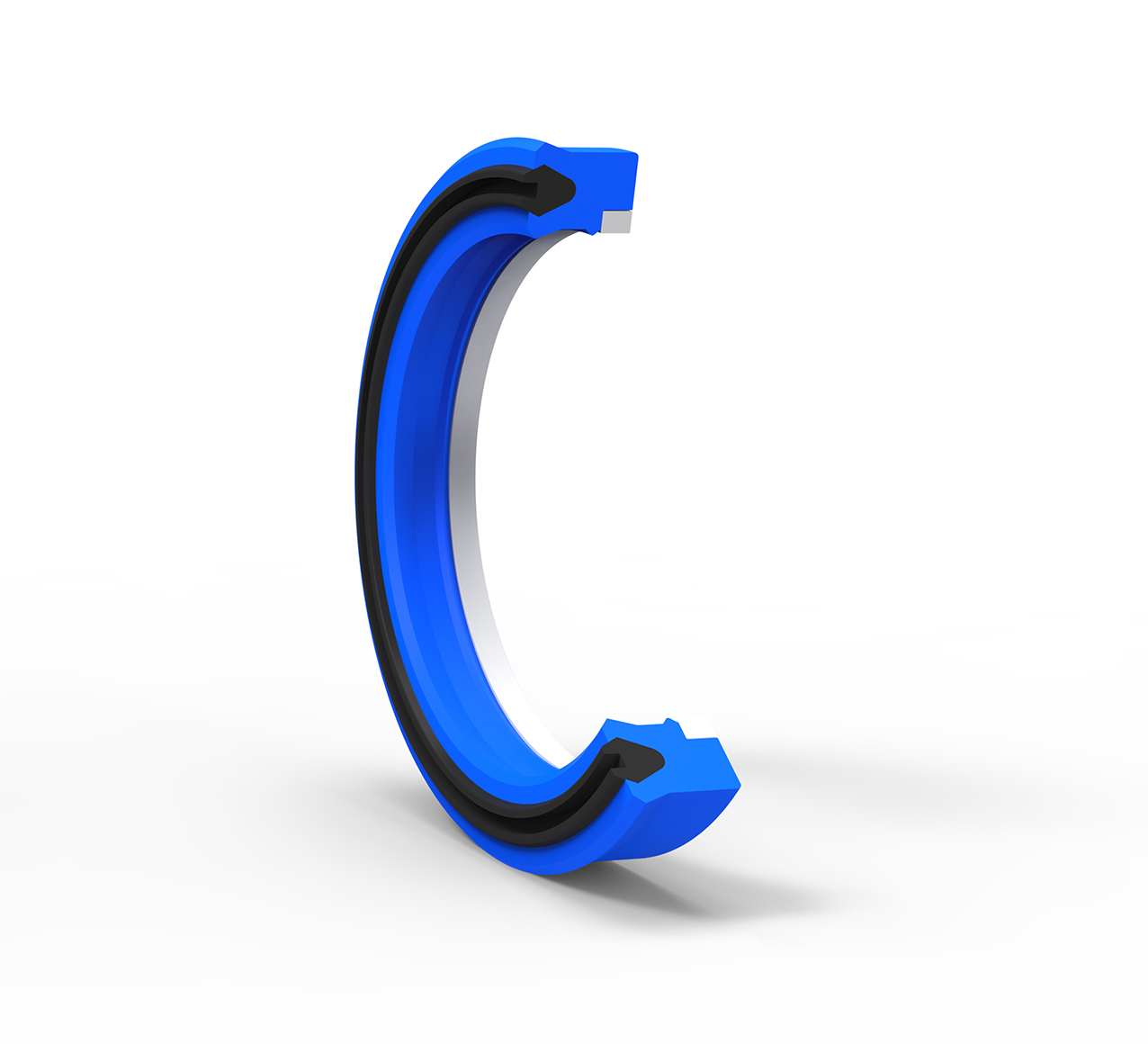

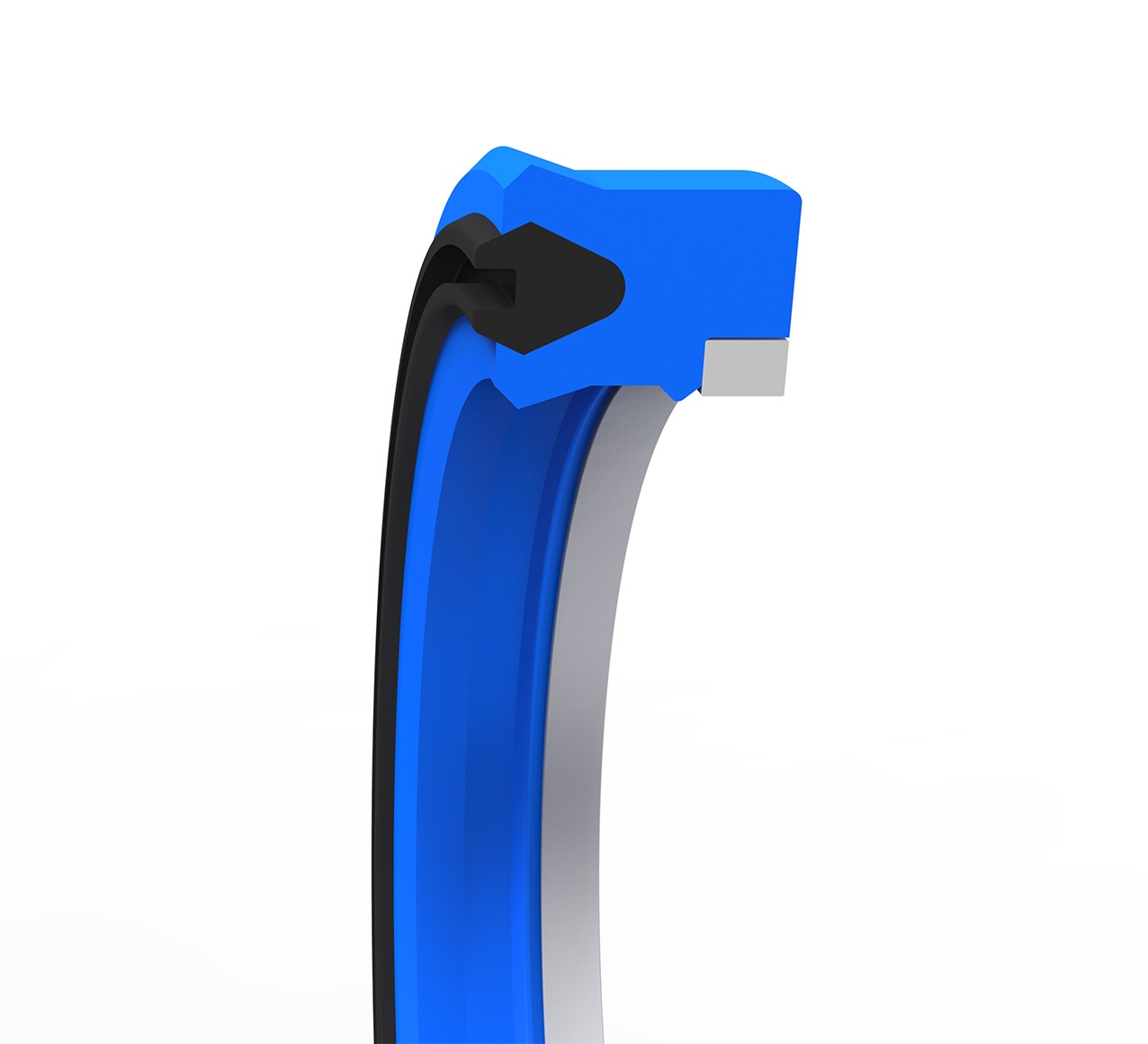

K31 made of 2 single-acting elements consisting of an elastomeric main sealing element with additional sealing lip. K31 with the ability to work in high pressures. K31 having a polyurethane seal between the two lips improves extrusion resistance due to a support ring in thermoplastic material. Seal K31 double-acting cylinders are widely used. K31. they are interchangeable with: MUP - RSS - RUB - T20 - AUN - CG - 601 - MA25 - UP - RPS - K21 - UPN. Hydraulic cylinders with K31 seal are mounted on earth moving machines such as: KOMATSU, CAT CATERPILLAR, HITACHI, VOLVO, IVECO, CASE, JCB, VENERI, NEW HOLLAND, FAI, KUBOTA ... and many others. |Working conditions: |Material: Polyurethane |Pressure: = 630 bar |Speed: = 0,5 m/s |Temperature: - 35°C + 100°C

Additional information

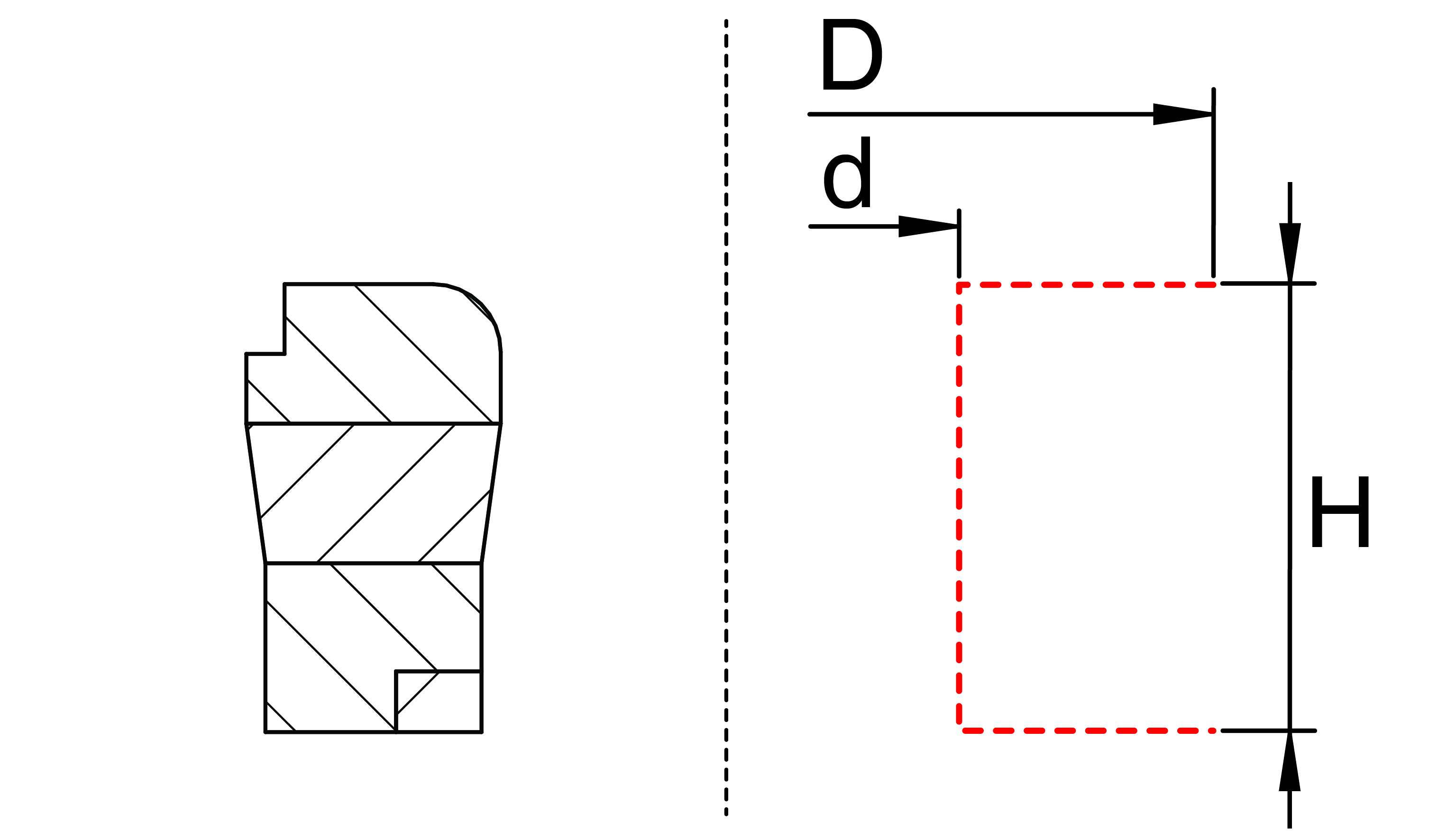

Name Size Materials Speed Stock
K31-PU-025 D.025x035x7,3/8,3 25-35-7.3 Nbr/pu/pom 0.5
K31-PU-030/1 D.030x040x7,3/8,3 30-40-7.3 Nbr/pu/pom 0.5
K31-PU-030 D.030x040x10/11 30-40-10 Nbr/pu/pom 0.5
K31-PU-031/1 D.031,75x041,28x6,35/7,35 31.75-41.28-6.35 Nbr/pu/pom 0.5
K31-PU-031 D.031,75x038,1x6,35/7,35 31.75-38.1-6.35 Nbr/pu/pom 0.5
K31-PU-035 D.035x050x9,5/10,5 35-50-9.5 Nbr/pu/pom 0.5
K31-PU-038/1 D.038,1x050,8x9,52/10,5 38.1-50.8-9.52 Nbr/pu/pom 0.5
K31-PU-038 D.038,1x047,63x6,35/7,35 38.1-47.63-6.35 Nbr/pu/pom 0.5
K31-040/3 D.040x052x8,6 40-52-8.6 Nbr/pu/pom 0.5
K31-PU-040/1 D.040x050x7,3/8,3 40-50-7.3 Nbr/pu/pom 0.5
K31-PU-040/2 D.040x055x11,4/12,4 40-55-11.4 Nbr/pu/pom 0.5
K31-PU-040 D.040x055x9,5/10,5 40-55-9.5 Nbr/pu/pom 0.5
10EUS 3242/LA D.032x042x7/8 42-320-7 Nbr/pu/pom 0.5
K31-044/1 D.044,45x053,98x6,35 44.45-53.98-6.35 Nbr/pu/pom 0.5
K31-PU-044 D.044,45x057,15x9,52 44.45-57.15-9.52 Nbr/pu/pom 0.5
K31-PU-044/2 D.044,45x053,98x9,53 44.45-53.98-9.53 Nbr/pu/pom 0.5
K31-PU-045 D.045x060x11,4/12,5 45-60-11.4 Nbr/pu/pom 0.5
652/M 4782410 D.045x056x4,2 45-56-4.2 Nbr/pu/pom 0.5
K31-PU-050 D.050x065x11,4/12,4 50-65-11.4 Nbr/pu/pom 0.5
K31-PU-050/3 D.050x060x7,3/8,3 50-60-7.3 Nbr/pu/pom 0.5
K31-PU-050/1 D.050,80x060,32x9,5 50.8-60.32-9.5 Nbr/pu/pom 0.5
K31-PU-050/2 D.050,80x063,50x9,52 50.8-63.5-9.52 Nbr/pu/pom 0.5
K31-PU-055/1 D.055x068x13/14 55-68-13 Nbr/pu/pom 0.5
K31-PU-055 D.055x070x11,4/12,4 55-70-11.4 Nbr/pu/pom 0.5
K31-056 D.056x071x11,4 56-71-11.4 Nbr/pu/pom 0.5
K31-PU-057 D.057,15x069,85x9,52 57.15-69.85-9.52 Nbr/pu/pom 0.5
BD 0060 00042 D.060x075x11,4/12,5 60-75-11.4 Nbr/pu/pom 0.5
K31-PU-060 D.060x075x11,4/12,4 60-75-11.4 Nbr/pu/pom 0.5
K31-PU-060/1 D.060x073x13/14 60-73-13 Nbr/pu/pom 0.5
K31-PU-060/2 D.060x072x8,6/9,5 60-72-8.6 Pu/nbr 0.5
K31-063/2 D.063x078x11,4 63-78-11.4 Pu/pom 0.5
K31-PU-063/1 D.063x075x8,6/9,6 63-75-8.6 Nbr/pu/pom 0.5
K31-PU-063 D.063,50x076,20x9,52 63.5-76.2-9.52 Nbr/pu/pom 0.5
K31-PU-065 D.065x078x10/11 65-78-10 Nbr/pu/pom 0.5
K31-PU-065/1 D.065x080x9/10 65-80-9 Nbr/pu/pom 0.5
BD 0050 00042 D.050x065x11,4/12,5 65-500-11.4 Nbr/pu/pom 0.5
K31-PU-069 D.069,85x082,55x9,52 69.85-82.55-9.52 Nbr/pu/pom 0.5
K31-PU-070/1 D.070x083x10/11 70-83-10 Nbr/pu/pom 0.5
K31-PU-070/5 D.070x082x8,6/9,6 70-82-8.6 Nbr/pu/pom 0.5
K31-PU-070 D.070x085x11,4/12,5 70-85-11.4 Nbr/pu/pom 0.5
K31-PU-070/2 D.070x085x9/10 70-85-9 Nbr/pu/pom 0.5
K31-PU-070/3 D.070x080x12/13 70-80-12 Nbr/pu/pom 0.5
K31-PU-070/4 D.070x085x10/11 70-85-10 Nbr/pu/pom 0.5
K31-PU-075 D.075x088x10/11 75-88-10 Nbr/pu/pom 0.5
K31-PU-070/1 D.075x090x9/10 75-90-9 Nbr/pu/pom 0.5
K31-PU-076 D.076,20x092,075x12,7 76.2-92.07-12.7 Nbr/pu/pom 0.5
K31-PU-076/2 D.076,20x088,90x9,52 76.2-88.9-9.52 Nbr/pu/pom 0.5
K31-PU-080/2 D.080x095x9/10 80-95-9 Nbr/pu/pom 0.5
K31-PU-080 D.080x095x11,4/12,5 80-95-11.4 Nbr/pu/pom 0.5
K31-PU-080/1 D.080x093x10/11 80-93-10 Nbr/pu/pom 0.5
K31-PU-082 D.082,55x095,25x9,52/10,5 82.55-95.25-9.52 Nbr/pu/pom 0.5
K31-PU-085 D.085x100x10/11 85-100-10 Nbr/pu/pom 0.5
K31-PU-085/1 D.085x105x15/16 85-105-15 Nbr/pu/pom 0.5
K31-PU-085/2 D.085x097x8,6/9,5 85-97-8.6 Nbr/pu/pom 0.5
K31-PU-088/1 D.088,9x104,77x12,7/13,7 88.9-104.77-12.7 Nbr/pu/pom 0.5
K31-PU-088 D.088,90x101,60x9,52 88.9-101.6-9.52 Nbr/pu/pom 0.5
K31-PU-090/1 D.090x105x10/11 90-105-10 Nbr/pu/pom 0.5
K31-PU-090 D.090x105x11,4/12,5 90-105-11.4 Nbr/pu/pom 0.5
K31-090/6 D.090x105x14,5 90-105-14.5 Nbr/pu/pom 0.5
K31-PU-090/2 D.090x110x17/18 90-110-17 Nbr/pu/pom 0.5
K31-PU-090/3 D.090x110x14,5/15,5 90-110-14.5 Nbr/pu/pom 0.5
K31-PU-090/4 D.090x100x12/13 90-100-12 Nbr/pu/pom 0.5
K31-PU-090/5 D.090x105x15/16,5 90-105-15 Nbr/pu/pom 0.5
K31-PU-095 D.095x110x10/11 95-110-10 Nbr/pu/pom 0.5
K31-PU-095/1 D.095x115x15/16 95-115-15 Nbr/pu/pom 0.5
K31-PU 100/1 D.100x115x10/11 100-115-10 Nbr/pu/pom 0.5
K31-PU-100 D.100x120x14,5/15,5 100-120-14.5 Nbr/pu/pom 0.5
BD 0100 00042 D.100x120x14,5/16 100-120-14.5 Nbr/pu/pom 0.5
K31-100/2 D.100x120x14 100-120-14 Nbr/pu/pom 0.5
K31-PU-100/4 D.100x115x15/16 100-115-15 Nbr/pu/pom 0.5
K31-PU-101 D.101,6x114,3x14,28/15,28 101.6-114.3-14.28 Nbr/pu/pom 0.5
K31-PU-101/1 D.101,6x117,47x14,28/15,28 101.6-117.47-14.28 Nbr/pu/pom 0.5
K31-PU-101/2 D.101,6x114,3x9,52/10,5 101.6-114.3-9.52 Nbr/pu/pom 0.5
K31-PU-105 D.105x120x12/13 105-120-12 Nbr/pu/pom 0.5
K31-PU-105/1 D.105x125x14,5/16 105-125-14.5 Nbr/pu/pom 0.5
K31-PU-105/2 D.105x120x14,5/15,5 105-120-14.5 Nbr/pu/pom 0.5
K31-PU-107 D.107,95x120,65x13,6/14,6 107.95-120.65-13.6 Nbr/pu/pom 0.5
K31-PU-110/2 D.110x130x14,5/15,5 110-130-14.5 Nbr/pu/pom 0.5
K31-PU-110/1 D.110x125x12/13 110-125-12 Nbr/pu/pom 0.5
K31-PU-110 D.110x130x12/13 110-130-12 Nbr/pu/pom 0.5
K31-PU-114 D.114,3x127x14,28/15,28 114.3-127-14.28 Nbr/pu/pom 0.5
K31-PU-114/1 D.114,3x133,35x15,87/16,87 114.3-133.35-15.87 Nbr/pu/pom 0.5
K31-PU-115 D.115x135x14,5/15,5 115-135-14.5 Nbr/pu/pom 0.5
K31-PU-115/1 D.115x130x15/16,5 115-130-15 Nbr/pu/pom 0.5
K31-120/2 D.120x140x14,6 120-140-14.6 Nbr/pu/pom 0.5
K31-PU-120 D.120x140x12/13 120-140-12 Nbr/pu/pom 0.5
K31-PU-125 D.125x145x14,5/15,5 125-145-14.5 Nbr/pu/pom 0.5
K31-PU-127 D.127x146,05x15,87/16,87 127-146.05-15.87 Nbr/pu/pom 0.5
K31-PU-130 D.130x150x14,5/15,5 130-150-14.5 Nbr/pu/pom 0.5
K31-135 D.135x155x13,6 135-155-13.6 Nbr/pu/pom 0.5
K31-PU-139 D.139,7x152,4x14,28/15,28 139.7-152.4-14.28 Nbr/pu/pom 0.5
K31-PU-140 D.140x160x14,5/15,5 140-160-14.5 Nbr/pu/pom 0.5
K31-145 D.145x165x15 145-165-15 Nbr/pu/pom 0.5
K31-PU-150/1 D.150x170x14,5/15,5 150-170-14.5 Nbr/pu/pom 0.5
K31-PU-150 D.150x160x14,5/15,5 150-160-14.5 Nbr/pu/pom 0.5
K31-PU-152 D.152,4x171,45x15,87/16,9 152.4-171.45-15.87 Nbr/pu/pom 0.5
K31-160/2 D.160x177x15 160-177-15 Nbr/pu/pom 0.5
K31-PU-160 D.160x175x14,5/15,5 160-175-14.5 Nbr/pu/pom 0.5
K31-PU-160/1 D.160x180x14,6/16 160-180-14.6 Nbr/pu/pom 0.5
S24-P D.160x175x12,5/13,5 160-175-12.5 Nbr/pu/pom 0.5
K31-PU-170 D.170x185x14,5/15,5 170-185-14.5 Nbr/pu/pom 0.5
K31-180/2 D.180x200x14,6 180-200-14.6 Nbr/pu/pom 0.5
K31-PU-180 D.180x205x18,2/19,2 180-205-18.2 Nbr/pu/pom 0.5
K31-PU-180/1 D.180x195x14,5/15,5 180-195-14.5 Nbr/pu/pom 0.5
K31-PU-185 D.185x205x18,5/19,5 185-205-18.5 Nbr/pu/pom 0.5
K31-190 D.190x205x14,5 190-205-14.5 Nbr/pu/pom 0.5
K31-PU-200 D.200x220x14,6/16 200-220-14.6 Nbr/pu/pom 0.5
K31-210/1 D.210x235x18 210-235-18 Nbr/pu/pom 0.5
K31-PU-210 D.210x230x14,5/15,5 210-230-14.5 Nbr/pu/pom 0.5
K31-PU-220 D.220x245x19/20 220-245-19 Nbr/pu/pom 0.5
K31-PU-230 D.230x250x15/16,5 230-250-15 Nbr/pu/pom 0.5
K31-PU-230/1 D.230x250x14,5/15,5 230-250-14.5 Nbr/pu/pom 0.5
K31-235 D.235x255x15 235-255-15 Nbr/pu/pom 0.5
K31-PU-240 D.240x260x15/16,5 240-260-15 Nbr/pu/pom 0.5
K31-PU-240/1 D.240x260x14,5/15,5 240-260-14.5 Nbr/pu/pom 0.5
S24-P D.248x270x15/16 248-270-15 Nbr/pu/pom 0.5
K31-PU-280 D.280x300x14,5/15,5 280-300-14.5 Nbr/pu/pom 0.5
K31-PU-290 D.290x315x19/21 290-315-19 Nbr/pu/pom 0.5
K31-PU-295 D.295x315x16,4/18 295-315-16.4 Nbr/pu/pom 0.5
K31-PU-300 D.300x320x14,5/15,5 300-320-14.5 Nbr/pu/pom 0.5
K31-PU-300 D.300x320x14,5/15,5 300-320-15.5 Nbr/pu/pom 0.5
K31-PU-340 D.340x365x19/21 340-365-19 NBR/PU/POM 0.5
K31-PU-340 D.340x365x19/21 340-365-21 NBR/PU/POM 0.5
