GIR

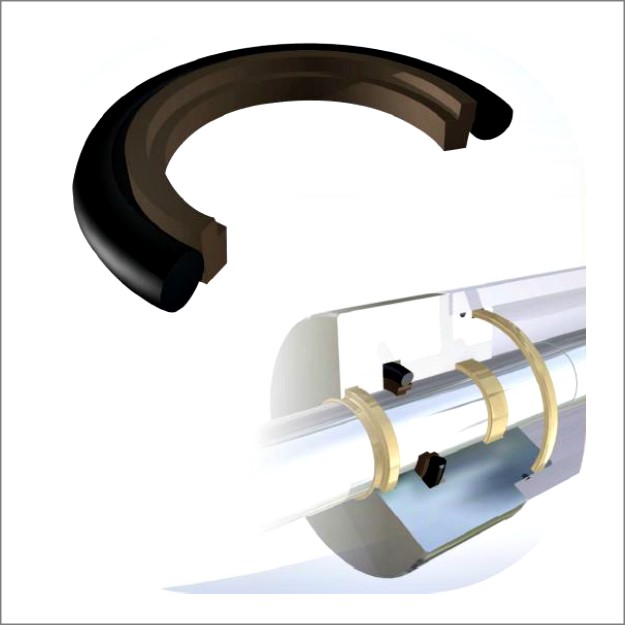

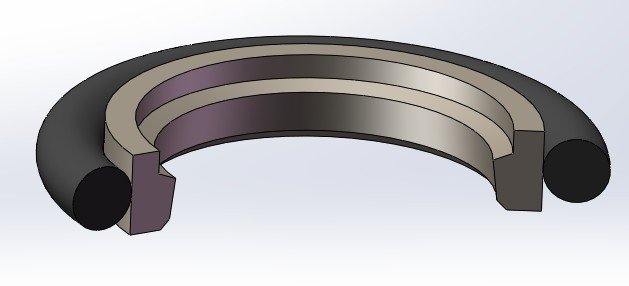

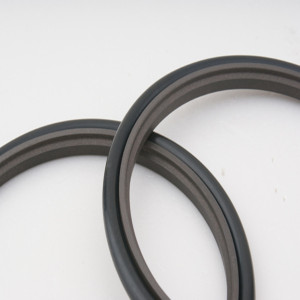

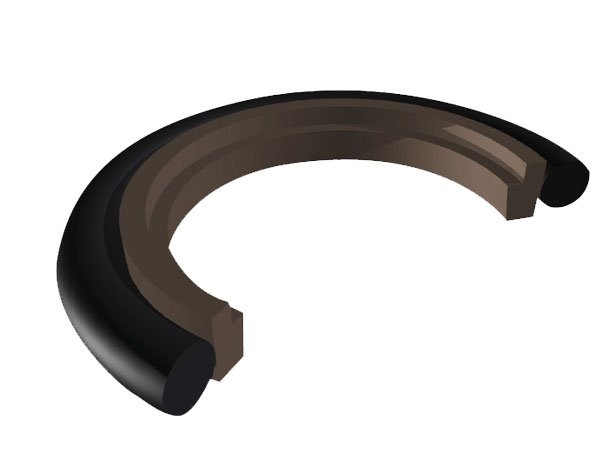

GIR seal created to work on chromed rod in hydraulic cylinders. The GIR seal is installed inside the cylinder head where the GIR seal works to maintain the pressure in the cylinder at the piston rod exit and the piston rod return. Seal called GIR are composed of 2 components: with an external ring in bronze loaded PTFE material to offer a low friction, corrosion-resistant and excellent seal, and another special rubber ring that acts as a push in the seal.
Hydraulic cylinders with GIR seal are mounted on earth moving machines such as: KOMATSU, CAT CATERPILLAR, HITACHI, VOLVO, IVECO, CASE, JCB, VENERI, NEW HOLLAND, FAI, KUBOTA ... and many others.
GIR seal are interchangeable with other similar seals such as: I/GR - OMS-MR - 16 - S31 - SPOR31 - CSI - XAB - XB - K35 - MBRS - LOMSC - HBTS - SPNS - CS6 - HBT - MKR - KR - RS-11 - GCR - NCR.
|Description:
|Material: PTFE + BRONZE + OR-NBR.
|Pressure: = 800 bar
|Speed: = 15 m/s.
|Temperature: - 35°C + 130°C with OR in NBR.
|Temperature: - 35°C + 200°C with OR in FKM (VITON).

Category: Rod Seals, Subcategory

Product Description

GIR seal created to work on chromed rod in hydraulic cylinders. The GIR seal is installed inside the cylinder head where the GIR seal works to maintain the pressure in the cylinder at the piston rod exit and the piston rod return. Seal called GIR are composed of 2 components: with an external ring in bronze loaded PTFE material to offer a low friction, corrosion-resistant and excellent seal, and another special rubber ring that acts as a push in the seal.
Hydraulic cylinders with GIR seal are mounted on earth moving machines such as: KOMATSU, CAT CATERPILLAR, HITACHI, VOLVO, IVECO, CASE, JCB, VENERI, NEW HOLLAND, FAI, KUBOTA ... and many others.
GIR seal are interchangeable with other similar seals such as: I/GR - OMS-MR - 16 - S31 - SPOR31 - CSI - XAB - XB - K35 - MBRS - LOMSC - HBTS - SPNS - CS6 - HBT - MKR - KR - RS-11 - GCR - NCR.
|Description:
|Material: PTFE + BRONZE + OR-NBR.
|Pressure: = 800 bar
|Speed: = 15 m/s.
|Temperature: - 35°C + 130°C with OR in NBR.
|Temperature: - 35°C + 200°C with OR in FKM (VITON).

Additional information

Name Size Materials Speed Stock
GIR 0030 OR-2018 D.003x007,9x2,20 3-7.9-2.2 Ptfe/bronzo/nbr 15
GIR-T05 0030 OR-2018 D.003x007,9x2,20 3-7.9-2.2 Ptfe/bronzo/nbr 15
GIR 0040 OR-2025 D.004x008,9x2,20 4-8.9-2.2 Ptfe/bronzo/nbr 15
GIR 0050 OR-2025 D.005x009,9x2,20 5-9.9-2.2 Ptfe/bronzo/nbr 15
GIR 0065 OR- D.006,50x011,40x2,20 6.5-11.4-2.2 Ptfe/bronzo/nbr 15
GIR 0070 OR-2037 D.007x011,9x2,20 7-11.9-2.2 Ptfe/bronzo/nbr 15
GIR/L 0080 OR-2037 D.008x012,9x2,2 8-12.9-2.2 Ptfe/bronzo/nbr 15
GIR/ISO 0080 OR-2043 D.008x013x2,2 8-13-2.2 Ptfe/bronzo/nbr 15
GIR 0080 OR-3043 D.008x015,3x3,2 8-15.3-3.2 Ptfe/bronzo/nbr 15
GIR/VETRO 0100 D.010x017,3x3,2 10-17.3-3.2 Ptfe/bronzo/nbr 15
GIR/L 0120 OR-2056 D.012x016,9x2,2 12-16.9-2.2 Ptfe/bronzo/nbr 15
GIR/T/L 0120 OR-2056 D.012x016,9x2,2 12-16.9-2.2 Ptfe/bronzo/nbr 15
GIR/P 0012 OR-0000 D.012x022,70x4,2 12-22.7-4.2 Ptfe/bronzo/nbr 15
GIR/L 0130 OR-2056 D.013x017,9x2,2 13-17.9-2.2 Ptfe/bronzo/nbr 15
GIR/L 0150 OR-2068 D.015x019,9x2,2 15-19.9-2.2 Ptfe/bronzo/nbr 15
GIR 0150 OR-3075 D.015x022,3x3,2 15-22.3-3.2 Ptfe/bronzo/nbr 15
GIR 0160 OR-3075 D.016x023,3x3,2 16-23.3-3.2 Ptfe/bronzo/nbr 15
GIR/CAR 0160 OR-3075 D.016x023,3x3,2 16-23.3-3.2 Ptfe/bronzo/nbr 15
GIR 0170 OR-3075 D.017x024,3x3,2 17-24.3-3.2 Ptfe/bronzo/nbr 15
GIR/T 0180 -OR.3081 D.018x025,3x3,2 18-25.3-3.2 Ptfe/bronzo/nbr 15
GIR/VETRO 0180 D.018x025,3x3,2 18-25.3-3.2 Ptfe/bronzo/nbr 15
GIR/L 0200 OR-3087 D.020x027,5x3,2 20-27.5-3.2 Ptfe/bronzo/nbr 15
GIR 0200 OR-4100 D.020x030,7x4,2 20-30.7-4.2 Ptfe/bronzo/nbr 15
GIR/L 0220 OR-3100 D.022x029,3x3,2 22-29.3-3.2 Ptfe/bronzo/nbr 15
GIR 0220 OR-4106 D.022x032,7x4,2 22-32.7-4.2 Ptfe/bronzo/nbr 15
GIR 0240 OR-4112 D.024x034,7x4,2 24-34.7-4.2 Ptfe/bronzo/nbr 15
GIR/L 0250 OR-3106 D.025x032,3x3,2 25-32.3-3.2 Ptfe/bronzo/nbr 15
GIR 0250 OR-4118 D.025x035,7x4,2 25-35.7-4.2 Ptfe/bronzo/nbr 15
GIR-PO 025 1" 4125 D.025,40x036,10x4,2 25.4-36.1-4.2 Ptfe/bronzo/nbr 15
GIR 0260 OR-4125 D.026x036,7x4,2 26-36.7-4.2 Ptfe/bronzo/nbr 15
GIR 0270 OR-3118 D.027x034,3x3,2 27-34.3-3.2 Ptfe/bronzo/nbr 15
GIR/L 0280 OR-3118 VIT D.028x035,3x3,2 28-35.3-3.2 Ptfe/bronzo/nbr 15
GIR 0280 OR-4131 D.028x038,7x4,2 28-38.7-4.2 Ptfe/bronzo/nbr 15
GIR / VERGINE 0280 OR-4131 D.028x038,7x4,2 28-38.7-4.2 Ptfe/bronzo/nbr 15
GIR/L 0300 OR-3131 D.030x037,3x3,2 30-37.3-3.2 Ptfe/bronzo/nbr 15
GIR/P 0300 ORM-324 D.030x045,1x6,3 30-45.1-6.3 Ptfe/bronzo/nbr 15
GIR-PO 031 1 1/4" 4143 D.031,8x042,5x4,2 31.8-42.5-4.2 Ptfe/bronzo/nbr 15
GIR/L 0320 OR-3137 D.032x039,3x3,2 32-39.3-3.2 Ptfe/bronzo/nbr 15
GIR 0330 OR-4150 D.033x043,7x4,2 33-43.7-4.2 Ptfe/bronzo/nbr 15
GIR/L 0340 OR-3143 D.034x041,3x3,2 34-41.3-3.2 Ptfe/bronzo/nbr 15
GIR 0340 OR-4150 D.034x044,7x4,2 34-44.7-4.2 Ptfe/bronzo/nbr 15
GIR 0350 OR-4150 D.035x045,7x4,2 35-45.7-4.2 Ptfe/bronzo/nbr 15
GIR 0350 OR-4150 D.035x045,7x4,2 M12 35-45.7-4.2 Ptfe/bronzo/nbr 15
GIR 0350 OR-4150 VIT D.035x045,7x4,2 35-45.7-4.2 Ptfe/bronzo/nbr 15
GIR/L 0360 OR-3156 D.036x043,3x3,2 36-43.3-3.2 Ptfe/bronzo/nbr 15
GIR 0360 OR-4162 D.036x046,70x4,2 36-46.7-4.2 Ptfe/bronzo/nbr 15
GIR/VETRO 0360-B- D.036x046,7x4,2 36-46.7-4.2 Ptfe/bronzo/nbr 15
GIR 0365 OR-0000 D.036,5x048x4,2 36.5-48-4.2 Ptfe/bronzo/nbr 15
GIR/L 0370 OR-3156 D.037x044,3x3,2 37-44.3-3.2 Ptfe/bronzo/nbr 15
GIR 0370 OR-4162 D.037x047,7x4,2 37-47.7-4.2 Ptfe/bronzo/nbr 15
GIR/L 0380 OR-4162 D.038x048,7x4,2 38-48.7-4.2 Ptfe/bronzo/nbr 15
GIR 0380 OR-6175 D.038x053,10x6,3 38-53.1-6.3 Ptfe/bronzo/nbr 15
GIR-PO 038 1 1/2" 6175 D.038,1x053,5x6,3 38.1-53.5-6.3 Ptfe/bronzo/nbr 15
GIR 0390 OR-6175 D.039x054,1x6,3 39-54.1-6.3 Ptfe/bronzo/nbr 15
GIR/L 0400 OR-4175 D.040x050,7x4,2 40-50.7-4.2 Ptfe/bronzo/nbr 15
GIR 0400 OR-6187 D.040x055,1x6,3 40-55.1-6.3 Ptfe/bronzo/nbr 15
GIR/PU 0400 OR-6187 D.040x055,1x6,3 40-55.1-6.3 Ptfe/bronzo/nbr 15
GIR/L 0420 OR-4187 D.042x052,7x4,2 42-52.7-4.2 Ptfe/bronzo/nbr 15
GIR 0440 OR-6200 D.044x059,1x6,3 44-59.1-6.3 Ptfe/bronzo/nbr 15
GIR/L 0444 OR-0000 D.044,4x050,8x3,62 44.4-50.8-3.62 Ptfe/bronzo/nbr 15
GIR-PO 044 1 3/4" 6200 D.044,5x059,6x6,3 44.5-59.6-6.3 Ptfe/bronzo/nbr 15
GIR/VETRO 0450 /1 4200 D.045x055,7x4,2 45-55.7-4.2 Ptfe/bronzo/nbr 15
GIR/T 0450 D.045x055,7x4,2 LEGGERA 45-55.7-4.2 Ptfe/bronzo/nbr 15
GIR 0450 OR-6200 D.045x060,1x6,3 45-60.1-6.3 Ptfe/bronzo/nbr 15
GIR/P 0450 ORM-0000 D.045x065,5x8,1 45-65.5-8.1 Ptfe/bronzo/nbr 15
GIR 0460 OR-0000 D.046x061,1x6,3 46-61.1-6.3 Ptfe/bronzo/nbr 15
GIR/L 0480 OR-0155 D.048x058,7x4,2 48-58.7-4.2 Ptfe/bronzo/nbr 15
GIR 0500 OR-6225 D.050x065,1x6,3 50-65.1-6.3 Ptfe/bronzo/nbr 15
GIR 0500T10 OR-6225 D.050x065,1x6,3 50-65.1-6.3 Ptfe/bronzo/nbr 15
GIR/T 0500 OR-6225 D.050x065,1x6,3 50-65.1-6.3 Ptfe/bronzo/nbr 15
GIR/P 0500 ORM-58x7 D.050x070,5x8,1 50-70.5-8.1 Ptfe/bronzo/nbr 15
GIR-PO 050 2" 6225 D.050,8x065,9x6,3 50.8-65.9-6.3 Ptfe/bronzo/nbr 15
GIR 0520 OR-6225 D.052x67,10x6,3 52-67.1-6.3 Ptfe/bronzo/nbr 15
GIR 0530 OR-6225 D.053x068,1x6,3 53-68.1-6.3 Ptfe/bronzo/nbr 15
GIR 0550 OR-6237 D.055x070,1x6,3 55-70.1-6.3 Ptfe/bronzo/nbr 15
GIR/L 0560 OR-4237 D.056x066,7x4,2 56-66.7-4.2 Ptfe/bronzo/nbr 15
GIR 0560 OR-6250 D.056x071,1x6,3 56-71.1-6.3 Ptfe/bronzo/nbr 15
GIR/ISO 0560 OR- D.056x071,5x6,3 56-71.5-6.3 Ptfe/bronzo/nbr 15
GIR/L 0570 OR-0165 D.057x067,7x4,2 57-67.7-4.2 Ptfe/bronzo/nbr 15
GIR 0570 OR-6250 D.057x072,1x6,3 57-72.1-6.3 Ptfe/bronzo/nbr 15
GIR-PO/L 057 2"1/4 165-838 D.057,15x067,85x4,2 57.15-67.85-4.2 Ptfe/bronzo/nbr 15
GIR-PO 057 2"1/4 6250 D.057,2x072,3x6,3 57.2-72.3-6.3 Ptfe/bronzo/nbr 15
GIR 0580 OR-6250 D.058x073,1x6,3 58-73.1-6.3 Ptfe/bronzo/nbr 15
GIR/LL 0600 OR-3250 D.060x067,5x3,2 60-67.5-3.2 Ptfe/bronzo/nbr 15
GIR/L 0600 OR-4250 D.060x070,7x4,2 60-70.7-4.2 Ptfe/bronzo/nbr 15
GIR/T 0600 D.060x070,7x4,2 LEGGERA 60-70.7-4.2 Ptfe/bronzo/nbr 15
GIR 0600 OR-6262 D.060x075,1x6,3 60-75.1-6.3 Ptfe/bronzo/nbr 15
GIR/P 0600 ORM-68x7 D.060x080,5x8,1 60-80.5-8.1 Ptfe/bronzo/nbr 15
GIR/VETRO 0630 D.063x073,8x6 63-73.8-6 Ptfe/bronzo/nbr 15
GIR 0630 OR-6275 D.063x078,1x6,3 63-78.1-6.3 Ptfe/bronzo/nbr 15
GIR/P 0630 ORM-70x7 D.063x083,5x8,1 63-83.5-8.1 Ptfe/bronzo/nbr 15
GIR-PO 063 2"1/2 6275 D.063,5x078,6x6,3 63.5-78.6-6.3 Ptfe/bronzo/nbr 15
GIR 0650 OR-6275 D.065x080,1x6,3 65-80.1-6.3 Ptfe/bronzo/nbr 15
GIR/VETRO 0650 /1 D.065x080,1x6,3 65-80.1-6.3 Ptfe/bronzo/nbr 15
GIR/VETRO 0650 D.065x083x6,4 65-83-6.4 Ptfe/bronzo/nbr 15
GIR/P 0650 ORM-70x7 D.065x085,5x8,1 65-85.5-8.1 Ptfe/bronzo/nbr 15
GIR 0680 OR-6287 D.068x083,1x6,3 68-83.1-6.3 Ptfe/bronzo/nbr 15
GIR/L 0700 OR-4300 D.070x080,7x4,2 70-80.7-4.2 Ptfe/bronzo/nbr 15
GIR 0700 OR-6300 D.070x085,1x6,3 70-85.1-6.3 Ptfe/bronzo/nbr 15
GIR/VETRO 0700 D.070x085,1x6,3 70-85.1-6.3 Ptfe/bronzo/nbr 15
GIR/P 0700 ORM-79x7 D.070x090,5x8,1 70-90.5-8.1 Ptfe/bronzo/nbr 15
GIR/L 0720 OR-0000 D.072x082,7x4,2 72-82.7-4.2 Ptfe/bronzo/nbr 15
GIR 0740 OR-6312 D.074,12x089,3x6,4 74.12-89.3-6.4 Ptfe/bronzo/nbr 15
GIR/L 0750 OR-4312 D.075x085,7x4,2 75-85.7-4.2 Ptfe/bronzo/nbr 15
GIR/P 0750 OR D.075x095,5x8,1 75-95.5-8.1 Ptfe/bronzo/nbr 15
GIR-PO 076 3" 181 D.076,2x091,3x6,3 76.2-91.3-6.3 Ptfe/bronzo/nbr 15
GIR/L 0800 OR-4337 D.080x090,7x4,2 80-90.7-4.2 Ptfe/bronzo/nbr 15
GIR 0800 OR-6337 D.080x095,1x6,3 80-95.1-6.3 Ptfe/bronzo/nbr 15
GIR/T 0800 OR0000 D.080x095,1x6,3 80-95.1-6.3 Ptfe/bronzo/nbr 15
GIR/P 0800 OR88X7 D.080x100,5x8,1 80-100.5-8.1 Ptfe/bronzo/nbr 15
GIR 0810 OR-6350 D.081x096,1x6,3 81-96.1-6.3 Ptfe/bronzo/nbr 15
GIR/L 0820 OR-4337 D.082x092,7x4,2 82-92.7-4.2 Ptfe/bronzo/nbr 15
GIR-PO 082/1 3"1/4 D.082,5x098,2x6,27 82.55-98.2-6.27 Ptfe/vetro/nbr 15
GIR/L 0830 OR-4350 D.083x093,7x4,2 83-93.7-4.2 Ptfe/bronzo/nbr 15
GIR/T/L 0830 OR-0000 D.083x093,7x4,2 83-93.7-4.2 Ptfe/bronzo/nbr 15
GIR/T 0830 OR-6350 D.083x098,5x6,3 83-98.5-6.3 Ptfe/bronzo/nbr 15
GIR/L 0850 OR-4350 D.085x095,7x4,2 85-95.7-4.2 Ptfe/bronzo/nbr 15
GIR/T 0850 OR-6362 D.085x100,1x6,3 85-100.1-6.3 Ptfe/bronzo/nbr 15
GIR/P 0850 ORM.92x7 D.085x105,5x8,1 85-105.5-8.1 Ptfe/bronzo/nbr 15
GIR/L 0860 OR 90X3,5 D.086x096,7x4,2 86-96.7-4.2 Ptfe/bronzo/nbr 15
GIR-PO 088 3"1/2 D.088,9x104,1x6,3 88.9-104.1-6.3 Ptfe/bronzo/nbr 15
GIR/L 0900 OR-4375 D.090x100,7x4,2 90-100.7-4.2 Ptfe/bronzo/nbr 15
GIR 0900 OR-6375 D.090x105,1x6,3 90-105.1-6.3 Ptfe/bronzo/nbr 15
GIR/P 0900 OR-98x7 D.090x110,5x8,1 90-110.5-8.1 Ptfe/bronzo/viton 15
GIR/P 0950 ORM.105x7 D.095x115,5x8,1 95-115.5-8.1 Ptfe/bronzo/nbr 15
GIR 0980 OR-0000 D.098x113,1x6,3 98-113.1-6.3 Ptfe/bronzo/nbr 15
GIR/L 1000 OR-4412 D.100x110,7x4,2 100-110.7-4.2 Ptfe/bronzo/nbr 15
GIR 1000 OR-6425 D.100x115,1x6,3 100-115.1-6.3 Ptfe/bronzo/nbr 15
GIR 1000 OR-6425 VIT D.100x115,1x6,3 100-115.1-6.3 Ptfe/bronzo/nbr 15
GIR/VETRO 1000 OR-6412 D.100x115,1x6,3 100-115.1-6.3 Ptfe/bronzo/nbr 15
GIR/P 1000 ORM-108x7 D.100x120,5x8,1 100-120.5-8.1 Ptfe/bronzo/nbr 15
GIR-PO 101,6-4" D.101,6x122,68x8,13 101.6-122.68-8.13 Ptfe/bronzo/viton 15
GIR 1020 OR-6425 D.102x117,1x6,3 102-117.1-6.3 Ptfe/bronzo/nbr 15
GIR 1050 OR-6437 D.105x120,1x6,3 105-120.1-6.3 Ptfe/bronzo/nbr 15
GIR/P 1050 OR-0197 D.105x125,5x8,1 105-125.5-8.1 Ptfe/bronzo/nbr 15
GIR 1080 OR-6450 D.108x123,1x6,3 108-123.1-6.3 Ptfe/bronzo/nbr 15
GIR/L 1100 OR-4450 D.110x120,7x4,2 110-120.7-4.2 Ptfe/bronzo/nbr 15
GIR 1100 OR-0350 D.110x125,1x6,3 110-125.1-6.3 Ptfe/bronzo/nbr 15
GIR/P 1100 OR-8475 D.110x130,5x8,1 110-130.5-8.1 Ptfe/bronzo/nbr 15
GIR 1120 OR-0350 D.112x127,10x6,3 112-127.1-6.3 Ptfe/bronzo/nbr 15
GIR 1140 OR-0351 D.114,3x129,4x6,3 114.3-129.4-6.3 Ptfe/bronzo/nbr 15
GIR/L 1150 OR-4475 D.115x125,7x4,2 115-125.7-4.2 Ptfe/bronzo/nbr 15
GIR/P 1150 OR-204 D.115x135,5x8,1 115-135.5-8.1 Ptfe/bronzo/nbr 15
GIR/L 1170 OR-4475 D.117x127,7x4,2 117-127.7-4.2 Ptfe/bronzo/nbr 15
GIR/L/L 1200 OR-3500 D.120x127,3x3,2 120-127.3-3.2 Ptfe/bronzo/nbr 15
GIR/L 1200 OR-4487 D.120x130,7x4,2 120-130.7-4.2 Ptfe/bronzo/nbr 15
GIR/P 1200 OR-8512 D.120x140,5x8,1 120-140.5-8.1 Ptfe/bronzo/nbr 15
GIR/L 1250 OR-4512 D.125x135,7x4,2 125-135.7-4.2 Ptfe/bronzo/nbr 15
GIR/P 1250 OR-8525 D.125x145,5x8,1 125-145.5-8.1 Ptfe/bronzo/nbr 15
GIR 1270 OR-355 D.127x142,1x6,3 127-142.1-6.3 Ptfe/bronzo/nbr 15
GIR/P 1300 OR-8550 D.130x150,5x8,1 130-150.5-8.1 Ptfe/bronzo/nbr 15
GIR/P 1300/S OR-0000 D.130x138x9 130-138-9 Ptfe/bronzo/nbr 15
GIR 1320 OR-0213 D.132x147,1x6,3 132-147.1-6.3 Ptfe/bronzo/nbr 15
GIR/L 1350 OR-4550 D.135x145,7x4,2 135-145.7-4.2 Ptfe/bronzo/nbr 15
GIR 1350 OR-0358 D.135x150,1x6,3 135-150.1-6.3 Ptfe/bronzo/nbr 15
GIR 1370 OR-0000 D.137x152,1x6,3 137-152.1-6.3 Ptfe/bronzo/nbr 15
GIR 1400 OR-0359 D.140x155,1x6,3 140-155.1-6.3 Ptfe/bronzo/nbr 15
GIR/T 1400 D.140x155,1x6,3 140-155.1-6.3 Ptfe/bronzo/nbr 15
GIR/P 1400 OR-8587 D.140x160,5x8,1 140-160.5-8.1 Ptfe/bronzo/nbr 15
GIR/L 1500 OR-4600 D.150x160,7x4,2 150-160.7-4.2 Ptfe/bronzo/nbr 15
GIR/P 1500 OR-8625 D.150x170,5x8,1 150-170.5-8.1 Ptfe/bronzo/nbr 15
GIR 1520 OR-0000 D.152x167,1x6,3 152-167.1-6.3 Ptfe/bronzo/nbr 15
GIR/P 1600 OR-8675 D.160x180,5x8,1 160-180.5-8.1 Ptfe/bronzo/nbr 15
GIR 1625 OR-0000 D.162,5x177,6x6,3 162.5-177.6-6.3 Ptfe/bronzo/nbr 15
GIR/T 1640 OR-0000 D.164x174,7x4,2 164-174.7-4.2 Ptfe/bronzo/nbr 15
GIR 1650 OR-6670 D.165x180,1x6,3 165-180.1-6.3 Ptfe/bronzo/nbr 15
GIR 1730 OR-6700 D.173x188,1x6,3 173-188.1-6.3 Ptfe/bronzo/nbr 15
GIR 1750 OR-6720 D.175x190,1x6,3 175-190.1-6.3 Ptfe/bronzo/nbr 15
GIR/L 1800 OR-4725 D.180x190,7x4,2 180-190.7-4.2 Ptfe/bronzo/nbr 15
GIR 1800 OR-6720 D.180x195,1x6,3 180-195.1-6.3 Ptfe/bronzo/nbr 15
GIR/P 1800 OR-8750 D.180x200,5x8,1 180-200.5-8.1 Ptfe/bronzo/nbr 15
GIR 1855 OR-0000 D.185,5x200,5x6,3 185.5-200.5-6.3 Ptfe/bronzo/nbr 15
GIR/L 1900 OR-4775 D.190x200,7x4,2 190-200.7-4.2 Ptfe 15
GIR 1900 OR-6775 D.190x205,1x6,3 190-205.1-6.3 Ptfe/bronzo/nbr 15
GIR/P 1900 OR-8775 D.190x210,5x8,1 190-210.5-8.1 Ptfe/bronzo/nbr 15
GIR 1950 OR-6775 D.195x210,1x6,3 195-210.1-6.3 Ptfe/bronzo/nbr 15
GIR/L 2000 OR-6795 D.200x215,1x6,3 200-215.1-6.3 Ptfe/bronzo/nbr 15
GIR 2000 OR-8800 D.200x220,5x8,1 200-220.5-8.1 Ptfe/bronzo/nbr 15
GIR 2032 OR-8850 D.203,2x223,7x8,1 203.2-223.7-8.1 Ptfe/bronzo/nbr 15
GIR/L 2100 OR-6850 D.210x225,1x6,3 210-225.1-6.3 Ptfe/bronzo/nbr 15
GIR/T 2100 OR-8875 D.210x230,5x8,1 210-230.5-8.1 Ptfe/bronzo/nbr 15
GIR 2130 OR-8875 D.213x233,5x8,1 213-233.5-8.1 Ptfe/bronzo/nbr 15
GIR/L 2200 OR-6895 D.220x235,5x6,3 220-235.5-6.3 Ptfe/bronzo/nbr 15
GIR 2200 OR-8900 D.220x240,5x8,1 220-240.5-8.1 Ptfe/bronzo/nbr 15
GIR/T 2200 OR-8900 D.220x240,5x8,1 220-240.5-8.1 Ptfe/bronzo/nbr 15
GIR 2286 OR-8925 D.228,6x249,6x8,1 228.6-249.6-8.1 Ptfe/bronzo/nbr 15
GIR/L 2300 OR-6945 D.230x245,5x6,3 230-245.5-6.3 Ptfe/bronzo/nbr 15
GIR/T 2350 OR-8975 D.235x255,5x8,1 235-255.5-8.1 Ptfe/bronzo/nbr 15
GIR/PU 2480 OR-0000 D.248x268,5x8,1 248-268.5-8.1 Ptfe/bronzo/nbr 15
GIR/L 2500 OR-6995 D.250x265,1x6,3 250-265.1-6.3 Ptfe/bronzo/viton 15
GIR 2500 OR-81000 D.250x270,5x8,1 250-270.5-8.1 Ptfe/bronzo/nbr 15
GIR/L 2560 OR-61050 D.256x271,1x6,3 256-271.1-6.3 Ptfe/bronzo/nbr 15
GIR 2630 OR-81100 D.263x287x8,1 263-287-8.1 Ptfe/bronzo/nbr 15
GIR 2650 OR-81100 D.265x289x8,1 265-289-8.1 Ptfe/bronzo/nbr 15
GIR 2700 OR-81100 D.270x294,0x8,1 270-294-8.1 Ptfe/bronzo/nbr 15
GIR 2750 OR-0000 D.275x299x8,1 275-299-8.1 Ptfe/bronzo/nbr 15
GIR 2800 OR-81150 D.280x304x8,10 280-304-8.1 Ptfe/bronzo/nbr 15
GIR 2850 OR-81150 D.285x309x8,10 285-309-8.1 Ptfe/bronzo/nbr 15
GIR 2900 OR-81200 D.290x314x8,10 290-314-8.1 Ptfe/bronzo/nbr 15
GIR 3050 OR-81250 D.305x329x8,10 305-329-8.1 Ptfe/bronzo/nbr 15
GIR 3100 OR-81250 D.310x334x8,10 310-334-8.1 Ptfe/bronzo/nbr 15
GIR 3200 OR-81300 D.320x344x8,10 320-344-8.1 Ptfe/bronzo/nbr 15
GIR 3300 OR-81350 D.330x354x8,10 330-354-8.1 Ptfe/bronzo/nbr 15
GIR 3550 OR-81450 D.355x379x8,10 355-379-8.1 Ptfe/bronzo/nbr 15
GIR 3600 OR-81450 D.360x384x8,10 360-384-8.1 Ptfe/bronzo/nbr 15
GIR 3650 OR-81500 D.365x389x8,10 365-389-8.1 Ptfe/bronzo/nbr 15
GIR 3800 OR-81550 D.380x404x8,10 380-404-8.1 Ptfe/bronzo/nbr 15
GIR/T 3800 OR-81550 D.380x404x8,1 380-404-8.1 Ptfe/bronzo/nbr 15
GIR 3900 OR-81600 D.390x414x8,10 390-414-8.1 Ptfe/bronzo/nbr 15
GIR 3950 OR-81600 D.395x419x8,10 395-419-8.1 Ptfe/bronzo/nbr 15
GIR 4000 OR-81600 D.400x424x8,10 400-424-8.1 Ptfe/bronzo/nbr 15
GIR/A 4000 OR-81600 D.400x424x8,10 400-424-8.1 Ptfe/bronzo/nbr 15
GIR 4250 OR-00000 D.425x449x8,10 425-449-8.1 Ptfe/bronzo/nbr 15
GIR 4270 OR-437x7 D.427x451x8,10 427-451-8.1 Ptfe/bronzo/nbr 15
GIR 4400 OR-81750 D.440x464x8,10 440-464-8.1 Ptfe/bronzo/nbr 15
GIR 4700 OR-00000 D.470x494x8,10 470-494-8.1 Ptfe/bronzo/nbr 15
GIR 4770 OR-00000 D.477x501x8,10 477-501-8.1 Ptfe/bronzo/nbr 15
GIR 4800 OR-81950 D.480x504x8,10 480-504-8.1 Ptfe/bronzo/nbr 15
GIR/T 4800 OR-81950 D.480x504x8,1 480-504-8.1 Ptfe/bronzo/nbr 15
GIR 5000 OR-82000 D.500x524x8,10 500-524-8.1 Ptfe/bronzo/nbr 15
GIR 5100 OR-82100 D.510x534x8,10 510-534-8.1 Ptfe/bronzo/nbr 15
GIR 5300 OR-82200 D.530x554x8,10 530-554-8.1 Ptfe/bronzo/nbr 15
GIR 5400 OR-82200 D.540x564x8,10 540-564-8.1 Ptfe/bronzo/nbr 15
GIR 5500 OR-82200 D.550x574x8,10 550-574-8.1 Ptfe/bronzo/nbr 15
GIR 6000 OR-82400 D.600x624x8,10 600-624-8.1 Ptfe/bronzo/nbr 15
GIR 6200 OR-82500 D.620x644x8,10 620-644-8.1 Ptfe/bronzo/nbr 15
GIR 6400 OR- D.640x664x8,10 640-664-8.1 Ptfe/bronzo/nbr 15
GIR 6800 D.680x707,37x9,5 ORM 693x8,4 680-707.37-9.5 Ptfe/bronzo/nbr 15
GIR 7000 ORM.713x8,4 D.700x727,3x9,5 700-727.3-9.5 Ptfe/bronzo/nbr 15
GIR 7600 ORM.773x8,4 D.760x787,3x9,5 760-787.3-9.5 Ptfe/bronzo/nbr 15
GIR 8140 OR-00000 D.814x841,3x9,5 814-841.3-9.5 Ptfe/bronzo/nbr 15
GIR 9600 OR- D.930x957,3x9,5 930-957.3-9.5 Ptfe/vetro/nbr 15
GIR 9600 OR- D.960x987,3x9,5 960-987.3-9.5 Ptfe/vetro/nbr 15
GIR 9700 OR- D.970x997,30x9,5 970-997.3-9.5 Ptfe/vetro/nbr 15
GIR 9750 ORM.988x8,4 D.975x1002,3x9,5 975-1002.3-9.5 Ptfe/vetro/nbr 15
GIR/L 1030 D.1030x1057,3x9,5 1030-1057-9.5 Ptfe/vetro/nbr 15
GIR 10850 D.1085x1123x13,8 1085-1123-13.8 Ptfe/vetro/nbr 15
GIR 11750 D.1175x1202,3x9,5 1175-1202-9.5 Ptfe/vetro/nbr 15
GIR 12450 D.1245x1283x913,8 1245-1283-13.8 Ptfe/vetro/nbr 15

x
The website uses cookies | For more details access Terms & Conditions. I accept
