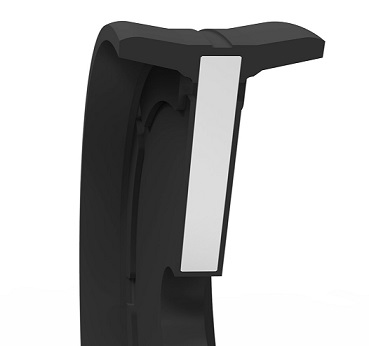

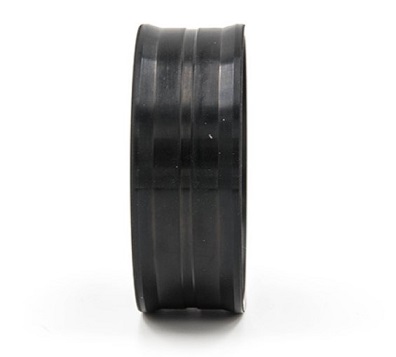

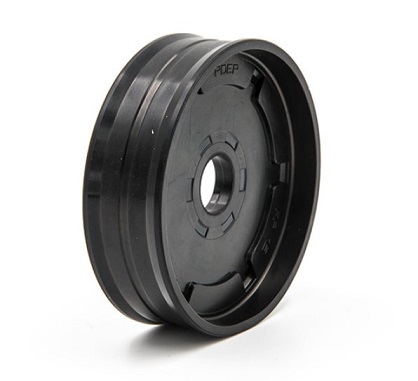

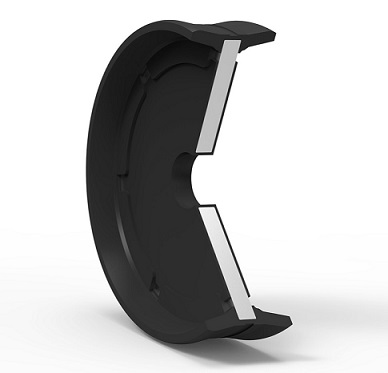

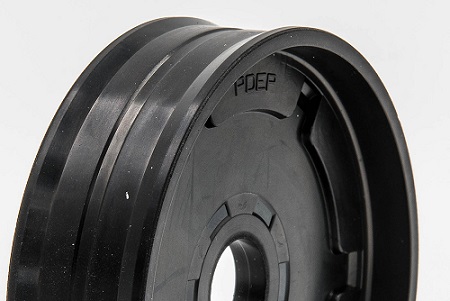

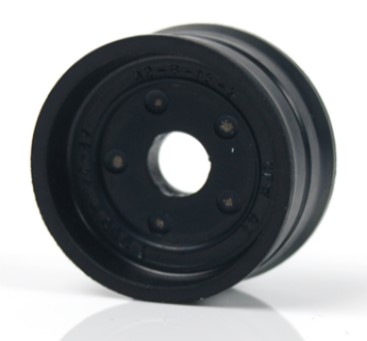

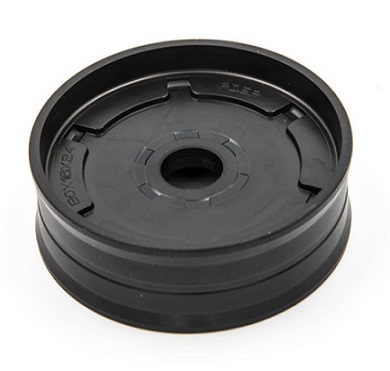

PDEP

|Description: |Material: NBR. |Temperature: - 30°C + 100°C |Pressure: = 16 bar |Speed: = 1 m/s |Material: VITON. |Temperature: - 20°C + 200°C |Pressure: = 16 bar |Speed: = 1 m/s

Category: PNEUMATIC PISTON SEALS, Subcategory

Product Description

|Description: |Material: NBR. |Temperature: - 30°C + 100°C |Pressure: = 16 bar |Speed: = 1 m/s |Material: VITON. |Temperature: - 20°C + 200°C |Pressure: = 16 bar |Speed: = 1 m/s

Additional information

Name Size Materials Speed Stock
K57-012 D.012x004,5x6 4.5-12-6 Nbr 1
K25-020 PDEP D.020x005,2x8 5.2-20-8 Nbr 1
K57-20 D.020x006x7,5 6-20-7.5 Nbr 1
K25-028 PDEP D.028,58x006,35x12,7 6.35-28.58-12.7 Nbr 1
CB28112 T-DUO MANCHET P D.038,10x006,35x12,7 6.35-38.1-12.7 Nbr 1
K25-025/2 PDEP D.025,4x006,35x12,7 6.35-25.4-12.7 Nbr 1
K25-044 PDEP D.044,45x006,35x14,28 6.35-44.45-14.28 Nbr 1
K25-031 PDEP D.031,75x006,35x14,29 6.35-31.75-14.29 Nbr 1
K25-034 D.034,93x006,35x14,3 6.35-34.93-14.3 Nbr 1
K57-025 D.025x007x8,8 7-25-8.8 Nbr 1
K25-025 PDEP D.025x008x12 8-25-12 Nbr 1
PDEP 025 001801 D.025x008x12 8-25-12 Nbr 1
K25-026 PDEP D.026x008x12 8-26-12 Nbr 1
TDUOP-25 112175 D.025x008x12 8-25-12 Nbr 1
K25-032 PDEP D.032x008x15 8-32-15 Nbr 1
PDEP 032 001778 D.032x008x15 8-32-15 Nbr 1
K25-035 PDEP D.035x008x15 8-35-15 Nbr 1
TDUOP-35 125373 D.035x008x015 8-35-15 Nbr 1
K25-032 VITON PDEP D.032x8x15 8-32-15 Viton 1
K25-036 PDEP D.036x008x15 8-36-15 Nbr 1
TDUOP-32 112176 D.032x008x15 8-32-15 Nbr 1
VIT PDEP 032 001778 D.032x008x15 8-32-15 Viton 1
TDUOP-32-37 406239 D.032x008x15 8-32-20 Nbr 1
K58-032 PU D.032x008,1x14 8.1-32-14 Pu 1
K58-040 PU D.040x008,1x15 8.1-40-15 Pu 1
CB28200 T-DUO MANCHET P D.050,80x009,53x14,28 9.53-50.8-14.28 Nbr 1
K25-050/7 PDEP D.050,8x009,53x015,88 9.53-50.8-15.88 Nbr 1
K25-057 PDEP D.057,15x009,53x15,88 9.53-57.15-15.88 Nbr 1
K25-060/1 PDEP D.060,33x009,53x15,88 9.53-60.33-15.88 Nbr 1
K25-063/4 PDEP D.063,5x009,53x15,88 9.53-63.5-15.88 Nbr 1
K25-069 PDEP D.069,85x009,53x19,05 9.53-69.85-19.05 Nbr 1
K25-073 PDEP D.073,03x009,53x19,05 9.53-73.03-19.05 Nbr 1
VITON K57-050 D.050x010x14 10-50-14 Nbr 1
PDEP 040 001779 D.040x010x18 10-40-18 Nbr 1
K25-040 PDEP D.040x010x18 10-40-18 Nbr 1
PDEP 050 001783 D.050x010x18 10-50-18 Nbr 1
K25-050 PDEP D.050x010x18 10-50-18 Nbr 1
K25-040 VITON PDEP D.040x010x018 10-40-18 Viton 1
K25-050 VITON PDEP D.050x010x018 10-50-18 Viton 1
TDUOP-40 112177 D.040x010x18 10-40-18 Nbr 1
TDUOP-40-68 12006216 D.040x010x18 10-40-18 Nbr 1
TDUOP-40-71 406241 D.040x010x18 10-40-18 Nbr 1
TDUOP-50 112178 D.050x010x18 10-50-18 Nbr 1
VIT PDEP 040 001779 D.040x010x18 10-40-18 Viton 1
VIT PDEP 050 D.050x010x18 10-50-18 Viton 1
VITON-TDUOP-40-71 438261 D.040x010x018 10-40-18 Viton 1
VITON-TDUOP-50-79 12006807 D.050x010x018-4 10-50-18 Viton 1
K58-050 PU D.050x010,1x15,5 10.1-50-15.5 Pu 1
K58-060 PU D.060x010,1x19 10.1-60-19 Pu 1
K58-063 PU D.063x010,1x19 10.1-63-19 Pu 1
DP -6312 Z5051 D.063x012x14 NADUOP 12-63-14 Nbr 1
PDEP 060 001634 D.060x012x22 12-60-22 Nbr 1
K25-060 PDEP D.060x012x22 12-60-22 Nbr 1
PDEP 063 001807 D.063x012x22 12-63-22 Nbr 1
K25-063 PDEP D.063x012x22 12-63-22 Nbr 1
K25-070 PDEP D.070x012x22 12-70-22 Nbr 1
PDEP 070 000946 D.070x012x22 12-70-22 Nbr 1
TDUOP-70-67 12013158 D.070x012x022 12-70-22 Nbr 1
K25-063 VITON D.063x012x22 12-63-22 Viton 1
TDUOP 112179 D.063x012x022 12-63-22 Nbr 1
TDUOP-63 112179 D.063x012x22 12-63-22 Nbr 1
TDUOP-70 112180 D.070x012x22 12-70-22 Nbr 1
VIT PDEP 063 001807 D.063x012x22 12-63-22 Viton 1
K25-075/1 PDEP D.075x012x22,5 12-75-22.5 Nbr 1
K25-090/1 D.090x012x24 12-90-24 Nbr 1
TDUOP-90-38 406275 D.090x012x024 12-90-24 Nbr 1
PDEP 065 00107 5 D.065x012x25 12-65-25 Nbr 1
K25-080/3 PDEP D.080x012x25 12-80-25 Nbr 1
K25-100/4 PDEP D.100x012x25 12-100-25 Nbr 1
TDUOP-75 12012705 D.075x012x025 12-75-25 Nbr 1
TDUOP-80-73 12006221 D.080x012x025 12-80-25 Nbr 1
K25-080/3 VITON D.080x012x25 12-80-25 Viton 1
TDUOP-110 12019164 D110x012x025 12-110-25 Nbr 1
TDUOP-85-24 D.085x012x025 12-85-25 Nbr 1
TDUOP-95-13 12014214 D.095x012x025 12-95-25 Nbr 1
K25-190/1 PDEP D.190x012x35 12-190-35 Nbr 1
K58-080 PU D.080x012,1x21,5 12.1-80-21.5 Pu 1
K25-076 PDEP D.076,2x012,70x019,05 12.7-76.2-19.05 Nbr 1
K25-082 PDEP D.082,55x012,7x19,05 12.7-82.55-19.05 Nbr 1
K25-088 PDEP D.088,9x012,7x22,23 12.7-88.9-19.05 Nbr 1
K25-101 D.101,6x012,7x22,23 12.7-101.6-22.23 Nbr 1
K25-107 PDEP D.107,95x012,7x22,23 12.7-107.95-22.23 Nbr 1
K25-095 D.095,25x012,7x22,23 12.7-95.25-22.23 Nbr 1
TDUOP-63-17 406246 D.063x014x022 14-63-22 Nbr 1
TDUOP-80-77 406250 D.080x014x025 14-80-25 Nbr 1
VITON-TDUOP-080-77 12006810 D.080x014x25 14-80-25 Viton 1
K25-062 PDEP D.062x015x22 15-62-22 Nbr 1
K25-075 PDEP D.075x015x22 15-75-22 Nbr 1
K57-080 D.080x016x16 16-80-16 Nbr 1
K25-050/2 PDEP D.050x016x20,5 16-50-20.5 Nbr 1
PDEP 063 /1 001773 D.063x016x22 16-63-22 Nbr 1
TDUOP-63-18 406248 D.063x016x022 16-63-22 Nbr 1
VIT PDEP 063/1 D.063x016x22 16-63-22 Viton 1
K25-080/4 PDEP D.080x016x22,5 16-80-22.5 Nbr 1
PDEP 080 001754 D.080x016x24 16-80-24 Nbr 1
VIT PDEP 080 D.080x016x24 16-80-24 Viton 1
VITON-TDUOP-080 12006811 D.080x016x25 16-80-24 Viton 1
K25-080 PDEP D.080x016x25 16-80-25 Nbr 1
K25-090 PDEP D.090x016x25 16-90-25 Nbr 1
K25-100 PDEP D.100x016x25 16-100-25 Nbr 1
K25-090 VITON PDEP D.090x016x025 16-90-25 Viton 1
K25-102 PDEP D.102x016x25 16-102-25 Nbr 1
TDUOP-100 112181 D.100x016x25 16-100-25 Nbr 1
TDUOP-80 112239 D.080x016x25 16-80-25 Nbr 1
TDUOP-80-78 406266 D.080x016x025 16-80-25 Nbr 1
VITON K25-80 D.080x016x25 16-80-25 Viton 1
K25-260 PDEP D.260x016x35 16-260-35 Nbr 1
K58-100 PU D.100x017,1x25,5 17.1-100-25.5 Pu 1
PDEP 100-/1 D.100x018x24 K25 18-100-24 Nbr 1
K25-110 PDEP D.110x018x25 18-110-25 Nbr 1
TDUOP-100-69 406277 D.100x018x25 18-100-25 Nbr 1
K25-100/10 D.100x018x25 18-100-25 Nbr 1
VITON-TDUOP-100-69 12006812 D.100x018x25 18-100-25 Viton 1
TDUOP-125-51 12006586 D.125x018x30 18-125-30 Nbr 1
TDUOP-125-49 12006223 D.125x018x30 18-125-30 Nbr 1
K25-125/3 VITON PDEP D.125x018x30 18-125-30 Viton 1
K25-125/3 PDEP D.125x018x30 18-125-30 Nbr 1
MPP D.125x018x30 18-125-30 Nbr/metallo 1
K25-114 PDEP D.114,3x019,05x22,23 19.05-114.3-22.23 Nbr 1
K25-127 PDEP D.127x019,05x25,4 19.05-127-25.4 Nbr 1
K25-146 D.146,05x019,05x25,4 19.05-146.05-25.4 Nbr 1
K25-152 PDEP D.152,4x019,05x25,4 19.05-152.4-25.4 Nbr 1
K25-165 PDEP D.165,1x019,05x25,4 19.05-165.1-25.4 Nbr 1
K25-080/5 D.080x020x22,5 20-80-22.5 Nbr 1
K25-100/1 PDEP D.100x020x25 20-100-25 Nbr 1
PDEP 100 001780 D.100x020x26 20-100-26 Nbr 1
K25-100/6 PDEP D.100x020x26 20-100-26 Nbr 1
PDEP 125 001784 D.125x020x26 20-125-26 Nbr 1
K25-125/1 PDEP D.125x020x26 20-125-26 Nbr 1
VIT PDEP 100 001780 D.100x020x26 20-100-26 Viton 1
PDEP 125/DK C522 Z5050 D.125x020x28 20-125-28 Nbr 1
K25-130 PDEP D.130x020x29 20-130-29 Nbr 1
PDEP 160 006224 D.160x020x30 20-160-30 Nbr 1
K25-125 PDEP D.125x020x30 20-125-30 Nbr 1
K25-140 PDEP D.140x020x30-140 20-140-30 Nbr 1
K25-150 PDEP D.150x020x030 20-150-30 Nbr 1
K25-160/3 PDEP D.160x020x30 20-160-30 Nbr 1
K25-190 PDEP D.190x020x30 20-190-30 Nbr 1
TDUOP-160-23 12006224 D.160x020x30 20-160-30 Nbr 1
TDUOP-125 112182 D.125x020x30 20-125-30 Nbr 1
TDUOP-140 112183 D.140x020x30 20-140-30 Nbr 1
VITON-TDUOP-160-23 12006815 D.160x020x30 20-160-30 Viton 1
K25-200/2 PDEP D.200x020x35 20-200-35 Nbr 1
PDEP 090 D.090x024x24 K25 24-90-24 Nbr 1
PDEP 160 001917 D.160x024x30 24-160-30 Nbr 1
TDUOP-200-25 406288 D.200x024x30 24-200-30 Nbr 1
K25-200/4 PDEP D.200x020x30 24-200-30 Nbr 1
TDUOP-160-25 406282 D.160x024x30 24-160-30 Nbr 1
VITON K25-200/3 D.200x024x30 24-200-30 Viton 1
PDEP 160/1 001785 D.160x027x30 27-160-30 Nbr 1
TDUOP-200-24 12006225 D.200x027x30 27-200-30 Nbr 1
VIT PDEP 160 001785 D.160x027x30 27-160-30 Viton 1
VITON-TDUOP-200-24 12006816 D.200x027x30 27-200-30 Viton 1
K25-160 PDEP D.160x027x31 27-160-31 Nbr 1
K25-180 PDEP D.180x027x31 27-180-31 Nbr 1
VITON K25-160 D.160x27x31 27-160-31 Viton 1
PDEP 200 001755 D.200x027x35 27-200-35 Nbr 1
K25-200 PDEP D.200x027x35 27-200-35 Nbr 1
K25-200 VITON D.200x027x35 27-200-35 Viton 1
VIT PDEP 200 001755 D.200x027x35 27-200-35 Viton 1
K25-200/5 PDEP D.200x030x35 30-200-35 Nbr 1
K25-250 PDEP D.250x030x35 30-250-35 Nbr 1
K25-300 D.300x030x35 30-300-35 Nbr 1
K25-177 D.177,8x031,75x28,58 31.75-177.8-28.58 Nbr 1
K25-203 D.203,2x031,75x28,58 31.75-203.2-28.58 Nbr 1
K25-202 PDEP D.202,2x031,75x38,1 31.75-202.2-38.1 Nbr 1
K25-320 PDEP D.320x036x40 36-320-40 Nbr 1
K25-400 PDEP D.400x040x50 40-400-50 Nbr 1
K25-253 PDEP D.253x044,45x41,275 K2 44.45-253-41.27 Nbr 1
