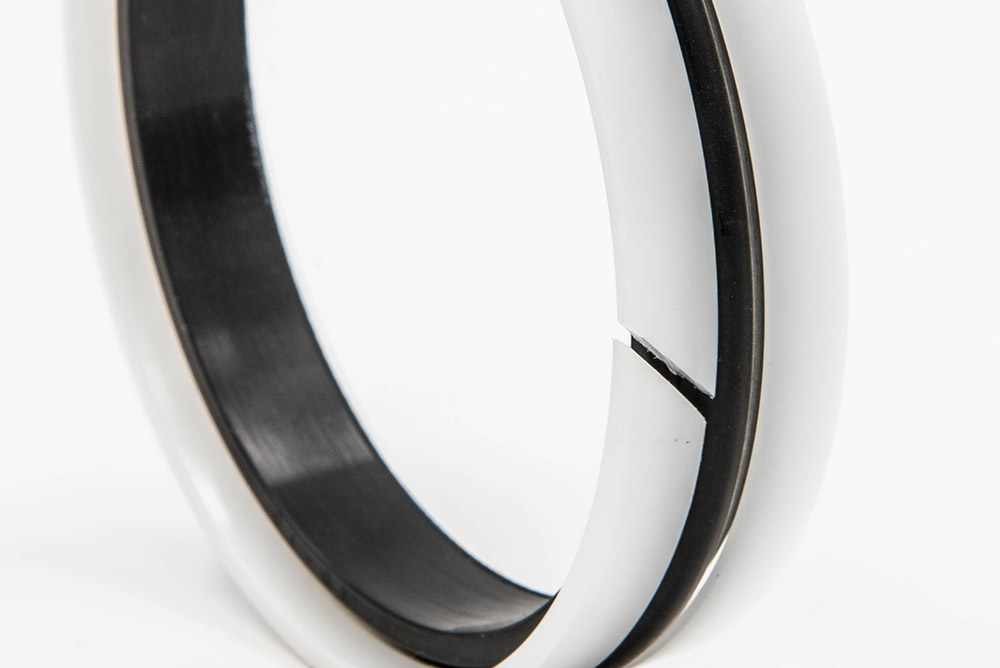

K20

|Description: |Material: Nbr / Pom |Pressure: = 150 bar |Speed: = 0,5 m/s |Temperature: - 30°C + 110°C

Category: Piston Seals, Subcategory

Product Description

|Description: |Material: Nbr / Pom |Pressure: = 150 bar |Speed: = 0,5 m/s |Temperature: - 30°C + 110°C

Additional information

Name Size Materials Speed Stock
K20-025,4-017,45 D.025,4x017,45x8,712 17.45-25.4-8.71 Nbr/pom 0.5
K20-025-017,50 D.025x017,5x8,5 17.5-25-8.5 Nbr/pom 0.5
K20-032-022 D.032x022x11 22-32-11 Nbr/pom 0.5
K20-031,75-023,80 D.031,75x023,8x8,712 23.8-31.75-8.71 Nbr/pom 0.5
K20 038,1-028,57 NBR D.038,1x028,57x11,1 28.57-38.1-11.1 Nbr/pom 0.5
K20-040-030 NBR D.040x030x11 30-40-11 Nbr/pom 0.5
77/M 6111210 D.040x030x11 30-40-11 Nbr/pom/tpe 0.5
K20-044,45-034,92 D.044,45x034,925x11,1 34.93-44.45-11.1 Nbr/pom 0.5
K20-050-040 NBR D.050x040x11 40-50-11 Nbr/pom 0.5
K20-050-041 NBR D.050,8x041,27x11,1 41.27-50.8-11.1 Nbr/pom 0.5
K20-057,15-047,62 D.057,15x047,625x11,1 47.63-57.15-11.1 Nbr/pom 0.5
77 M 6918060 D.060,33x050,8x11,10 50.8-60.33-11.1 Nbr/pom/tpe 0.5
K20-063-053 NBR D.063x053x11 53-63-11 Nbr/pom 0.5
K20-063,50-053,97 D.063,5x053,975x11,1 53.98-63.5-11.1 Nbr/pom 0.5
K20-069,85-060,32 D.069,85x060,325x11,1 60.33-69.85-11.1 Nbr/pom 0.5
K20-076-066 NBR D.076,2x066,67x11,1 66.67-76.2-11.1 Nbr/pom 0.5
K20-080-070 NBR D.080x070x11 65 H.LITE 70-80-11 Nbr/pom 0.5
K20-082-073 NBR D.082,55x073,025x11,11 73.25-82.55-11.11 Nbr/pom 0.5
K20-088-076 NBR D.088,9x076,20x14,27 H.LITE 76.2-88.9-14.27 Nbr/pom 0.5
K20-092-082 D.092x082x11 82-92-11 Nbr/pom 0.5
K20-095,25-082,55 D.095,25x082,55x14,275 82.55-95.25-14.28 Nbr/pom 0.5
K20-100-087 NBR D.100x087x14 65 87-100-14 Nbr/pom 0.5
IDP 400350 D.101,60x088,90x14,27 88.9-101.6-14.27 Nbr/pom 0.5
K20-101-088 D.101,6x088,9x14,275-65/1 H.LITE 88.9-101.6-14.27 Nbr/pom 0.5
K20-114,3-101,6 D.114,3x101,6x14,275 101.6-114.3-14.28 Nbr/pom 0.5
K20-127-111,12 D.127x111,125x17,45 111.13-127-17.45 Nbr/pom 0.5
K20-125-112 NBR D.125x112x14 65 112-125-14 Nbr/pom 0.5
K20-140-124 D.140x124x17,5 124-140-17.5 Nbr/pom 0.5
K20-152,4-133,35 D.152,4x133,35x25,4 133.35-152.4-25.4 Nbr/pom 0.5
K20-160-140 NBR D.160x140x25 65 H.LITE 140-160-25 Nbr/pom 0.5
K20-180-160 D.180x160x25 160-180-25 Nbr/pom 0.5
K20-200-180 D.200x180x25 180-200-25 Nbr/pom 0.5
