SAM - SAL - EDBRO

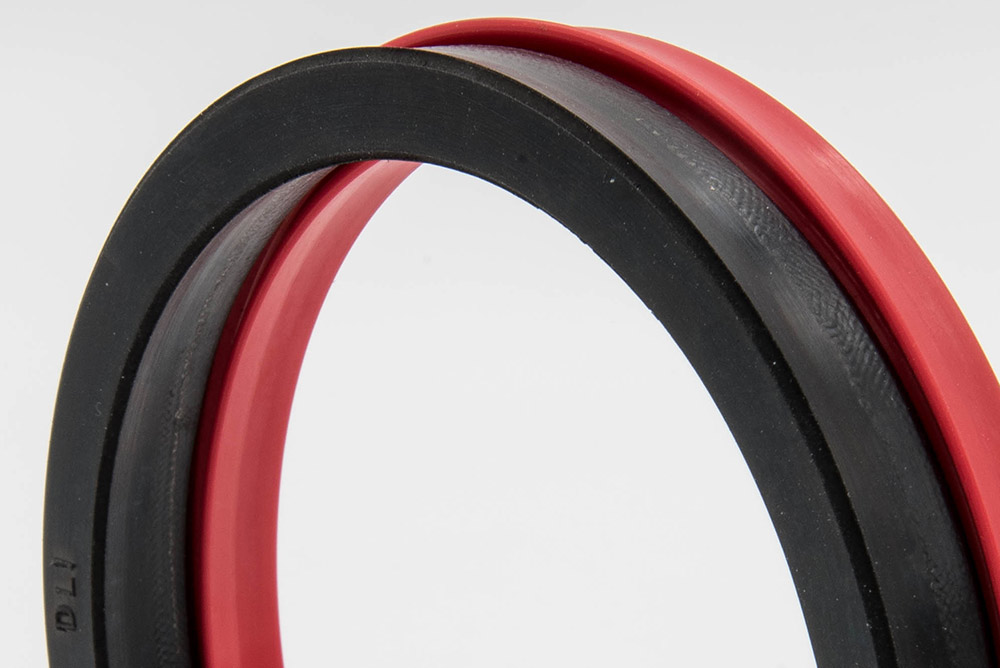

EDBRO seal created for use in telescopic cylinders. EDBRO composed of one Rubbercloth seal and the other POM jointed together. Hydraulic cylinders with EDBRO seal are mounted on earth moving machines such as: KOMATSU, CAT CATERPILLAR, HITACHI, VOLVO, IVECO, CASE, JCB, VENERI, NEW HOLLAND, FAI, KUBOTA ... and many others. Rod seals called EDBRO are interchangeable with other similar seals like. SAM - SAL - SM - RCK - K34 - SGA - S12 - UFN - BR - MUFN. |Description: |Material: Rubbercloth / Pom |Pressure: = 400 bar |Speed: = 0,5 m/s |Temperature: - 35°C + 100°C

Category: Rod Seals, Subcategory

Product Description

EDBRO seal created for use in telescopic cylinders. EDBRO composed of one Rubbercloth seal and the other POM jointed together. Hydraulic cylinders with EDBRO seal are mounted on earth moving machines such as: KOMATSU, CAT CATERPILLAR, HITACHI, VOLVO, IVECO, CASE, JCB, VENERI, NEW HOLLAND, FAI, KUBOTA ... and many others. Rod seals called EDBRO are interchangeable with other similar seals like. SAM - SAL - SM - RCK - K34 - SGA - S12 - UFN - BR - MUFN. |Description: |Material: Rubbercloth / Pom |Pressure: = 400 bar |Speed: = 0,5 m/s |Temperature: - 35°C + 100°C

Additional information

Name Size Materials Speed Stock
SAL 275 D.069,85x081,28x19,05 69.85-81.28-19.05 Nbr/gommatela/pom 0.5
SAL 070 D.070x079x6,10 OL 70-79-6.1 Nbr/gommatela/pom 0.5
SAM D.079x089x12 EDBRO M 79-89-12 Nbr/gommatela/pom 0.5
SAL 350 012-65-131 EDBRO 88.09-101.93-19.05 Nbr/gommatela/pom 0.5
SAL 088,5 D.088,5x096,5x6,10 OL 88.5-96.5-6.1 Nbr/gommatela/pom 0.5
SAL 350 D.088,9x101,93x19,05 88.9-101.93-19.05 Nbr/gommatela/pom 0.5
SAM D.098x108x12 EDBRO M 98-108-12 Nbr/gommatela/pom 0.5
SAM D.105x115x13,5 EDBRO M 105-115-13.5 Nbr/gommatela/pom 0.5
SAL 108,5 D.108,5x116,5x6,10 OL 108.5-116.5-6.1 Nbr/gommatela/pom 0.5
SAL 437 D.110,87x124,15x19,05 110.87-124.15-19.05 Nbr/gommatela/pom 0.5
SAL 437 012-65-143 EDBRO 110.87-124.15-19.05 Nbr/gommatela/pom 0.5
SAM D.117x127x14 EDBRO M 117-127-14 Nbr/gommatela/pom 0.5
SAM D.127x137x13,5 EDBRO M 127-137-13.5 Nbr/gommatela/pom 0.5
SAL 128,5 D.128,5x136,5x6,10 OL 128.5-136.5-6.1 Nbr/gommatela/pom 0.5
SAL 525 D.133,32x149,55x19,68 133.32-149.55-19.68 Nbr/gommatela/pom 0.5
SAL 525 012-65-155 EDBRO 133.32-149.55-19.68 Nbr/gommatela/pom 0.5
SAM D.136x146x14 EDBRO M 136-146-14 Nbr/gommatela/pom 0.5
SAM D.147x157x13 EDBRO M 147-157-13 Nbr/gommatela/pom 0.5
SAL 148,5 D.148,5x156,5x6,10 OL 148.5-156.5-6.1 Nbr/gommatela/pom 0.5
SAM D.155x165x14 EDBRO M 155-165-14 Nbr/gommatela/pom 0.5
SAL 631 D.160,32x174,98x19,05 160.32-174.98-19.05 Nbr/gommatela/pom 0.5
SAL 631 012-65-167 EDBRO 160.32-174.98-19.05 GOMMATELA/POM 0.5
SA 162 D.162x172,60x5,50 HYVA 162-172.6-5.5 GOMMATELA/POM 0.5
SAM D.167x178x14,5 EDBRO M 167-178-14.5 GOMMATELA/POM 0.5
SAL 171,5 D.171,5x179,5x6,10 OL 171.5-179.5-6.1 GOMMATELA/POM 0.5
SAM D.176x188x16 EDBRO M 176-188-16 GOMMATELA/POM 0.5
SAL 731 D.185,72x202,03x19,05 185.72-202.03-19.05 GOMMATELA/POM 0.5
SAL 731 012-65-179 EDBRO 185.72-202.03-19.05 GOMMATELA/POM 0.5
SAM D.188x200x16 EDBRO M 188-200-16 GOMMATELA/POM 0.5
SAM D.198x211x17 EDBRO M 198-211-17 GOMMATELA/POM 0.5
SA 200 D.200x215,2x10,1 GHK 200-215-10.1 GOMMATELA/POM 0.5
SAL 837 D.212,72x228,60x19,05 212.72-228.6-19.05 GOMMATELA/POM 0.5
SAL 943 D.239,69x259,48x44,45 239.69-259.48-44.45 GOMMATELA/POM 0.5
