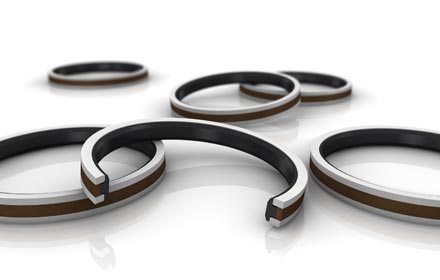

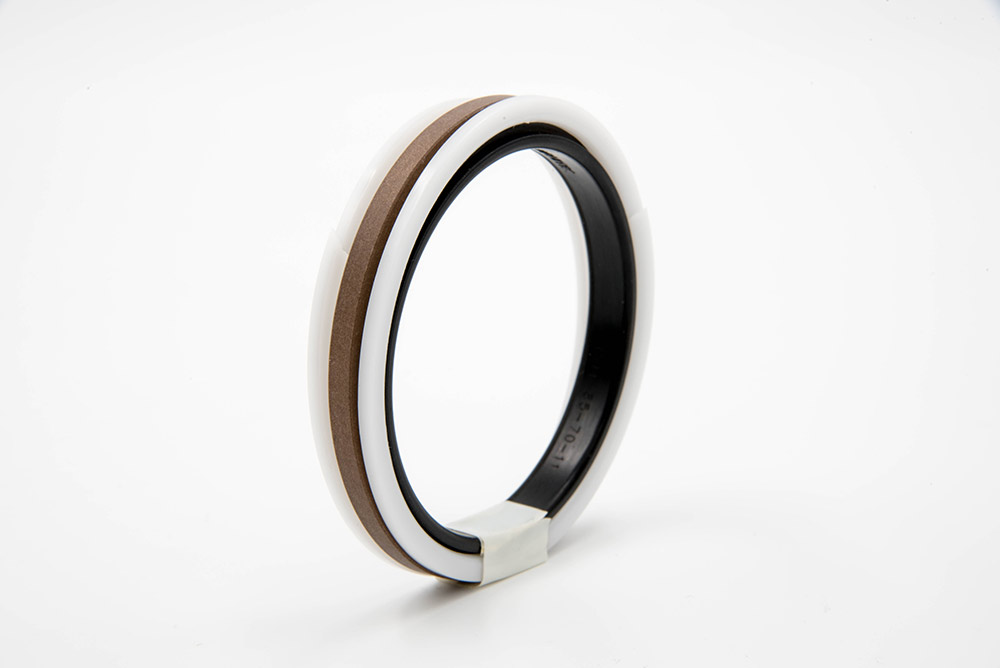

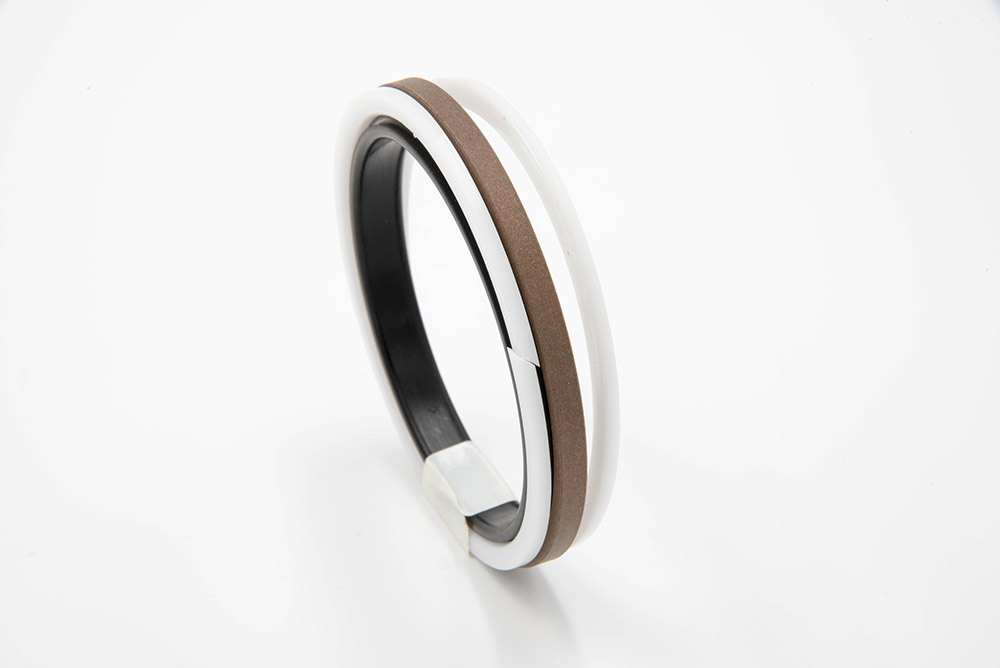

PDH

|Description: |Material: PTFE + BRONZE + NBR |Pressure: = 700 bar |Speed: = 1,5 m/s |Temperature: - 40°C + 130°C with in NBR |Temperature: - 35°C + 200°C with in FKM (VITON)

Category: Piston Seals, Subcategory

Product Description

|Description: |Material: PTFE + BRONZE + NBR |Pressure: = 700 bar |Speed: = 1,5 m/s |Temperature: - 40°C + 130°C with in NBR |Temperature: - 35°C + 200°C with in FKM (VITON)

Additional information

Name Size Materials Speed Stock
730/M 239810 D.040x028x11,5 28-40-11.5 Nbr/ptfe/pom 1.5
PDH 101 D.040x030x8 30-40-8 nbr/Ptfe bronzo/Pom 1.5
PDH 102 D.050x036x9 36-50-9 nbr/Ptfe bronzo/Pom 1.5
735/M 7151000 D.050x036x9 PDH 36-50-9 Nbr/ptfe/pom 1.5
K19-050-036 D.050x036x9 36-50-9 nbr/Ptfe bronzo/Pom 1.5
KHD D.050x036x9 36-50-9 Nbr/ptfe/pom 1.5
PDH 103 D.050x040x8 ISO 40-50-8 nbr/Ptfe bronzo/Pom 1.5
PDH 104 D.055x041x9 41-55-9 nbr/Ptfe bronzo/Pom 1.5
10PHD 5541 D.055x041x9 41-55-9 Nbr/Pom/ptfe bronzo 1.5
K19-055-041 D.055x041x9 41-55-9 nbr/Ptfe bronzo/Pom 1.5
KHD D.055x041x9 41-55-9 Nbr/ptfe/pom 1.5
730/M 2356710 D.060x044x20,4 44-60-20.4 Nbr/ptfe/pom 1.5
PDH 105 D.060x046x9 46-60-9 nbr/Ptfe bronzo/Pom 1.5
K19-060-046 D.060x046x9 46-60-9 nbr/Ptfe bronzo/Pom 1.5
KHD D.060x046x9 46-60-9 Nbr/ptfe/pom 1.5
PHD/P 6046 D.060x046x9 46-60-9 Nbr/ptfe/pom 1.5
PDH 107 D.063x048x11 48-63-11 nbr/Ptfe bronzo/Pom 1.5
K19-063-048 D.063x048x11 48-63-11 nbr/Ptfe bronzo/Pom 1.5
PDH 106 D.060x050x8 50-60-8 nbr/Ptfe bronzo/Pom 1.5
K19-060-050 D.060x050x8 50-60-8 nbr/Ptfe bronzo/Pom 1.5
VITON K19 060-050 D.060x050x8 50-60-8 Viton/Ptfe bronzo/Pom 1.5
VITON PS-17 D.060x050x8 50-60-8 Viton/ptfe/pom 1.5
PDH 109 D.065x050x11 50-65-11 nbr/Ptfe bronzo/Pom 1.5
K19-065-050 D.065x050x11 50-65-11 nbr/Ptfe bronzo/Pom 1.5
10PHD 6550 D.065x050x11 50-65-11 Nbr/gommatela 1.5
KHD D.065x050x11 50-65-11 Nbr/ptfe/pom 1.5
VITON PDH 109 D.065x050x11 50-65-11 Viton/Ptfe bronzo/Pom 1.5
PDH 108 D.063x053x08 ISO 53-63-8 nbr/Ptfe bronzo/Pom 1.5
PDH 110 D.070x055x11 55-70-11 nbr/Ptfe bronzo/Pom 1.5
K19-070-055 D.070x055x11 55-70-11 nbr/Ptfe bronzo/Pom 1.5
KHD D.070x055x11 55-70-11 Nbr/ptfe/pom 1.5
PDH 111 D.070x060x8 60-70-8 nbr/Ptfe bronzo/Pom 1.5
PDH 112 D.075x060x11 60-75-11 nbr/Ptfe bronzo/Pom 1.5
10PHD 7560 D.075x060x11 60-75-11 Ptfe/bronzo/nbr 1.5
K19-075-060 D.075x060x11 60-75-11 nbr/Ptfe bronzo/Pom 1.5
KHD D.075x060x11 60-75-11 Nbr/ptfe/pom 1.5
735/M 7101000 D.076,2x064,05x14,7 64.05-76.2-14.7 Nbr/ptfe/pom 1.5
PDH 113 D.080x065x11 65-80-11 nbr/Ptfe bronzo/Pom 1.5
K19-080-065 D.080x065x11 65-80-11 nbr/Ptfe bronzo/Pom 1.5
KHD D.080x065x11 65-80-11 Nbr/ptfe/pom 1.5
VITON PDH 113 D.080x065x11 65-80-11 Viton/Ptfe bronzo/Pom 1.5
PDH 114 D.080x065x12,5 ISO 65-80-12.5 nbr/Ptfe bronzo/Pom 1.5
PDH 115 D.085x070x11 70-85-11 nbr/Ptfe bronzo/Pom 1.5
K19-085-070 D.085x070x11 70-85-11 nbr/Ptfe bronzo/Pom 1.5
KHD D.085x070x11 70-85-11 Nbr/ptfe/pom 1.5
PDH 116 D.090x075x11 75-90-11 nbr/Ptfe bronzo/Pom 1.5
735/M 7155000 D.090x075x11 PDH 75-90-11 Nbr/ptfe/pom 1.5
K19-090-075 D.090x075x11 75-90-11 nbr/Ptfe bronzo/Pom 1.5
KHD D.090x075x11 75-90-11 Nbr/ptfe/pom 1.5
VITON PDH 116 D.090x075x11 75-90-11 Viton/Ptfe bronzo/Pom 1.5
PDH 117 D.090x075x12,5 75-90-12.5 nbr/Ptfe bronzo/Pom 1.5
K23-F D.088,6x076x8,1 76-88.6-8.1 Nbr/ptfe/pom 1.5
PDH 118 D.095x080x11 80-95-11 nbr/Ptfe bronzo/Pom 1.5
K19-095-080 D.095x080x11 80-95-11 nbr/Ptfe bronzo/Pom 1.5
10PHD 9580 D.095x080x11 80-95-11 Ptfe/bronzo/nbr 1.5
KHD D.095x080x11 80-95-11 Nbr/ptfe/pom 1.5
PDH 119 D.100x085x12,50 ISO 85-100-12.5 nbr/Ptfe bronzo/Pom 1.5
K19-100-085 D.100x085x12,5 85-100-12.5 nbr/Ptfe bronzo/Pom 1.5
KHD D.100x085x12,50 85-100-12.5 Nbr/ptfe/pom 1.5
VITON K19 100-085 D.100x085x12,5 85-100-12.5 Viton/Ptfe bronzo/Pom 1.5
VITON U-K117 MOD 100X85X12,5 L SEDE FPM 85° SH A BROWN + FL2 (PTFE+VETRO+MOS2) 85-100-12.5 Viton 1.5
VITON PS-17 D.100x085x12,5 85-100-12.5 Viton/ptfe/pom 1.5
730/M 2335010 D.100x085x13,5 85-100-13.5 Nbr/ptfe/pom 1.5
K19-105-088 D.105x088x14 88-105-14 nbr/Ptfe bronzo/Pom 1.5
PDH 119/1 D.105x090x12,50 90-105-12.5 nbr/Ptfe bronzo/Pom 1.5
K19-105-090 D.105x090x12,5 90-105-12.5 nbr/Ptfe bronzo/Pom 1.5
KHD D.105x090x12,5 90-105-12.5 Nbr/ptfe/pom 1.5
K19-105-090/1 D.105x090x13,5 90-105-13.5 nbr/Ptfe bronzo/Pom 1.5
K19-105-090/2 D.105x090x14 90-105-14 nbr/Ptfe bronzo/Pom 1.5
PDH 120 D.110x095x12,50 95-110-12.5 nbr/Ptfe bronzo/Pom 1.5
K19-110-095 D.110x095x12,5 95-110-12.5 nbr/Ptfe bronzo/Pom 1.5
KHD D.110x095x12,5 95-110-12.5 Nbr/ptfe/pom 1.5
730/M 2331610 D.110x095x16 95-110-16 Nbr/ptfe/pom 1.5
730/M 2356110 D.115x097x22,5 97-115-22.5 Nbr/ptfe/pom 1.5
PDH 121 D.115x100x12,50 100-115-12.5 nbr/Ptfe bronzo/Pom 1.5
K19-115-100 D.115x100x12,5 100-115-12.5 nbr/Ptfe bronzo/Pom 1.5
KHD D.115x100x12,5 100-115-12.5 Nbr/ptfe/pom 1.5
PDH 123 D.125x102x16 102-125-16 nbr/Ptfe bronzo/Pom 1.5
K19-125-102 D.125x102x16 102-125-16 nbr/Ptfe bronzo/Pom 1.5
KHD D.125x102x16 102-125-16 Nbr/ptfe/pom 1.5
VITON PDH 123 D.125x102x16 102-125-16 Viton/Ptfe bronzo/Pom 1.5
PDH 122 D.120x105x12,50 105-120-12.5 nbr/Ptfe bronzo/Pom 1.5
K19-120-105 D.120x105x12,5 105-120-12.5 nbr/Ptfe bronzo/Pom 1.5
KHD D.120x105x12,5 105-120-12.5 Nbr/ptfe/pom 1.5
VITON K19 120-105 D.120x105x12,5 105-120-12.5 Viton/Ptfe bronzo/Pom 1.5
VITON PS-17 D.120x105x12,5 105-120-12.5 Viton/ptfe/pom 1.5
730/M 2337410 D.120x105x16 105-120-16 Nbr/ptfe/pom 1.5
PDH 125 D.130x107x16,00 107-130-16 nbr/Ptfe bronzo/Pom 1.5
K19-130-107 D.130x107x16 107-130-16 nbr/Ptfe bronzo/Pom 1.5
KHD D.130x107x16 107-130-16 Nbr/ptfe/pom 1.5
VITON PDH 125 D.130x107x16 107-130-16 Viton/Ptfe bronzo/Pom 1.5
K19-125-108 D.125x108x14 108-125-14 nbr/Ptfe bronzo/Pom 1.5
PDH 124 D.125x110x12,50 110-125-12.5 nbr/Ptfe bronzo/Pom 1.5
730/M 2331510 D.125x110x15,8 110-125-15.8 Nbr/ptfe/pom 1.5
K23-F D.124,8x112x8,1 112-124.8-8.1 Nbr/ptfe/pom 1.5
PDH 127 D.135x112x16,00 112-135-16 nbr/Ptfe bronzo/Pom 1.5
K19-135-112 D.135x112x16 112-135-16 nbr/Ptfe bronzo/Pom 1.5
KHD D.135x112x16 112-135-16 Nbr/ptfe/pom 1.5
730/M 2366910 D.130x113x20,5 113-130-20.6 Nbr/ptfe/pom 1.5
PDH 126 D.130x115x12,50 115-130-12.5 nbr/Ptfe bronzo/Pom 1.5
PDH 128 D.140x117x16,00 117-140-16 nbr/Ptfe bronzo/Pom 1.5
K19-140-117 D.140x117x16 117-140-16 nbr/Ptfe bronzo/Pom 1.5
KHD D.140x117x16 117-140-16 Nbr/ptfe/pom 1.5
VITON PDH 128 D.140x117x16 117-140-16 Viton/Ptfe bronzo/Pom 1.5
K19-140-120 D.140x120x18,5 120-140-18.5 nbr/Ptfe bronzo/Pom 1.5
K19-140-121,5 D.140x121,5x19 121.5-140-19 nbr/Ptfe bronzo/Pom 1.5
PDH 130 D.145x122x16 122-145-16 nbr/Ptfe bronzo/Pom 1.5
K19-145-122 D.145x122x16 122-145-16 nbr/Ptfe bronzo/Pom 1.5
PDH 129 D.140x125x12,50 125-140-12.5 nbr/Ptfe bronzo/Pom 1.5
730/M 2329410 D.140x125x16 125-140-16 Nbr/ptfe/pom 1.5
PDH 131 D.150x127x16,00 127-150-16 nbr/Ptfe bronzo/Pom 1.5
K19-150-127 D.150x127x16 127-150-16 nbr/Ptfe bronzo/Pom 1.5
KHD D.150x127x16 127-150-16 Nbr/ptfe/pom 1.5
730/M 2339010 D.150x130x16 130-150-16 Nbr/ptfe/pom 1.5
K19-150-130 D.150x130x18 130-150-18 nbr/Ptfe bronzo/Pom 1.5
K19-155-132 D.155x132x16 132-155-16 nbr/Ptfe bronzo/Pom 1.5
PDH 131/1 D.150x135x12,50 135-150-12.5 nbr/Ptfe bronzo/Pom 1.5
K19-150-135 D.150x135x12,5 135-150-12.5 nbr/Ptfe bronzo/Pom 1.5
730/M 2338210 D.150x135x16 135-150-16 Nbr/ptfe/pom 1.5
PDH 132 D.160x137x16,00 137-160-16 nbr/Ptfe bronzo/Pom 1.5
735/M 7161500 D.160x137x16 PDH 137-160-16 Nbr/ptfe/pom 1.5
K19-160-137 D.160x137x16 137-160-16 nbr/Ptfe bronzo/Pom 1.5
KHD D.160x137x16 137-160-16 Nbr/ptfe/pom 1.5
VITON K19 160-137 D.160x137x16 137-160-16 Viton/Ptfe bronzo/Pom 1.5
VITON PDH 132 D.160x137x16 137-160-16 Viton/Ptfe bronzo/Pom 1.5
K23-F D.159x141x12,1 141-159-12.1 Nbr/ptfe/pom 1.5
K19 160-141.5 D.160x141,5x19 141.5-160-19 nbr/Ptfe bronzo/Pom 1.5
K19-165-142 D.165x142x15,5 142-165-15.5 nbr/Ptfe bronzo/Pom 1.5
PDH 134 D.165x142x16,00 142-165-16 nbr/Ptfe bronzo/Pom 1.5
PDH 133 D.160x145x12,50 145-160-12.5 nbr/Ptfe bronzo/Pom 1.5
K19-160-145 D.160x145x12,5 145-160-12.5 nbr/Ptfe bronzo/Pom 1.5
K19-165-145 D.165x145x17 145-165-17 nbr/Ptfe bronzo/Pom 1.5
730/M 2345510 D.170x145x25 145-170-25 Nbr/ptfe/pom 1.5
PDH 134/1 D.170x147x16 147-170-16 nbr/Ptfe bronzo/Pom 1.5
K19-170-147 D.170x147x16 147-170-16 nbr/Ptfe bronzo/Pom 1.5
VITON PDH 134/1 D.170x147x16 147-170-16 Viton/Ptfe bronzo/Pom 1.5
730/M 2331110 D.170x150x16 150-170-16 Nbr/ptfe/pom 1.5
730/M 2332010 D.165x150x16 150-165-16 Nbr/ptfe/pom 1.5
PDH 134/2 D.170x155x12,5 155-170-12.5 nbr/Ptfe bronzo/Pom 1.5
730/M 2335110 D.175x155x16 155-175-16 Nbr/ptfe/pom 1.5
K19 170-155 D.170x155x16 PDH 155-170-16 nbr/Ptfe bronzo/Pom 1.5
PDH 135 D.180x157x16 157-180-16 nbr/Ptfe bronzo/Pom 1.5
K19-180-157 D.180x157x16 157-180-16 nbr/Ptfe bronzo/Pom 1.5
730/M 2328510 D.180x160x16 PDP 160-180-16 Nbr/pom/tpe 1.5
K19-180-160 D.180x160x18 160-180-18 nbr/Ptfe bronzo/Pom 1.5
10PHD 185162 D.185x162x16 162-185-16 Ptfe/bronzo/nbr 1.5
PDH 136 D.180x165x12,50 165-180-12.5 nbr/Ptfe bronzo/Pom 1.5
730/M 2328410 D.185x165x16 165-185-16 Nbr/ptfe/pom 1.5
PDH 136/1 D.190x167x16,00 167-190-16 nbr/Ptfe bronzo/Pom 1.5
730/M 2332210 D.190x170x16 170-190-16 Nbr/ptfe/pom 1.5
730/M 2332710 D.230x210x16 170-190-16 Nbr/ptfe/pom 1.5
PDH 137 D.190x175x12,50 175-190-12.5 nbr/Ptfe bronzo/Pom 1.5
PDH 137/1 D.200x177x16,00 177-200-16 nbr/Ptfe bronzo/Pom 1.5
K19-200-177 D.200x177x16 177-200-16 nbr/Ptfe bronzo/Pom 1.5
PDH 138 D.200x180x16,00 180-200-16 nbr/Ptfe bronzo/Pom 1.5
730/M 2329310 D,200x180x16 -PDH 180-200-16 Nbr/ptfe/pom 1.5
730/M 2348810 D,200x180x20-PDH 180-200-20 Nbr/ptfe/pom 1.5
730/M 2332410 D.210x190x16--PDH 190-210-16 Nbr/ptfe/pom 1.5
PDH 138/1 D.220x200x16,00 200-220-16 nbr/Ptfe bronzo/Pom 1.5
PDH 138/2 D.225x202x16,00 202-225-16 nbr/Ptfe bronzo/Pom 1.5
K19-225-202 D.225x202x16 202-225-16 nbr/Ptfe bronzo/Pom 1.5
PDH 139 D.230x210x16,00 210-230-16 nbr/Ptfe bronzo/Pom 1.5
730/M 2333010 D.240x215x25 215-240-25 Nbr/ptfe/pom 1.5
K19-240-217 D.240x217x16 217-240-16 nbr/Ptfe bronzo/Pom 1.5
730/M 23483 D.250x225x25 225-250-25 Nbr/ptfe/pom 1.5
PDH 140 D.250x230x16,00 230-250-16 nbr/Ptfe bronzo/Pom 1.5
735/M 7168000 D.260x232x17,5 PDH 232-260-17.5 Nbr/ptfe/pom 1.5
K19-260-232 D.260x232x17,5 232-260-17.5 nbr/Ptfe bronzo/Pom 1.5
730/M 2347910 D.260x235x25 235-260-25 Nbr/ptfe/pom 1.5
PDH 141 D.260x240x16,00 240-260-16 nbr/Ptfe bronzo/Pom 1.5
10PHD 270242 D.270x242x17,5 242-270-17.5 Ptfe/bronzo/nbr 1.5
K19-270-242 D.270x242x17,5 242-270-17.5 nbr/Ptfe bronzo/Pom 1.5
730/M 2363210 D.270x245x24 245-270-24 Nbr/ptfe/pom 1.5
10PHD 280252 D.280x252x17,5 252-280-17.5 Ptfe/bronzo/nbr 1.5
K19-280-252 D.280x252x17,5 252-280-17.5 nbr/Ptfe bronzo/Pom 1.5
730/M 2333510 D.280x255x25 255-280-25 Nbr/ptfe/pom 1.5
PDH 142 D.280x260x16,00 260-280-16 nbr/Ptfe bronzo/Pom 1.5
730/M 2364410 D.290x265x27 265-290-27 Nbr/ptfe/pom 1.5
K19 290-270 D.290x270x16 PDH 270-290-16 nbr/Ptfe bronzo/Pom 1.5
10PHD 300272 D.300x272x17,5 272-300-17.5 Ptfe/bronzo/nbr 1.5
PDH 144 D.300x280x16,00 280-300-16 nbr/Ptfe bronzo/Pom 1.5
730/M 2348010 D.320x290x30 290-320-30 Nbr/ptfe/pom 1.5
PDH 145 D.320x295x20,00 295-320-20 nbr/Ptfe bronzo/Pom 1.5
K19-360-332 D.360x332x17,5 332-360-17.5 nbr/Ptfe bronzo/Pom 1.5
PDH 146 D.400x375x20,00 375-400-20 nbr/Ptfe bronzo/Pom 1.5
