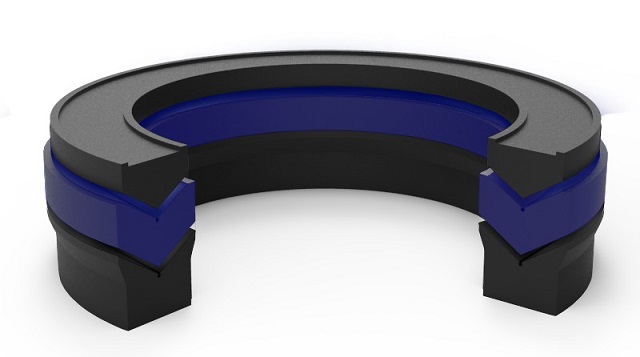

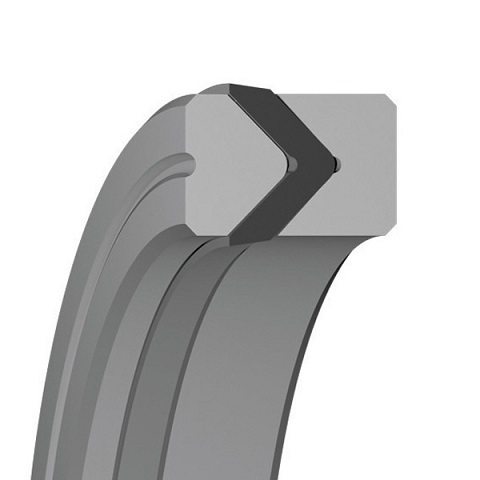

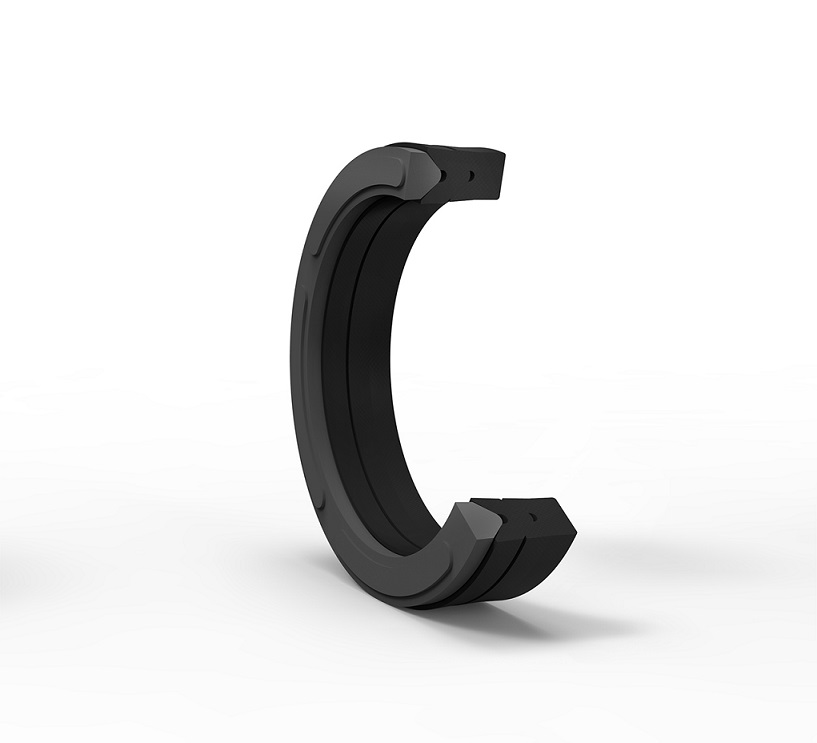

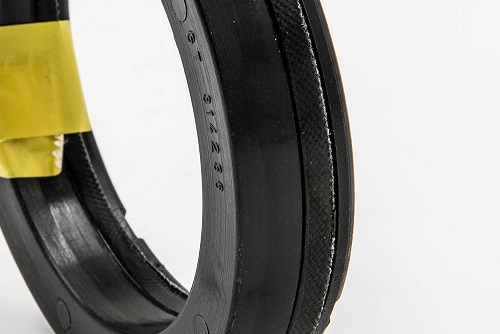

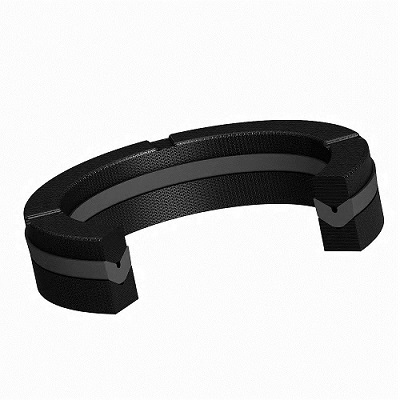

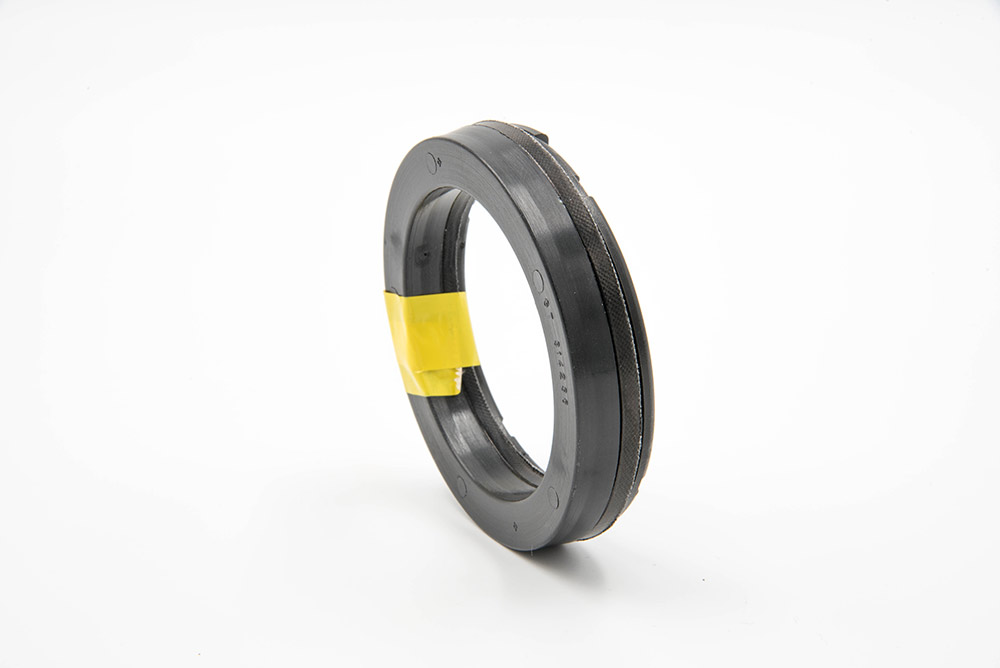

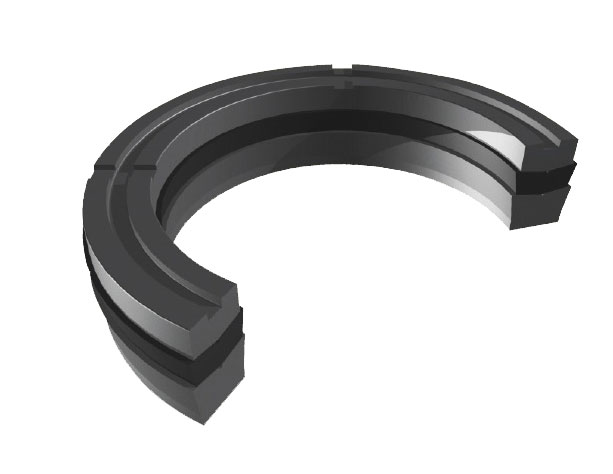

GT3

|Description: |Material: NBR / Rubbercloth / Pom |Pressure: = 400/600 bar |Speed: = 0,5 m/s |Temperature: - 35C + 120C with NBR / Rubbercloth / Pom |Temperature: - 30C + 200C with FKM / VITON+ Rubbercloth

Category: Piston Seals, Subcategory

Product Description

|Description: |Material: NBR / Rubbercloth / Pom |Pressure: = 400/600 bar |Speed: = 0,5 m/s |Temperature: - 35C + 120C with NBR / Rubbercloth / Pom |Temperature: - 30C + 200C with FKM / VITON+ Rubbercloth

Additional information

Name Size Materials Speed Stock
US1012 GT4 TEF+CARBOGRAFFITE D.010x018x8,5 10-18-8.5 Pu 0.5
K03-020 D.020x010x8,9 10-20-8.9 Nbr/gommatela 0.5
GT3 078039 D.020x010x09,3 10-20-9.3 Nbr/gommatela 0.5
K03-022 D.022x012x8,9 12-22-8.9 Nbr/gommatela 0.5
GT3 086047 D.022x012x09,3 12-22-9.3 Nbr/gommatela 0.5
K03-025 D.025x015x8,9 15-25-8.9 Nbr/gommatela 0.5
TO3 098059 D.025x015x8,9/9,3 15-25-8.9 Nbr/gommatela 0.5
GT3 098059 D.025x015x09,3 15-25-9.3 Nbr/gommatela 0.5
K03-028 D.028x018x8,9 18-28-8.9 Nbr/gommatela 0.5
TO3 110070 D.028x018x8,9/9,3 18-28-8.9 Nbr/gommatela 0.5
GT3 110070 D.028x018x09,3 18-28-9.3 Nbr/gommatela 0.5
K03-030 D.030x020x8,9 20-30-8.9 Nbr/gommatela 0.5
GT3 118078 D.030x020x09,3 20-30-9.3 Nbr/gommatela 0.5
VITON GT3 118078 D.030x020x9,3 20-30-9.3 Viton/gommatela 0.5
GT3 125078 D.032x020x10,9 20-32-10.9 Nbr/gommatela 0.5
TO3 125078 D.032x020x10,9 20-32-10.9 Nbr/gommatela 0.5
TO3 137078 D.035x020x12 20-35-12 Nbr/gommatela 0.5
GT3 137090 D.035x023x10,9 23-35-10.9 Nbr/gommatela 0.5
TO3 137090 D.035x023x11/11,5 23-35-11 Nbr/gommatela 0.5
TO3 141094 D.036x024x10,4 24-36-10.4 Nbr/gommatela 0.5
GT3 141094 D.036x024x10,9 24-36-10.9 Nbr/gommatela 0.5
TG3 157098 D.040x025x11/11,5 25-40-11 Nbr/gommatela 0.5
GT3 157098 D.040x025x11,5 25-40-11.5 Nbr/gommatela 0.5
VITON GT3 157098 D.040x025x11,50 25-40-11.5 Viton/gommatela 0.5
GT3 177102 D.045x026x18,5 26-45-18.5 Nbr/gommatela 0.5
GT3 165106 D.042x027x11,5 27-42-11.5 Nbr/gommatela 0.5
GT3 177118 D.045x030x11,5 30-45-11.5 Nbr/gommatela 0.5
TG3 196137 D.050x035x11/11,5 35-50-11 Nbr/gommatela 0.5
GT3 196137 D.050x035x11,5 35-50-11.5 Nbr/gommatela 0.5
TG3 216149 D.055x038x17 38-55-17 Nbr/gommatela 0.5
GT3 216157 D.055x040x11,5 40-55-11.5 Nbr/gommatela 0.5
US1012 GT3 PTFE VERGINE D.040x056x16,5 40-56-16.5 Ptfe 0.5
GT3 220161 D.056x041x11,5 41-56-11.5 Nbr/gommatela 0.5
GT3 236177 D.060x045x11,5 45-60-11.5 Nbr/gommatela 0.5
TO3 248188 D.063x048x12,5/13 48-63-12.5 Nbr/gommatela 0.5
VITON TO3 248188 D.063x048x12,5 48-63-12.5 Viton/gommatela 0.5
GT3 248188 D.063x048x13,0 48-63-13 Nbr/gommatela 0.5
VITON 11CH3-063 FPM-C D.063x048x13 48-63-13 Viton/gommatela 0.5
VITON GT3 248188 D.063x048x13,00 48-63-13 Viton/gommatela 0.5
GT3 255196 D.065x050x15 50-65-15 Nbr/gommatela 0.5
US1012 GT4 NBR D.050x060x15 NBR 85 SH 50-60-15 Nbr 0.5
GT3 275196 D.070x050x15,2 50-70-15.2 Nbr/gommatela 0.5
VITON TO3 275196 D.070x050x15,2 50-70-15.2 Viton/gommatela 0.5
TO3 314236 D.080x060x14,6/15,2 60-80-14.6 Nbr/gommatela 0.5
GT3 314236 D.080x060x15,2 60-80-15.2 Nbr/gommatela 0.5
VITON GT3 314236 D.080x060x15,20 60-80-15.2 Viton/gommatela 0.5
VITON TO3 314236 D.080x060x14,6/15,2 60-80-15.2 Viton/gommatela 0.5
TO3 314255 D.080x065x10,5 65-80-10.5 Nbr/gommatela 0.5
VITON GT3 314255 D.080x065x12,50 65-80-12.5 Viton/gommatela 0.5
K03-090 D.090x070x20,6 70-90-20.6 Nbr/gommatela 0.5
GT3 354275 D.090x070x21,2 70-90-21.2 Nbr/gommatela 0.5
TO3 393314 D.100x080x20,6/21,2 80-100-20.6 Nbr/gommatela 0.5
K03-100 D.100x080x20,6 80-100-20.6 Nbr/gommatela 0.5
VITON TO3 393314 D.100x080x20,6/21,2 80-100-20.6 Viton/gommatela 0.5
GT3 393314 D.100x080x21,2 80-100-21.2 Nbr/gommatela 0.5
VITON GT3 393314 D.100x080x21,20 80-100-21.2 Viton/gommatela 0.5
VITON EKV 24139296 D.100x080x21,2 80-100-21.2 Viton/gommatela 0.5
TG3 400350 D.101,6x088,9x16,3 SPLIT 88.9-101.6-16.3 Nbr/gommatela 0.5
K03-110 D.110x090x20,6 90-110-20.6 Nbr/gommatela 0.5
GT3 433354 D.110x090x21,2 90-110-21.2 Nbr/gommatela 0.5
ES D.090x110x30 24062197 90-110-30 Nbr/gommatela 0.5
TO3 452374 D.115x095x20,6/21,2 95-115-20.6 Nbr/gommatela 0.5
K03-115 D.115x095x20,6 95-115-20.6 Nbr/gommatela 0.5
GT3 452374 D.115x095x21,2 95-115-21.2 Nbr/gommatela 0.5
MV/GT 452374 D.115,0x095,0x21,2 95-115-21.2 Nbr/gommatela 0.5
TO3 492393/B D.125x100x25/25,8 100-125-25 Nbr/gommatela 0.5
K03-125 D.125x100x25 100-125-25 Nbr/gommatela 0.5
GT3 492393/B D.125x100x25,8 100-125-25.8 Nbr/gommatela 0.5
VITON GT3 492393 D.125x100x25,80 100-125-25.8 Viton/gommatela 0.5
VITON TO3 492393 D.125x100x25,8 100-125-25.8 Viton/gommatela 0.5
TO3 551452 D.140x115x25/25,8 115-140-25 Nbr/gommatela 0.5
K03-140 D.140x115x25 115-140-25 Nbr/gommatela 0.5
GT3 551452 D.140x115x25,8 115-140-25.8 Nbr/gommatela 0.5
VITON GT3 551452 D.140x115x25,80 115-140-25.8 Viton/gommatela 0.5
TO3 551472 D.140x120x25 120-140-25 Nbr/gommatela 0.5
TO3 590472 D.150x120x28/29 120-150-28 Nbr/gommatela 0.5
K03-150 D.150x120x28 120-150-28 Nbr/gommatela 0.5
VITON TO3 590472 D.150x120x28 120-150-28 Viton/gommatela 0.5
GT3 590472 D.150x120x29,0 120-150-29 Nbr/gommatela 0.5
GT3 610492 D.155x125x34 125-155-34 Nbr/gommatela 0.5
TO3 629511 D.160x130x28/29 130-160-28 Nbr/gommatela 0.5
K03-160 D.160x130x28 130-160-28 Nbr/gommatela 0.5
GT3 629511 D.160x130x29,0 130-160-29 Nbr/gommatela 0.5
VITON TO3 629511 D.160x130x28/29 130-160-29 Viton/gommatela 0.5
VITON GT3 629511 D.160x130x29,00 130-160-29 Viton/gommatela 0.5
TG3 629531 D.160x135x20 135-160-20 Nbr/gommatela 0.5
GT3 610551 D.155x140x16 140-155-16 Nbr/gommatela 0.5
ES D.155x140x34 140-155-34 Nbr/gommatela 0.5
K03-180 D.180x150x30,5 150-180-30.5 Nbr/gommatela 0.5
TO3 708590 D.180x150x30,5/31,5 150-180-30.5 Nbr/gommatela 0.5
VITON TO3 708590 D.180x150x30,5 150-180-30.5 Viton/gommatela 0.5
GT3 708590 D.180x150x31,5 150-180-31.5 Nbr/gommatela 0.5
VITON GT3 708590 D.180x150x31,50 150-180-31.5 Viton/gommatela 0.5
GT3 748629 D.190x160x31,5 160-190-31.5 Nbr/gommatela 0.5
GT3 767649 D.195x165x32,5 165-195-32.5 Nbr/gommatela 0.5
TO3 787669 D.200x170x32,5/33,5 170-200-32.5 Nbr/gommatela 0.5
K03-200 D.200x170x32,5 170-200-32.5 Nbr/gommatela 0.5
VITON EKV 24139359 D.200x170x32,5 170-200-32.5 Viton/gommatela 0.5
GT3 787669 D.200x170x33,5 170-200-33.5 Nbr/gommatela 0.5
VITON GT3 787669 D.200x170x33,50 170-200-33.5 Viton/gommatela 0.5
EK 787669 079.621 D.200x170x38,7 170-200-38.7 Nbr/gommatela 0.5
TG3 807688 D.205x175x26 175-205-26 Nbr/gommatela 0.5
TG3 800700 D.203,2x177,8x29,5 177.8-203.2-29.5 Nbr/gommatela 0.5
VITON TG3 826708 D.210x180x32,5 180-210-32.5 Viton/gommatela 0.5
GT3 826708 D.210x180x33,5 180-210-33.5 Nbr/gommatela 0.5
TG3 807728 D.205x185x25 SPLIT 185-205-25 Nbr/gommatela 0.5
GT3 866748 D.220x190x33,5 190-220-33.5 Nbr/gommatela 0.5
VITON GT3 866748 D.220x190x33,50 190-220-33.5 Viton/gommatela 0.5
TO3 885767 D.225x195x32,5/33,5 195-225-32.5 Nbr/gommatela 0.5
GT3 885767 D.225x195x33,5 195-225-33.5 Nbr/gommatela 0.5
TG3 944787 D.240x200x36 200-240-36 Nbr/gommatela 0.5
GT3 944846 D.240x215x33,5 215-240-33.5 Nbr/gommatela 0.5
TO3 984886 D.250x220x32,5/33,5 220-250-32.5 Nbr/gommatela 0.5
K03-250 D.250x220x32,5 220-250-32.5 Nbr/gommatela 0.5
VITON TO3 984866 D.250x220x32,5 220-250-32.5 Viton/gommatela 0.5
GT3 984866 D.250x220x33,5 220-250-33.5 Nbr/gommatela 0.5
VITON GT3 984866 D.250x220x33,50 220-250-33.5 Viton/gommatela 0.5
TG3 984866 D.250x220x35,5 220-250-35.5 Nbr/gommatela 0.5
VITON TG3 984866 D.250x220x35,5 220-250-35.5 Viton/gommatela 0.5
TG3 1003885 D.255x225x36 225-255-36 Nbr/gommatela 0.5
TG3 1023905 D.260x230x33,5 230-260-33.5 Nbr/gommatela 0.5
GT3 1062944 D.270x240x33,5 240-270-33.5 Nbr/gommatela 0.5
GT3 1082965/1 D.275x245x26,5 245-275-26.5 Nbr/gommatela 0.5
TG3 10829645 D.275x245x26,5 245-275-26.5 Nbr/gommatela 0.5
K03-275 D.275x245x32,5 245-275-32.5 Nbr/gommatela 0.5
GT3 1082965 D.275x245x33,5 245-275-33.5 Nbr/gommatela 0.5
K03-280 D.280x250x32,5 250-280-32.5 Nbr/gommatela 0.5
GT3 1102984 D.280x250x33,5 250-280-33.5 Nbr/gommatela 0.5
VITON GT3 1102984 D.280x250x33,50 250-280-33.5 Viton/gommatela 0.5
K03-300 D.300x270x32,5 270-300-32.5 Nbr/gommatela 0.5
GT3 11811062 D.300x270x33,5 270-300-33.5 Nbr/gommatela 0.5
TG3 12591102 D.320x280x32,5 280-320-32.5 Nbr/gommatela 0.5
GT3 12591141 D.320x290x33,5 290-320-33.5 Nbr/gommatela 0.5
VITON GT3 12591141 D.320x290x33,50 290-320-33.5 Viton/gommatela 0.5
TG3 13381181 D.340x300x34 300-340-34 Nbr/gommatela 0.5
TG3 13381181 D.340x300x41 300-340-41 Nbr/gommatela 0.5
GT3 13771220 D.350x310x35 310-350-35 Nbr/gommatela 0.5
TG3 13771220 D.350x310x40 310-350-40 Nbr/gommatela 0.5
TG3 14171259 D.360x320x41 320-360-41 Nbr/gommatela 0.5
TG3 14171299 D.360x330x35,5 330-360-35.5 Nbr/gommatela 0.5
VITON GT3 14961338 D.380x340x43 340-380-43 Viton/gommatela 0.5
TG3 15351377 D.390,0x350,0x40 h gua 350-390-40 Nbr/gommatela 0.5
TG3 15513912 D.395x355x32 355-395-32 Nbr/gommatela 0.5
TG3 1551397/1 D.395x355x37 355-395-37 Nbr/gommatela 0.5
TG3 15741417 D.400x360x34 360-400-34 Nbr/gommatela 0.5
TG3 15741417 D.400x360x39 360-400-39 Nbr/gommatela 0.5
TG3 16921574 D.430x400x32,5 400-430-32.5 Nbr/gommatela 0.5
TG4 16921574 D.430x400x38 400-430-38 Nbr/gommatela 0.5
GT3 18111653 D.460x420x42,5 420-460-42.5 Nbr/gommatela 0.5
TG3 18111692 D.460x430x28 430-460-28 Nbr/gommatela 0.5
TG3 20071811 D.510x460x48 SPLIT 460-510-48 Nbr/gommatela 0.5
TG4 20071811 D.510x460x60,5 SPLIT 460-510-60.5 Nbr/gommatela 0.5
TG3 20471889 D.520x480x42,5/43,5 480-520-42.5 Nbr/gommatela 0.5
TG3 20271909 D.515x485x26 485-515-26 Nbr/gommatela 0.5
GT3 24402283 D.620x580x42/40,5 580-620-42 Nbr/gommatela 0.5
TG3 24802283 D.630x580x48,5 580-630-48.5 Nbr/gommatela 0.5
TO3 35823425 D.910x870x36 APERTA 870-910-36 Nbr/gommatela 0.5
