58

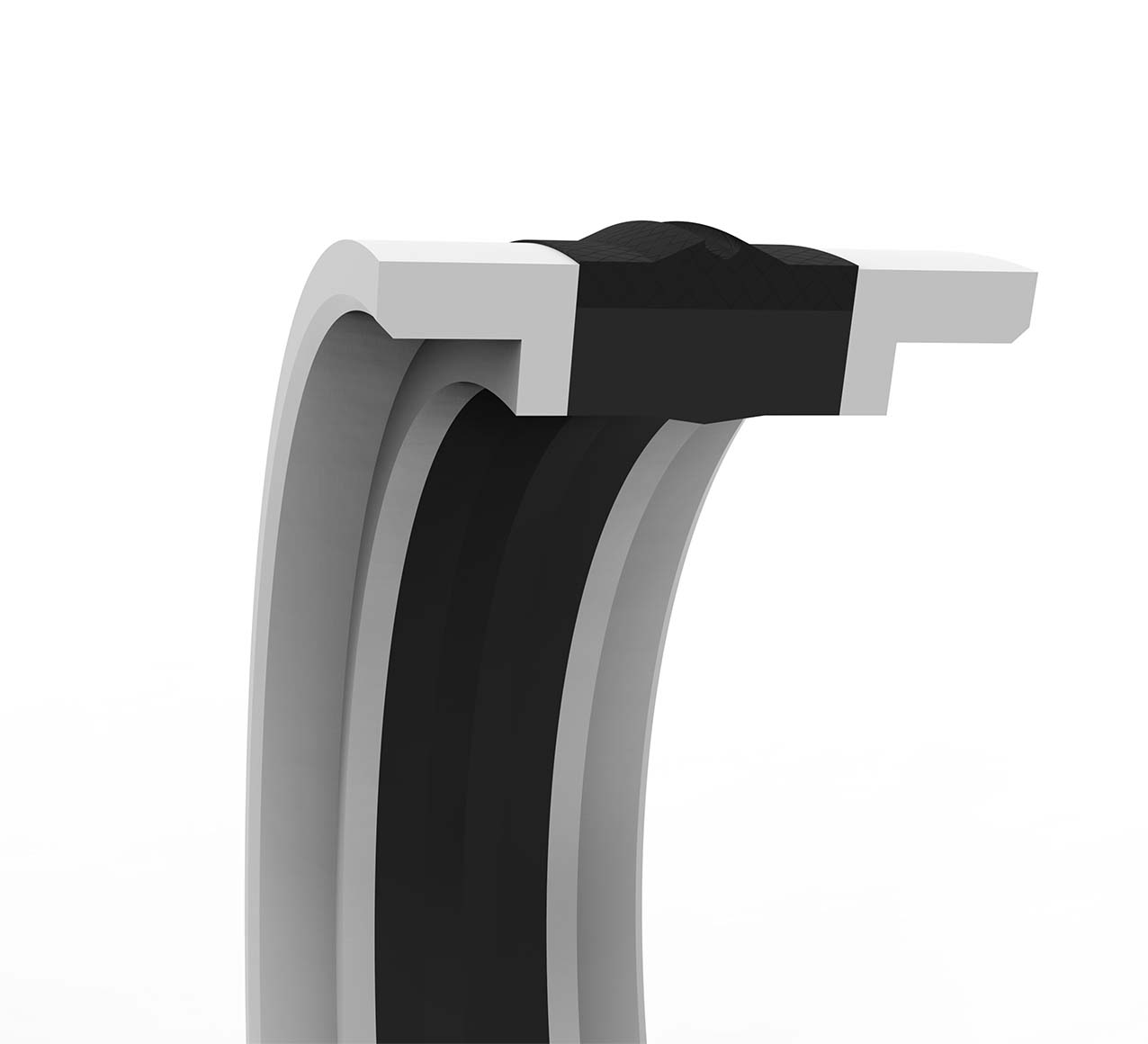

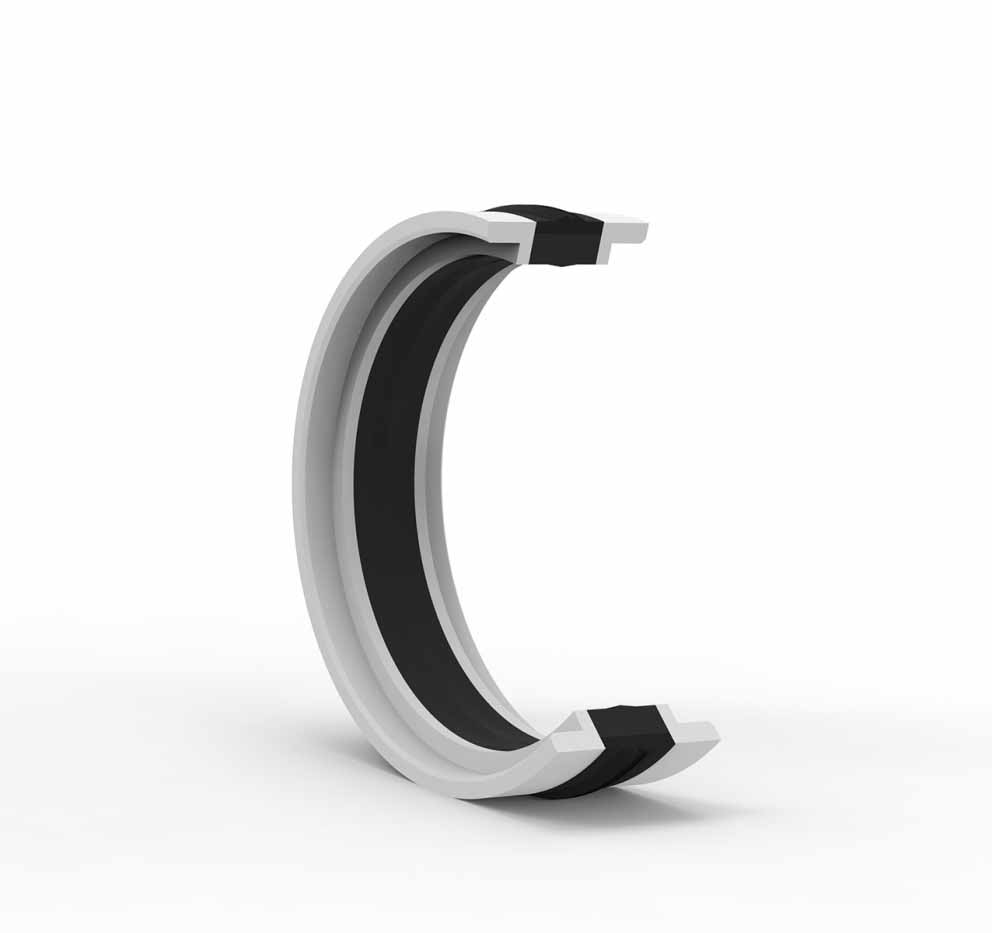

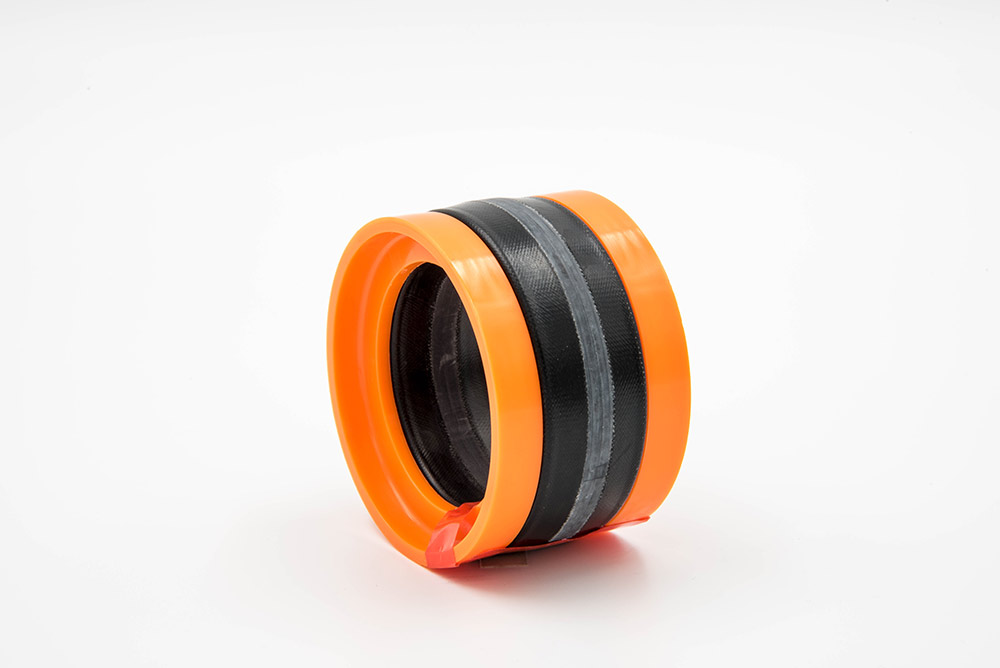

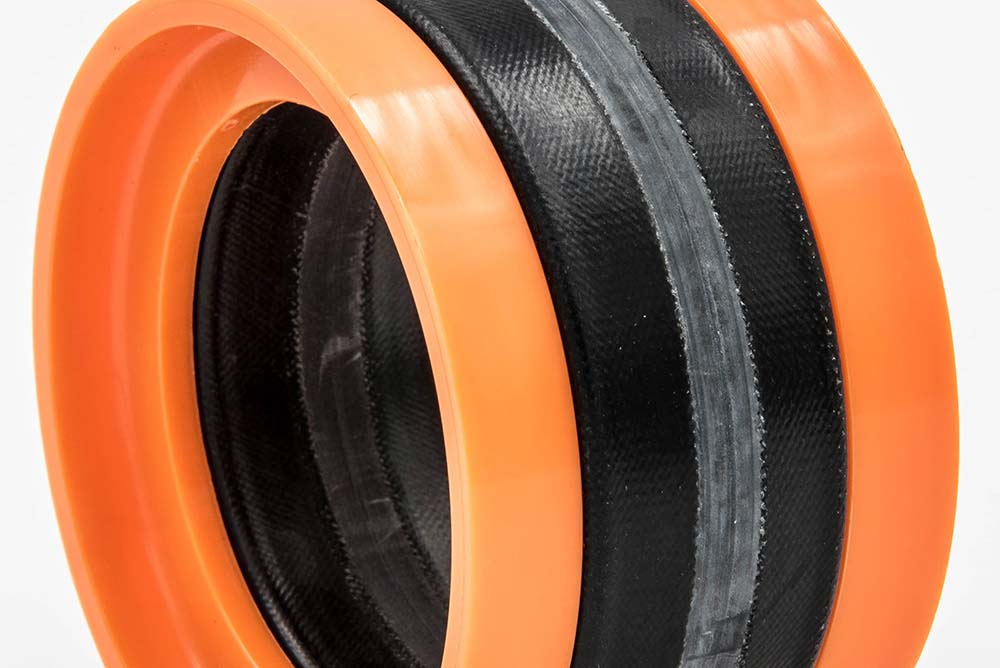

The SEAL called name 58 made up of 3 pieces the external parts by two guide rings in polyacetal resin and guarantee the prompt reaction of the seal in both directions, and the central part in rubber, created to have the possibility of working in hydraulic cylinders where the seal 58 is installed on the piston inside the cylinder and to perform a double effect both for rod exit and return. The sturdy 58 seal is used for heavy duty and can support the possible extrusion in the presence of high pressures. 58 can be changed with other similar seal such as: TDE - TPS - MDD/IDD - TTD - PLW - DPW/L - MPSA – 58 |Description: |Material: Nbr / Rubbercloth / Pom |Pressure: = 400/700 bar |Speed: = 0,5 m/s |Temperature: - 30°C + 100°C

Category: Piston Seals, Subcategory

Product Description

The SEAL called name 58 made up of 3 pieces the external parts by two guide rings in polyacetal resin and guarantee the prompt reaction of the seal in both directions, and the central part in rubber, created to have the possibility of working in hydraulic cylinders where the seal 58 is installed on the piston inside the cylinder and to perform a double effect both for rod exit and return. The sturdy 58 seal is used for heavy duty and can support the possible extrusion in the presence of high pressures. 58 can be changed with other similar seal such as: TDE - TPS - MDD/IDD - TTD - PLW - DPW/L - MPSA – 58 |Description: |Material: Nbr / Rubbercloth / Pom |Pressure: = 400/700 bar |Speed: = 0,5 m/s |Temperature: - 30°C + 100°C

Additional information

Name Size Materials Speed Stock
54 M 6624110 D.020x012,5x3,2 12.5-20-3.2 Nbr/gommatela/pom 0.5
MD/EO 110078 D.028x020x7 20-28-7 Nbr/gommatela/pom 0.5
58M 0472850 D.040x025x24 25-40-24 Nbr/gommatela/pom 0.5
IDD 150100 D.038,10x025,40x19,05 58 25.4-38.1-19.05 Nbr/gommatela/pom 0.5
58/INCH 6504450 D.044,45x028,57x19,05 28.57-44.4-19.05 Nbr/gommatela/pom 0.5
58M 0282150 D.050x030x31 30-50-31 Nbr/gommatela/pom 0.5
64M 6600300 D.050x034x20,5 34-50-20.5 Nbr/pom/tpe 0.5
58M 0474650 D.050x035x24 35-50-24 Nbr/gommatela/pom 0.5
DPW/L 196137 D.050x035x24--58 35-50-24 Nbr/gommatela/pom 0.5
MDD D.050x035x24 PLW 58 35-50-24 Nbr/gommatela/pom 0.5
DPW 212150 D.053,97x038,10x19,45-58 38.1-53.9-19.45 Nbr/gommatela/pom 0.5
58M 0282050 D.060x040x31 40-60-31 Nbr/gommatela/pom 0.5
58M 0475050 D.055x040x24 40-55-24 Nbr/gommatela/pom 0.5
64M 6600600 D.063x047x20,5 47-63-20.5 Nbr/pom/tpe 0.5
DPW 250187/L D.063,5x047,625x23,8-58 DPW/L 47.62-63.5-23.8 Nbr/gommatela/pom 0.5
IDD 250187 D.063,50x047,62x23,79 58 47.62-63.5-23.79 Nbr/gommatela/pom 0.5
DPW/L 248188 D.063x048x24--58 48-63-24 Nbr/gommatela/pom 0.5
10D11W 275196/H D.070x050x31 50-70-31 Nbr/pom/tpe 0.5
58M 0294650 D.070x050x31 50-70-31 Nbr/gommatela/pom 0.5
58M 0383850 D.065x050x24 50-65-24 Nbr/gommatela/pom 0.5
MPS D.065x050x7,5 50-65-7.5 Ptfe/bronzo 0.5
64M 6600700 D.070x054x20,5 54-70-20.5 Nbr/pom/tpe 0.5
58M 0818650 D.075x055x31 55-75-31 Nbr/gommatela/pom 0.5
DPW/L 300225 D.076,2x057,15x30,15 -58 57.15-76.2-23.8 Nbr/gommatela/pom 0.5
58/INCH 1098450 D.079,2x057,15x30,15 57.15-79.2-30.15 Nbr/gommatela/pom 0.5
DPW 300225 D.076,2x057,15x23,80 57.15-76.2-23.8 Nbr/gommatela/pom 0.5
DPW/L 314236/2 D.080x060x31--58 60-80-31 Nbr/gommatela/pom 0.5
58M 0294950 D.080x060x31 60-80-31 Nbr/gommatela/pom 0.5
MPS D.070x060x5 60-70-5 Ptfe/bronzo 0.5
MPS D.075x060x7,5 60-75-7.5 Ptfe/bronzo 0.5
58/INCH 1154150 D.082,55x063,5x23,79 63.5-82.5-23.79 Nbr/gommatela/pom 0.5
MPS D.080x065x7,5 65-80-7.5 Ptfe/bronzo 0.5
IDD 350275 D.088,90x069,85x30,14 58 69.85-88.9-30.14 Nbr/gommatela/pom 0.5
58M 0296050 D.090x070x31 70-90-31 Nbr/gommatela/pom 0.5
MDD D.090x070x31 PLW 58 70-90-31 Nbr/gommatela/pom 0.5
64M 6600800 D.090x072x22,5 72-90-22.5 Nbr/gommatela/pom 0.5
DA/TDE 362287 D.092,07x073,02x24,21/6,35 73.02-92-24.21 Nbr/gommatela/pom 0.5
DPW/L 393314 D.100x080x31--58 80-100-31 Nbr/gommatela/pom 0.5
58M 0295150 D.100x080x31 80-100-31 Nbr/gommatela/pom 0.5
58/INCH 1407750 D.101,6x082,55x30,15 82.55-101.6-30.15 Nbr/gommatela/pom 0.5
58/INCH 0448850 D.114,3x088,9x38,10 88.9-114.3-38.1 Nbr/gommatela/pom 0.5
58M 0712450 D.110x090x31 90-110-31 Nbr/gommatela/pom 0.5
58M 0796450 D.115x095x31 95-115-31 Nbr/gommatela/pom 0.5
10D11W 472393/H D.120x100x31 100-120-31 Nbr/pom/tpe 0.5
58M 0296150 D.120x100x31 100-120-31 Nbr/gommatela/pom 0.5
58M 0418650 D.125x100x38 100-125-38 Nbr/gommatela/pom 0.5
58M 1007450 D.125x100x25 100-125-25 Nbr/gommatela/pom 0.5
DPW/L 492393/2 D.125x100x38--58 100-125-38 Nbr/gommatela/pom 0.5
MDD D.125x100x38 PLW 58 100-125-38 Nbr/gommatela/pom 0.5
DPW/L 500400 D.127x101,6x38,1 58 101.6-127-38.1 Nbr/gommatela/pom 0.5
58M 0244350 D.130x104x38 104-130-38 Nbr/gommatela/pom 0.5
58M 0044850 D.130x105x25 105-130-25 Nbr/gommatela/pom 0.5
10D11W 550450/H D.139,7x114,3x38,1 114.3-139.7-38.1 Nbr/gommatela/pom 0.5
58/INCH 0133250 D.139,7x114,3x31,75 114.3-139.7-31.75 Nbr/gommatela/pom 0.5
58M 0250550 D.140x120x31 120-140-31 Nbr/gommatela/pom 0.5
58M 1289550 D.150x120x44 120-150-44 Nbr/pom/tpe 0.5
MPSA-58-145 D.145x125x31 125-145-31 Nbr/gommatela/pom 0.5
IDD 600500 D.152,4x127x38,1 58 127-152.4-38.1 Nbr/gommatela/pom 0.5
058/I 1164150 D.165,1x139,7x38,1 139.7-165.1-38.1 Nbr/gommatela/pom 0.5
58/M 0304650 D.160x140x31 140-160-31 Nbr/gommatela/pom 0.5
DPW/L 629551 D.160x140x31 140-160-31 Nbr/gommatela/pom 0.5
58/M 0303350 D.170x150x31 150-170-31 Nbr/gommatela/pom 0.5
58/M 0679850 D.180x150x35 150-180-35 Nbr/gommatela/pom 0.5
DPW/L 700600 D.177,8x152,4x38,1 58 152.4-177.8-38.1 Nbr/gommatela/pom 0.5
58/M 1283150 D.180x160x31 160-180-31 Nbr/gommatela/pom 0.5
58/M 0838850 D.200x175x38 175-200-38 Nbr/gommatela/pom 0.5
58/INCH 0224350 D203x177,8x31,75 177.8-203-31.75 Nbr/gommatela/pom 0.5
058/I 1266650 D.228,60x196,85x47,62 196.85-228.6-47.62 Nbr/pom/tpe 0.5
58 /M 1056450 D.220x200x31 200-220-31 Nbr/gommatela/pom 0.5
58/M 1055550 D.280x250x44 250-280-44 Nbr/gommatela/pom 0.5
