TGO

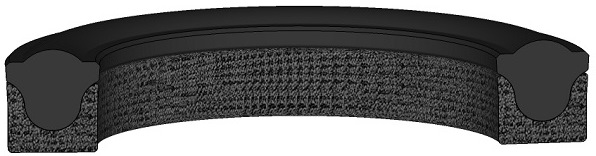

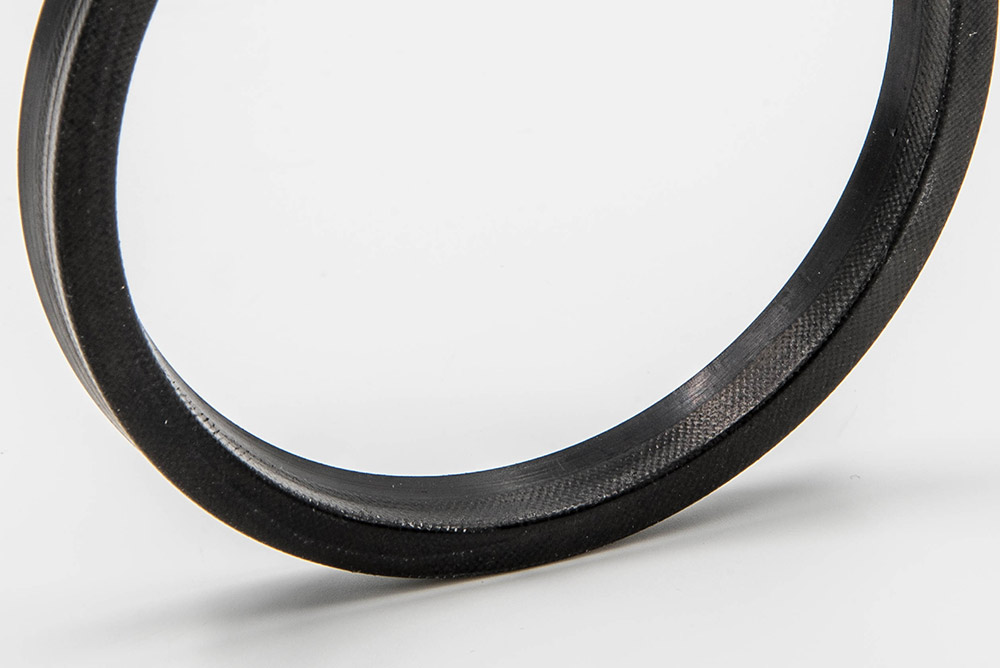

TGO seal created with a particular profile, suitable for working on chromed rod in hydraulic cylinders. In particular, the seal called TGO is installed inside the cylinder head in the hydraulic cylinders for medium and high pressure operation. The TGO seal made from a single piece vulcanized in (CANVAS + NBR RUBBER), offering excellent sealing and good resistance in high pressures. Besides, it is possible to create with special material (CANVAS RUBBER + NBR / FKM - VITON) where high temperatures are present over +200 C °. TGO 2 part composite single acting seal Gommatela: YOU CAN REPLACE IT WITH Rod seals S8 - 18 - K39 - LS8C - TEOL/1 - TSE - B - TGH. Hydraulic cylinders with TGO seal are mounted on earth moving machines such as: KOMATSU, CAT CATERPILLAR, HITACHI, VOLVO, IVECO, CASE, JCB, VENERI, NEW HOLLAND, FAI, KUBOTA ... and many others. |Description: |Material: Nbr / Rubbercloth / Pom |Pressure: = 250/500 bar |Speed: = 0,5 m/s |Temperature: - 35°C + 120°C with Nbr / Rubbercloth / Pom |Temperature: - 30°C + 200°C with FKM /VITON+ Rubbercloth

Category: Rod Seals, Subcategory

Product Description

TGO seal created with a particular profile, suitable for working on chromed rod in hydraulic cylinders. In particular, the seal called TGO is installed inside the cylinder head in the hydraulic cylinders for medium and high pressure operation. The TGO seal made from a single piece vulcanized in (CANVAS + NBR RUBBER), offering excellent sealing and good resistance in high pressures. Besides, it is possible to create with special material (CANVAS RUBBER + NBR / FKM - VITON) where high temperatures are present over +200 C °. TGO 2 part composite single acting seal Gommatela: YOU CAN REPLACE IT WITH Rod seals S8 - 18 - K39 - LS8C - TEOL/1 - TSE - B - TGH. Hydraulic cylinders with TGO seal are mounted on earth moving machines such as: KOMATSU, CAT CATERPILLAR, HITACHI, VOLVO, IVECO, CASE, JCB, VENERI, NEW HOLLAND, FAI, KUBOTA ... and many others. |Description: |Material: Nbr / Rubbercloth / Pom |Pressure: = 250/500 bar |Speed: = 0,5 m/s |Temperature: - 35°C + 120°C with Nbr / Rubbercloth / Pom |Temperature: - 30°C + 200°C with FKM /VITON+ Rubbercloth

Additional information

Name Size Materials Speed Stock
18/I 0332500 D. 1,375x1,75x0,281 1.37-1.75-0.28 Nbr/gommatela 0,5.
TGO 2501-047019 D.005x012x6,4 TSE 5-12-6.4 Nbr/gommatela 0,5.
TSE 047019/A D.005x012x06,5 5-12-6.5 Nbr/gommatela 0,5.
TGO 2503-059031 D.008x015x6,4 TSE 8-15-6.4 Nbr/gommatela 0,5.
TSE 059031/A D.008x015x06,5 8-15-6.5 Nbr/gommatela 0,5.
TGO 2504-066039 D.010x017x6,4 TSE 10-17-6.4 Nbr/gommatela 0,5.
VITON TGO 2504 D.010x017x6,4 TSE 10-17-6.4 Nbr/gommatela 0,5.
TGO 2504/1-066039/S1 D.010x018x6,5 TSE 10-18-6.5 Nbr/gommatela 0,5.
K39-010 D.010x017x6,5 10-17-6.5 Nbr/gommatela 0,5.
TGO 2504/2-066039/S2 D.010x018x8,5 TSE 10-18-8.5 Nbr/gommatela 0,5.
16/M 8610610 D.012x019,5x3,2 12-19.5-3.2 Nbr/gommatela 0,5.
TSE 075047/A D.012x019x5,7/6,5 12-19-5.7 Nbr/gommatela 0,5.
TGO 2505-075047 D.012x019x6,4 TSE 12-19-6.4 Nbr/gommatela 0,5.
VITON TGO 2505 D.012x019x6,4 TSE 12-19-6.4 Nbr/gommatela 0,5.
18/I 0782900 D.12,375x13,875x1,125 12.37-13.87-1.13 Nbr/gommatela 0,5.
TGO 2506-086055 D.014x022x6,4 TSE 14-22-6.4 Nbr/gommatela 0,5.
TSE 086055/A D.014x022x06,50 14-22-6.5 Nbr/gommatela 0,5.
Q3 1040 Z5048 D.014x022x8/8,5 14-22-8 Nbr/gommatela 0,5.
TGO 2507-090059 D.015x023x6,4 TSE 15-23-6.4 Nbr/gommatela 0,5.
18/M 0202800 D.015x025x7,5 15-25-7.5 Nbr/gommatela 0,5.
TGO 2508-094063 D.016x024x6,4 TSE 16-24-6.4 Nbr/gommatela 0,5.
VITON TGO 2508 D.016x024x6,4 TSE 16-24-6.4 Nbr/gommatela 0,5.
TGO 2509-102070 D.018x026x6,4 TSE 18-26-6.4 Nbr/gommatela 0,5.
VITON TGO 2509 D.018x026x6,4 TSE 18-26-6.4 Nbr/gommatela 0,5.
TSE 102070/A D.018x026x06,50 STD 18-26-6.5 Nbr/gommatela 0,5.
K39-020 D.020x028x6,3 20-28-6.3 Nbr/gommatela 0,5.
TGO 2510-110078/1 D.020x028x6,4 TSE 20-28-6.4 Nbr/gommatela 0,5.
VITON TGO 2510 D.020x028x6,4 TSE 20-28-6.4 Nbr/gommatela 0,5.
K39-022 D.022x030x6,3 22-30-6.3 Nbr/gommatela 0,5.
TGO 2511-118086 D.022x030x6,4 TSE 22-30-6.4 Nbr/gommatela 0,5.
VITON TGO 2511 D.022x030x6,4 TSE 22-30-6.4 Nbr/gommatela 0,5.
TSE 118086/A D.022x030x06,50 22-30-6.5 Nbr/gommatela 0,5.
TGO 2511/1-125094 D.024x032x5 TSE 24-32-5 Nbr/gommatela 0,5.
K39-025 D.025x033x6,3 25-33-6.3 Nbr/gommatela 0,5.
TGO 2512-129098 D.025x033x6,4 TSE 25-33-6.4 Nbr/gommatela 0,5.
18/M 0472800 D.025x040x11 25-40-11 Nbr/gommatela 0,5.
K39-028 D.028x036x6,3 28-36-6.3 Nbr/gommatela 0,5.
TGO 2513-141110 D.028x036x6,4 TSE 28-36-6.4 Nbr/gommatela 0,5.
VITON TGO 2513 D.028x036x6,4 TSE 28-36-6.4 Nbr/gommatela 0,5.
U12-1.12-25DZ D.028,58x034,93x6,35 28.58-34.93-6.35 Nbr/gommatela 0,5.
K39-030 D.030x038x6,3 30-38-6.3 Nbr/gommatela 0,5.
TGO 2514-149118 D.030x038x6,4 TSE 30-38-6.4 Nbr/gommatela 0,5.
VITON TGO 2514 D.030x038x6,4 TSE 30-38-6.4 Nbr/gommatela 0,5.
K39-030/2 D.030x038x8,5 30-38-8.5 Nbr/gommatela 0,5.
K39-030/1 D.030x042x9 30-42-9 Nbr/gommatela 0,5.
18/M 0282100 D.030x050x14 30-50-14 Viton/gommatela 0,5.
18/I 1447500 D.031,75x044,45x7,11 31.75-44.45-7.11 Nbr/gommatela 0,5.
TGO 2515-157125 D.032x040x6,4 TSE 32-40-6.4 Nbr/gommatela 0,5.
TSE 157125/A D.032x040x06,40 32-40-6.4 Nbr/gommatela 0,5.
K39-035 D.035x043x6,3 35-43-6.3 Nbr/gommatela 0,5.
TGO 2516-169137 D.035x043x6,4 TSE 35-43-6.4 Nbr/gommatela 0,5.
TGO 2516/1-169137/S1 D.035x043x8,5 TSE 35-43-8.5 Nbr/gommatela 0,5.
18/M 0475000 D.035x050x11 35-50-11 Nbr/pom/tpe 0,5.
TGO 2517-173141 D.036x044x6,4 TSE 36-44-6.4 Nbr/gommatela 0,5.
VITON TEOL/1 D.048x040x6 40-48-6 Nbr/gommatela 0,5.
K39-040 D.040x048x6,3 40-48-6.3 Nbr/gommatela 0,5.
TGO 2518-188157 D.040x048x6,4 TSE 40-48-6.4 Nbr/gommatela 0,5.
VITON TGO 2518 D.040x048x6,4 TSE 40-48-6.4 Nbr/gommatela 0,5.
TGO 2519-196165 D.042x050x6,4 TSE 42-50-6.4 Nbr/gommatela 0,5.
VITON TGO 2519 D.042x050x6,4 TSE 42-50-6.4 Nbr/gommatela 0,5.
11/M 4202650 D.042x054x22,5 42-54-22.5 Nbr/gommatela 0,5.
18/I 1112900 D.044,45x053,97x4,75 E 44.45-53.97-4.75 Nbr/gommatela 0,5.
TGO 2520-216177 D.045x055x8 TSE 45-55-8 Nbr/gommatela 0,5.
K39-045 D.045x055x8 45-55-8 Nbr/gommatela 0,5.
TGO 2519/1-208177 D.045x053x8,5 TSE 45-53-8.5 Nbr/gommatela 0,5.
TGH D.046x054x9 N&B TSE 46-54-9 Nbr/gommatela 0,5.
VITON TEOL/1 D.060x050x7,5 50-60-7.5 Nbr/gommatela 0,5.
TGO 2521-236196 D.050x060x8 TSE 50-60-8 Nbr/gommatela 0,5.
K39-050 D.050x060x8 50-60-8 Nbr/gommatela 0,5.
TGO 2521/1-244196 D.050x062x9,6 TSE 50-62-9.6 Nbr/gommatela 0,5.
18/M 0805800 D.050x060x14 50-60-14 Nbr/gommatela 0,5.
18/I 0185900 D.050,80x063,50x6,35 50.8-63.5-6.35 Nbr/gommatela 0,5.
18/I 1369100 D.050,80x069,85x14,287 50.8-69.85-14.29 Nbr/gommatela 0,5.
TGO 2522-255216 D.055x065x8 TSE 55-65-8 Nbr/gommatela 0,5.
K39-055 D.055x065x8 55-65-8 Nbr/gommatela 0,5.
TGO 2521/2-248216 D.055x063x8,5 TSE 55-63-8.5 Nbr/gommatela 0,5.
TGO 2522/1-255216/S1 D.055x065x13,5 TSE 55-65-13.5 Nbr/gommatela 0,5.
TGO 2523-259220 D.056x066x8 TSE 56-66-8 Nbr/gommatela 0,5.
VITON TGO 2523 D.056x066x8 TSE 56-66-8 Nbr/gommatela 0,5.
VITON TEOL/1 D.070x060x7,5 TGO 60-70-7.5 Nbr/gommatela 0,5.
TGO 2524-275236 D.060x070x8 TSE 60-70-8 Nbr/gommatela 0,5.
K39-060 D.060x070x8 60-70-8 Nbr/gommatela 0,5.
18/M 0294900 D.060x080x14 60-80-14 Nbr/gommatela 0,5.
TGH D.061x069x9 N&B TSE 61-69-9 Nbr/gommatela 0,5.
K39-063/1 D.063x075x9 63-75-9 Nbr/gommatela 0,5.
TGO 2525-295248 D.063x075x9,6 TSE 63-75-9.6 Nbr/gommatela 0,5.
VITON TGO 2525 D.063x075x9,6 TSE 63-75-9.6 Nbr/gommatela 0,5.
18/I 0641200 D.063,50x076,20x7,92 63.5-76.2-7.92 Nbr/gommatela 0,5.
K39-065 D.065x077x9,5 65-77-9.5 Nbr/gommatela 0,5.
TGO 2526-303255 D.065x077x9,6 TSE 65-77-9.6 Nbr/gommatela 0,5.
VITON TGO 2526 D.065x077x9,6 TSE 65-77-9.6 Nbr/gommatela 0,5.
TGH D.068x076x9 N&B TSE 68-76-9 Nbr/gommatela 0,5.
VIT TGH D.068x076x9 N&B TSE 68-76-9 Nbr/gommatela 0,5.
18/M 1129700 D.070x078x6 70-78-6 Nbr/gommatela 0,5.
TGO 2527-322275 D.070x082x8,6/9,6 TSE 70-82-8.6 Nbr/gommatela 0,5.
18/M 0392600 D.070x085x9,5 70-85-9.5 Nbr/gommatela 0,5.
K39-070 D.070x082x9,5 70-82-9.5 Nbr/gommatela 0,5.
18/M 0296000 D.070x090x14 70-90-14 Nbr/gommatela 0,5.
TGO 2528-342295 D.075x087x9/9,6 TSE 75-87-9 Nbr/gommatela 0,5.
TGH D.076x084x8/9 N&B TSE 76-84-8 Nbr/gommatela 0,5.
TGO 2529-362314 D.080x092x9,6 TSE 80-92-9.6 Nbr/gommatela 0,5.
K39-080 D.080x092x10 80-92-10 Nbr/gommatela 0,5.
18/I 1436200 D.080,5x092,5x12 80.5-92.5-12 Nbr/gommatela 0,5.
18/M 0926400 D.082x107x16 82-107-16 Nbr/gommatela 0,5.
18/I 1407700 D.082,55x101,60x14,287 82.55-101.6-14.29 Nbr/gommatela 0,5.
TGO 2530-381334 D.085x097x9,6 TSE 85-97-9.6 Nbr/gommatela 0,5.
VITON TGO 2530 D.085x097x9,6 TSE 85-97-9.6 Nbr/gommatela 0,5.
TGH D.088x096x9 N&B TSE 88-96-9 Nbr/gommatela 0,5.
015/I 0621900 D.088,9x114,3x13,97 88.9-114.3-13.97 Nbr/gommatela 0,5.
TGO 2531-401354 D.090x102x9,6 TSE 90-102-9.6 Nbr/gommatela 0,5.
K39-090 D.090x105x12,5 90-105-12.5 Nbr/gommatela 0,5.
TGH D.091x099x9/8 N&B TSE 91-99-8 Nbr/gommatela 0,5.
TGO 2532-452393 D.100x115x12 TSE 100-115-12 Nbr/gommatela 0,5.
VITON TGO 2532 D.100x115x12 TSE 100-115-12 Nbr/gommatela 0,5.
TGO 2531/1-425393 D.100x108x12,5 TSE 100-108-12.5 Nbr/gommatela 0,5.
18/I 0923000 D.104,7x127x14,2 104.7-127-14.2 Nbr/gommatela 0,5.
TGO 2532/11 444413 D.105x113x6/6,5 TSE 105-113-6 Nbr/gommatela 0,5.
TGO 2532/1 452413 D.105x115x9 TSE 105-115-9 Nbr/gommatela 0,5.
18/M 0390500 D.105x125x9,5 105-125-9.5 Nbr/gommatela 0,5.
18/M 1212100 D.105x120x12 105-120-12 Nbr/gommatela 0,5.
K39-105 D.105x120x12,5 105-120-12.5 Nbr/gommatela 0,5.
TGH D.107x115x9 N&B TSE 107-115-9 Nbr/gommatela 0,5.
TGO 2533-492433 D.110x125x12 TSE 110-125-12 Nbr/gommatela 0,5.
K39-110 D.110x125x12 110-125-12 Nbr/gommatela 0,5.
TGO 2534-511452 D.115x130x11,2/12 115-130-11.2 Nbr/gommatela 0,5.
VITON TGO 2534 D.115x130x11,2/2 115-130-12 Nbr/gommatela 0,5.
18/M 0250500 D.120x140x12 120-140-12 Nbr/gommatela 0,5.
TGO 2535-551492 D.125x140x11,2/12 TSE 125-140-11.2 Nbr/gommatela 0,5.
TGH D.126x134x9 N&B TSE 126-134-9 Nbr/gommatela 0,5.
TGO 2535/1 570511 D.130x145x12 TSE 130-145-12 Nbr/gommatela 0,5.
18/I 1164100 D.139,70x165,10x19,5 139.7-165.1-19.5 Nbr/gommatela 0,5.
K39-140 D.140x152x12 140-152-12 Nbr/gommatela 0,5.
18/M 0304600 D.140x160x14 140-160-14 Nbr/gommatela 0,5.
TGO 2536-629551 D.140x160x16 TSE 140-160-16 Nbr/gommatela 0,5.
TSE 629551/A D.140x160x16 140-160-16 Nbr/gommatela 0,5.
18/M 0080500 D.140x165x19 140-165-19 Nbr/gommatela 0,5.
TGH D.145x153x9 N&B TSE 145-153-9 Nbr/gommatela 0,5.
TGO 2537-669590 D.150x170x16 TSE 150-170-16 Nbr/gommatela 0,5.
TSE 669590/A D.150x170x16 150-170-16 Nbr/gommatela 0,5.
K39-150 D.150x170x16 150-170-16 Nbr/gommatela 0,5.
18/M 0080900 D.180x150x23 150-180-23 Nbr/gommatela 0,5.
18/M 0080900 D.150x180x24 150-180-24 Nbr/gommatela 0,5.
18/I 1255200 D.158,75x190,5x25,4 158.75-190.5-25.4 Nbr/gommatela 0,5.
TGO 2538-708629 D.160x180x15/16 TSE 160-180-15 Nbr/gommatela 0,5.
18/M 1283100 D.160x180x15 160-180-15 Nbr/gommatela 0,5.
18/M 0136100 D.160x190x24 160-190-24 Nbr/gommatela 0,5.
TGH D.165x173x9 N&B TSE 165-173-9 Nbr/gommatela 0,5.
16/M 8608320 D.170x185,5x6,3 170-185.5-6.3 Nbr/gommatela 0,5.
18/M 0478100 D.170x190,4x15,5 170-190.4-15.5 Viton 0,5.
18/M 0838800 D.175x200x19 175-200-19 Viton/gommatela 0,5.
18/I 0224300 D.177,8x203,2x17,44 177.8-203.2-17.44 Viton/gommatela 0,5.
TGO 2539-787708 D.180x200x15/16 TSE 180-200-15 Viton/gommatela 0,5.
18/M 0087200 D.180x210x24 180-210-24 Viton/gommatela 0,5.
18/M 0686300 D.195x210x10 195-210-10 Viton/gommatela 0,5.
TGO 2540-866787 D.200x220x16 TSE 200-220-16 Viton/gommatela 0,5.
TSE 866787/A D.200x220x16 200-220-16 Viton/gommatela 0,5.
18/M 2010000 D.200x230x24 200-230-24 Viton/gommatela 0,5.
18/I 0455700 D.203,2x234,95x24,5 203.2-234.95-24.5 Viton/gommatela 0,5.
18/M 0094300 D.210x240x24 210-240-24 Viton/gommatela 0,5.
18/I 1331900 D.234,95x266,70x25,4 234.95-266.7-25.4 Viton/gommatela 0,5.
18/M 1055500 D.250x280x24 250-280-24 Viton/gommatela 0,5.
18/M 0095000 D.300x330x24 300-330-24 Viton/gommatela 0,5.
18/M 2176000 D.340x370x25/26 340-370-25 Viton/gommatela 0,5.
18/M 0785600 D.340x380x30 340-380-30 Viton/gommatela 0,5.
18/M 1054300 D.360x400x30 360-400-30 Viton/gommatela 0,5.
18/I 1315700 D.425,45x400,05x25,4 400.05-425.45-25.4 Viton/gommatela 0,5.
TGO SPECIAL D.460x410x38 TSE 410-460-38 Viton/gommatela 0,5.
