MA43

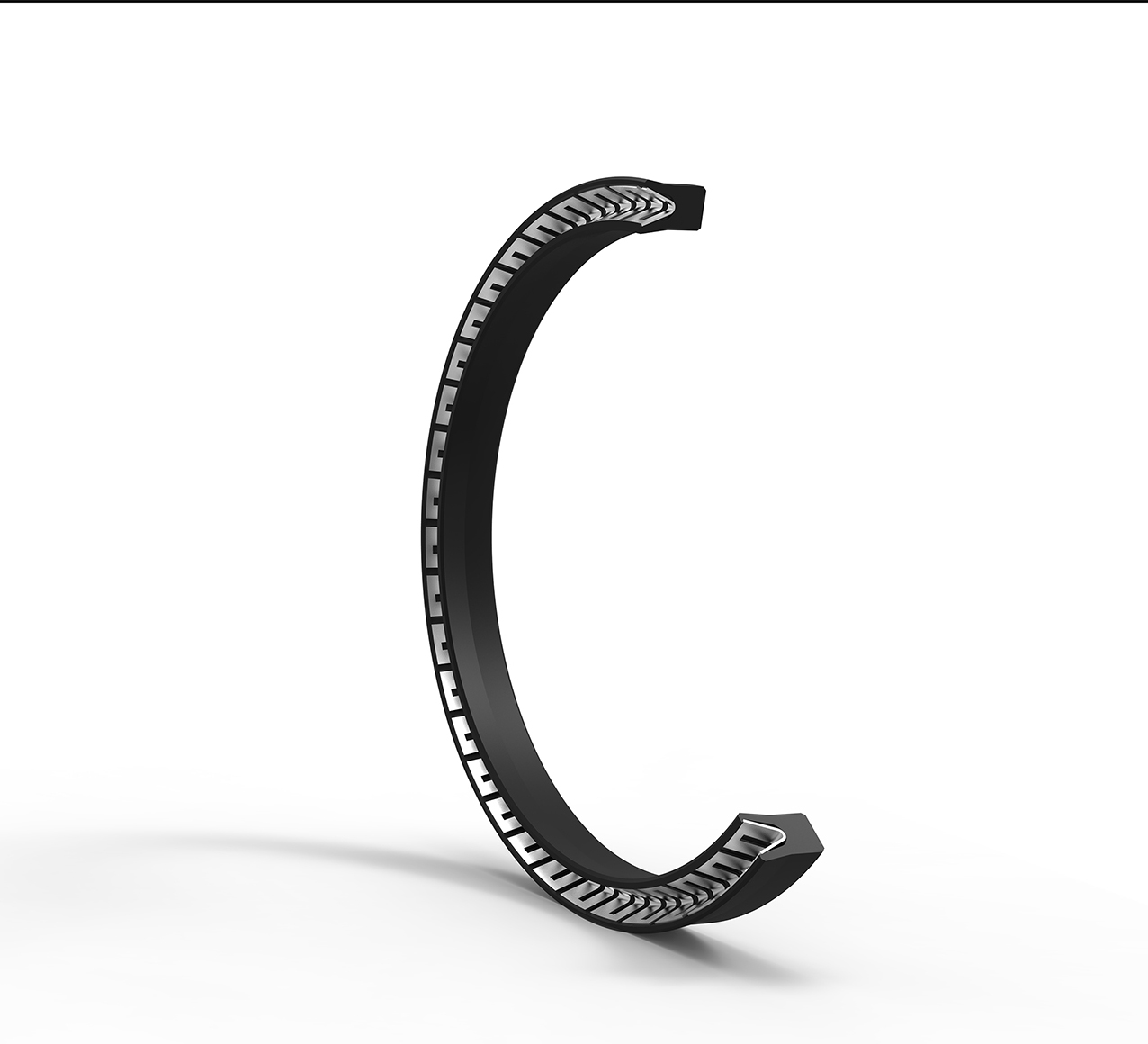

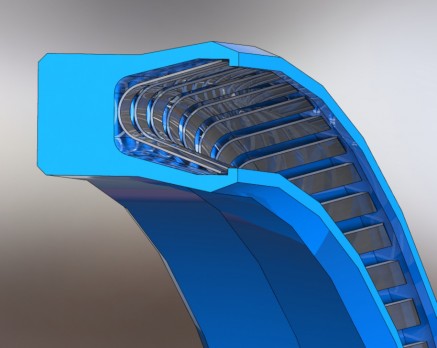

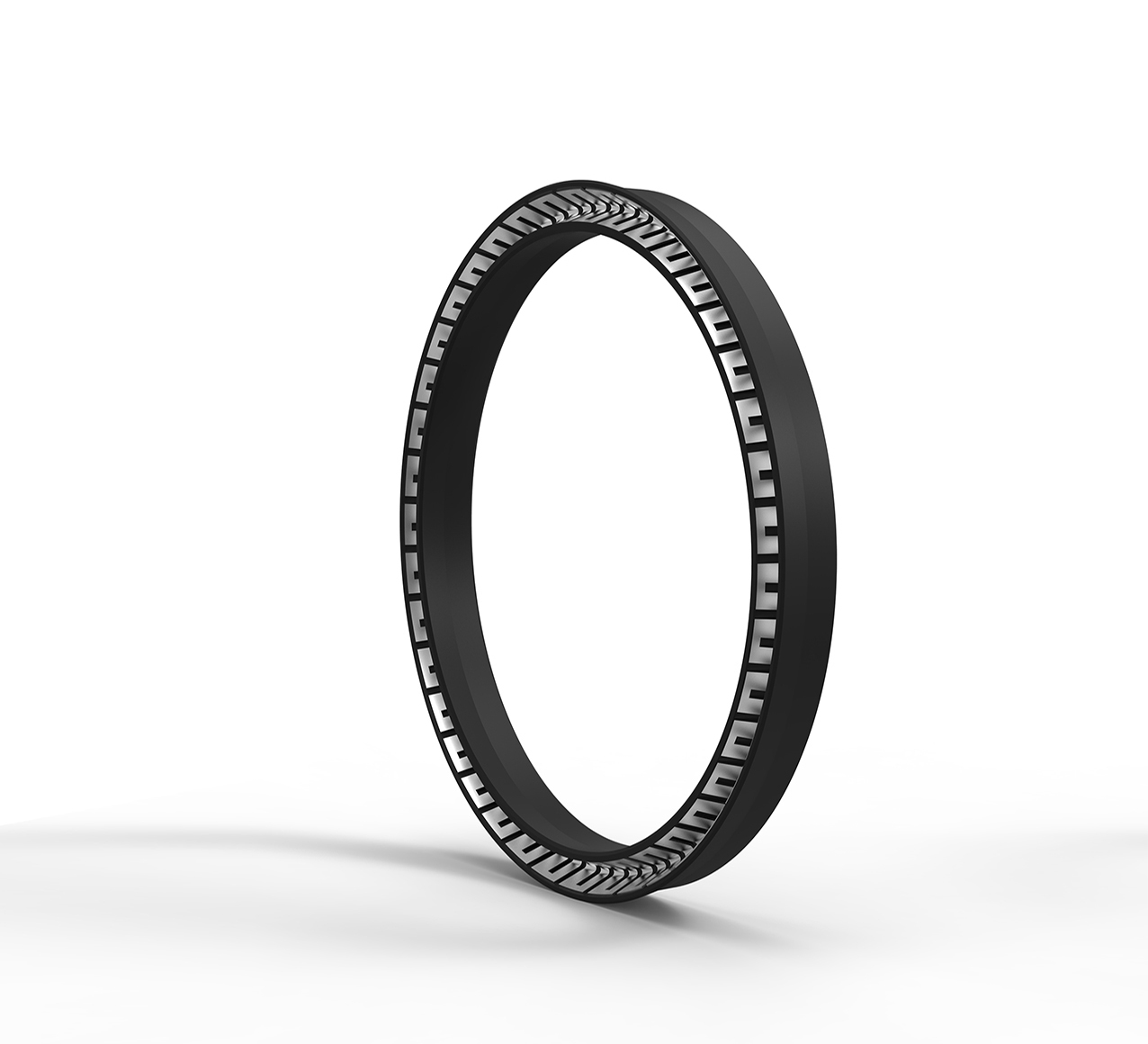

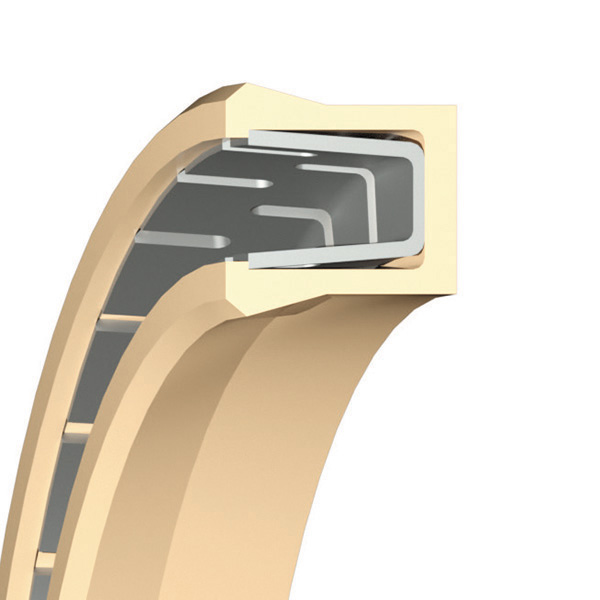

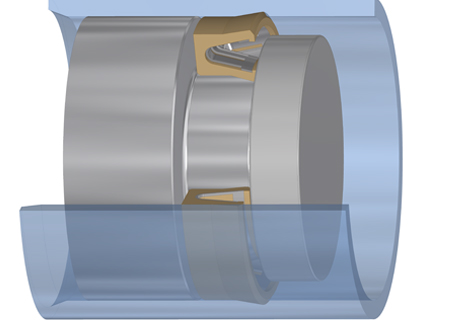

|Working conditions: |Material: PTFE + CARBON |Pressure: = 350 bar |Speed: = 15 m/s |Temperature: -150°C + 250°C MA43 PTFE + Molla V Inox they are interchangeable with: SNI43 - RS-87 - K701 - NLI – FOI. MA43 rod seal made of PTFE material filled with graphite with stainless steel spring inside the seal keeping the shape and obtaining excellent resistance and long lasting reduction of friction and where liquids and other chemicals are present. The MA43 seal are used for sealing on stems and rotating shafts.

Category: Rod Seals, Subcategory

Product Description

|Working conditions: |Material: PTFE + CARBON |Pressure: = 350 bar |Speed: = 15 m/s |Temperature: -150°C + 250°C MA43 PTFE + Molla V Inox they are interchangeable with: SNI43 - RS-87 - K701 - NLI – FOI. MA43 rod seal made of PTFE material filled with graphite with stainless steel spring inside the seal keeping the shape and obtaining excellent resistance and long lasting reduction of friction and where liquids and other chemicals are present. The MA43 seal are used for sealing on stems and rotating shafts.

Additional information

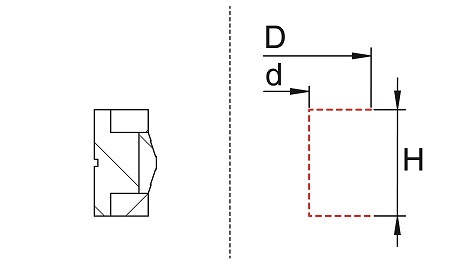

Name Size Materials Speed Stock
ENERSEAL GC021- 5,0-103-A-08-Q D,005,00x007,90x2,4 5-7.9-2.4 Ptfe/carbone 15
MA 43 PTFE CAR CARBO D,006,00x008,90x2,4 6-8.9-2.4 Ptfe 15
MA 43 PTFE CARIC CARB D,006,3x011,1x4 6.3-11.1-4 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,008x012,6x3,56 8-12.6-3.56 Ptfe/carbone 15
MA 43 PTFE VERGINE D,008x012,65x3,6 8.15-12.65-3.6 Ptfe/carbone 15
MA 43 PTFE VERGINE D,010x014,5x3,6 10-14.5-3.6 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,010x014,5x3,6 10-14.5-3.6 Ptfe 15
LC021 - 012,0-197-A-10 D,012x016,5x3,6 12-16.5-3.6 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,014x018,5x3,6 14-18.5-3.6 Ptfe/carbone 15
LC021 - 015,0-102-A-10 D,015x019,5x3,6 - FDA 15-19.5-3.6 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,015x019,5x3,6 15-19.5-3.6 Ptfe/carbone 15
HC021- 15,0-032-A-15 D,015x021,2x4,8 15-21.2-4.8 Ptfe/carbone 15
LC021- 16,0-032-A-10 D,016x020,5x3,6 16-20.5-3.6 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,018x022,5x3,6 18-22.5-3.6 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,018x024,2x4,8 18-24.2-4.8 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,020x024,5x3,6 20-24.5-3.6 Ptfe/carbone 15
HC021 - 020,0-032-A-15 D,020x026,2x4,8 20-26.2-4.8 Ptfe 15
HC021 - 020,0-102-A-15 D,020x026,2x4,8 20-26.2-4.8 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,020x026,2x4,8 20-26.2-4.8 Ptfe/carbone 15
MA 43 PTFE-VERGINE D,020x026,2x4,8-EXS 20-26.2-4.8 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,022x028,2x4,8 22-28.2-4.8 Ptfe 15
MA 43 PTFE CARIC CARB D,022x028,2x5,7 22-28.2-5.7 Ptfe/carbone 15
HC021- 25,0-032-A-15 D,025x031,2x4,8 25-31.2-4.8 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,025x031,2x4,8 25-31.2-4.8 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,025x034,4x7,1 25-34.4-7.1 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,025,4x028,3x2,4 25.4-28.3-2.4 Ptfe/carbone 15
HC021 - 028,0-197-A-15 D,028x034,2x4,8 28-34.2-4.8 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,028x034,2x4,8 28-34.2-4.8 Ptfe/carbone 15
ENERSEAL XC021 028x037x5,4 032-A 28-37-5.4 Ptfe/bronzo 15
MA 43 PTFE CARIC CARB D,030x036,2x4,8 30-36.2-4.8 Ptfe/carbone 15
HC021 - 032,0-102-A-15 D,032x038,2x4,8 32-38.2-4.8 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,032x038,2x4,8 32-38.2-4.8 Ptfe/carbone 15
MA 43 PTFE VERGINE D,032x038,2x4,8 32-38.2-4.8 Ptfe/carbone 15
HC021 - 035,0-032-A-15 D,035x041,2x4,8 35-41.2-4.8 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,035x045x8 35-45-8 Ptfe/carbone 15
HC021 - 038,0-032-A-15 D,038x044,2x4,8 38-44.2-4.8 Ptfe/carbone 15
XC021 - 038,0-032-A D,038x043,2x4,8 38-43.2-4.8 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,038x048x10 38-48-10 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,040x046,2x4,3 40-46.2-4.3 Ptfe/carbone 15
HC021 - 040,0-197-A-15 D,040x046,2x4,8 40-46.2-4.8 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,040x049,4x7,1 40-49.4-7.1 Ptfe/carbone 15
NC021 045 032 A 20 D,045x054,4x7,1 45-54.4-7.1 Ptfe/carbone 15
NC021 045 102 A 20 D,045x054,4x7,1 FDA+AISI 45-54.4-7.1 Ptfe/carbone 15
NC021 050 032-A-20 D,050x059,4x7,1 50-59.4-2.4 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,050x054,5x3,6 50-54.5-3.6 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,050x059,4x7,1 50-59.4-7.1 Ptfe/carbone 15
MA 43 PTFE VERGINE D,050x059,4x7,1 50-59.4-7.1 Ptfe/carbone 15
XC021-050,0-102-A D,050x062x9 - ptfe food grade light yellow 50-62-9 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,052x061,4x7,1 52-61.4-7.1 Ptfe/carbone 15
HC021 - 055,0-197-A-15 D,055x064,4x7,1 55-64.4-7.1 Ptfe/carbone 15
MA 43 PTFE CARIC BRONZO D,055x064,4x7,1 55-64.4-7.1 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,055x064,4x7,1 55-64.4-7.1 Ptfe/carbone 15
NC021 055 102 A 20 D,055x064,4x7,1 FDA APPROVED 55-64.4-7.1 Ptfe/carbone 15
NC021 55-032-A-20 D,055x064,4x7,1 55-64.4-7.1 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,056x060,3x3,1 56-60.3-3.1 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,056x065,4x7,1 56-65.4-7.1 Ptfe/carbone 15
NC021 056 032 A 20 D,056x065,4x7,1 56-65.4-7.1 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,060x069,4x7,1 60-69.4-7.1 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,063x072,4x7,1 63-72.4-7.1 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,070x076,2x4,8 70-76.2-4.8 Ptfe/carbone 15
HC021 - 070,0-197-A-20 D,070x079,4x7,1 70-79.4-7.1 Ptfe/carbone 15
MA 43 PTFE BEIGE + SIL D,070x079,4x7,1 70-79.4-7.1 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,070x079,4x7,1 70-79.4-7.1 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,070x079,4x8,5 70-79.4-8.5 Ptfe/carbone 15
MA 43 PTFE CARB D,075x079,5x3,6 75-79.5-3.6 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,075x084,4x7,1 75-84.4-7.1 Ptfe/carbone 15
HC021- 80,0-009-A-15 D,080x086,2x4,8 80-86.2-4.8 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,080x089,4x7,1 80-89.4-7.1 Ptfe/carbone 15
NC021- 80,0-032-A-20 D,080x089,4x7,1 80-89.4-7.1 Ptfe 15
NC021- 85,0-032-A-20 D,085x094,4x7,1 85-94.4-7.1 Ptfe 15
NC021- 85,0-103-A-20 D,085x094,4x7,1 85-94.4-7.1 Ptfe 15
XC021- 85,0-032-A-20 D,085x094,5x7,1 85-94.5-7.1 Ptfe/carbone 15
NC021 088,0-020-A-20 D,088x097,5x7,1 88-97.5-7.1 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,090x099,4x7,1 90-99.4-7.1 Ptfe/carbone 15
MA 43 PTFE-VERGINE D,090x099,4x7,1 90-99.4-7.1 Ptfe/carbone 15
NC021 095,0-197-A-20 D,095x104,4x7,1 95-104.4-7.1 Ptfe 15
EXF PTFE -MODIFICATO D,110x097,8x9,6 97.8-110-9.6 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,100x109,4x7,1 100-109.4-7.1 Ptfe 15
MA 43 PTFE CARIC CARB D,110x119,4x7,1 110-119.4-7.1 Ptfe/carbone 15
NC021 115,0-032-A-20 D,115x124,4x7,1 115-124.4-7.1 Ptfe/carbone 15
NC021-120,0-032-A-20 SPEC D,120x130x6,5 120-130-6.5 Ptfe/carbone 15
MA 43 PTFE CAR CARBONE D,120x132,2x9,5 120-132.2-9.5 Ptfe/carbone 15
MA 43 PTFE CAR CARBONE D,125x137,2x9,5 125-137.2-9.5 Ptfe/carbone 15
MA 43 PTFE CAR CARBONE D,150x162,2x9,5 150-162.2-9.5 Ptfe/carbone 15
MC021-150,0-032-A-25 D,150x162,2x9,5 150-162.2-9.5 Ptfe/carbone 15
MA 43 PTFE CAR CARBONE D,160x172,2x9,5 160-172.2-9.5 Ptfe/carbone 15
MA 43 PTFE CAR CARBONE D,200x212,2x9,5 200-212.2-9.5 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,290x302,2x9,5 290-302.2-9.5 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,340x352,2x9,5 340-352.2-9.5 Ptfe/carbone 15
MA 43 PTFE CARIC CARB D,400x412,2x9,5 400-412.2-9.5 Ptfe/carbone 15
VSI/35-A 1090 PA D1060x1090x9,5 1060-1090-9.5 Ptfe/carbone 15
