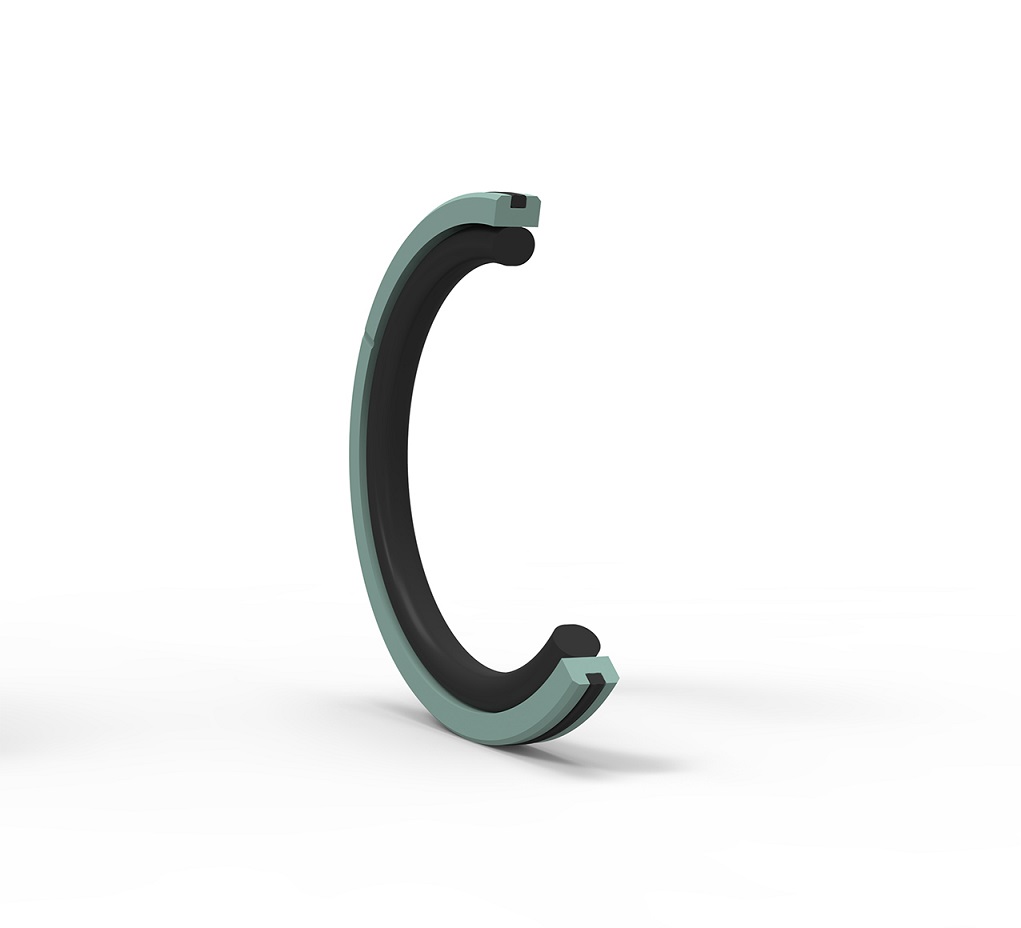

PQ

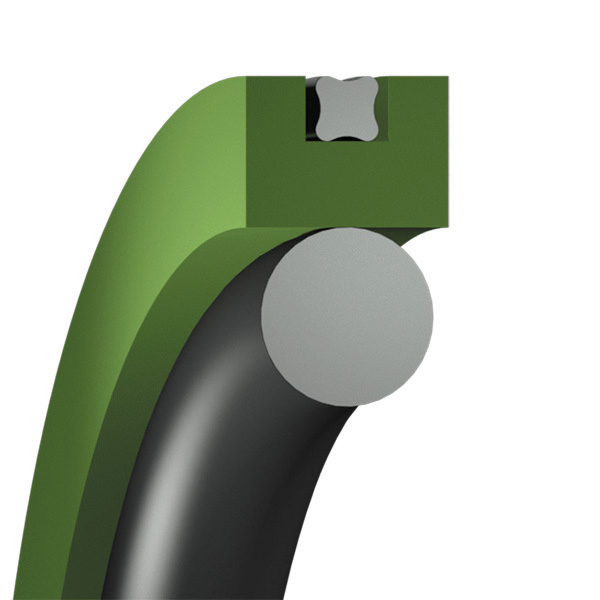

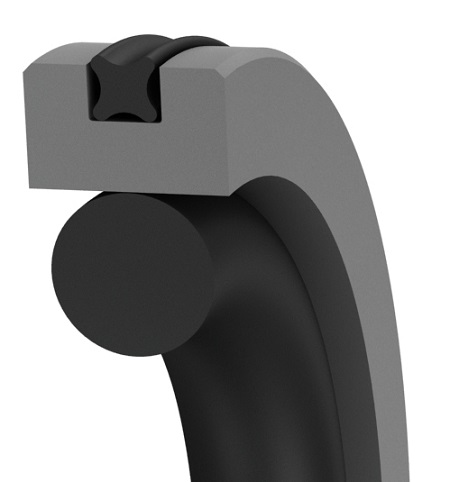

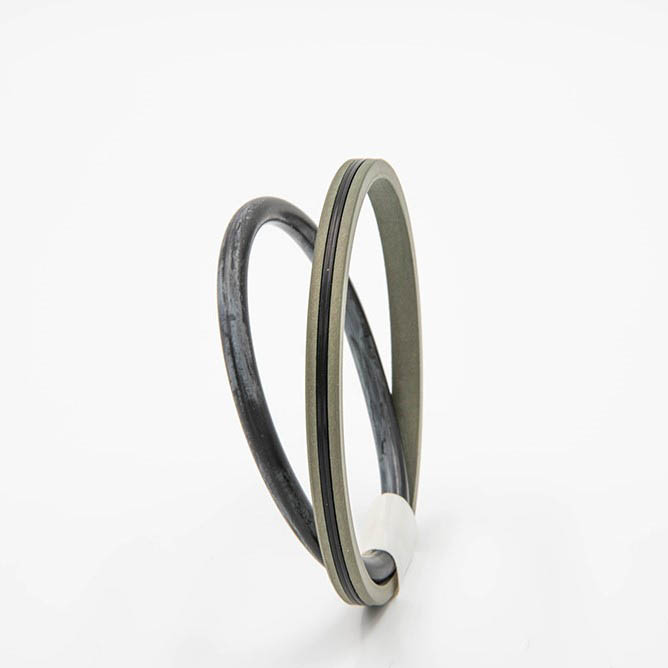

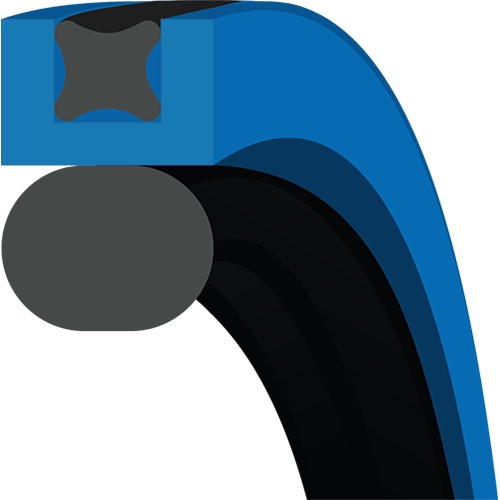

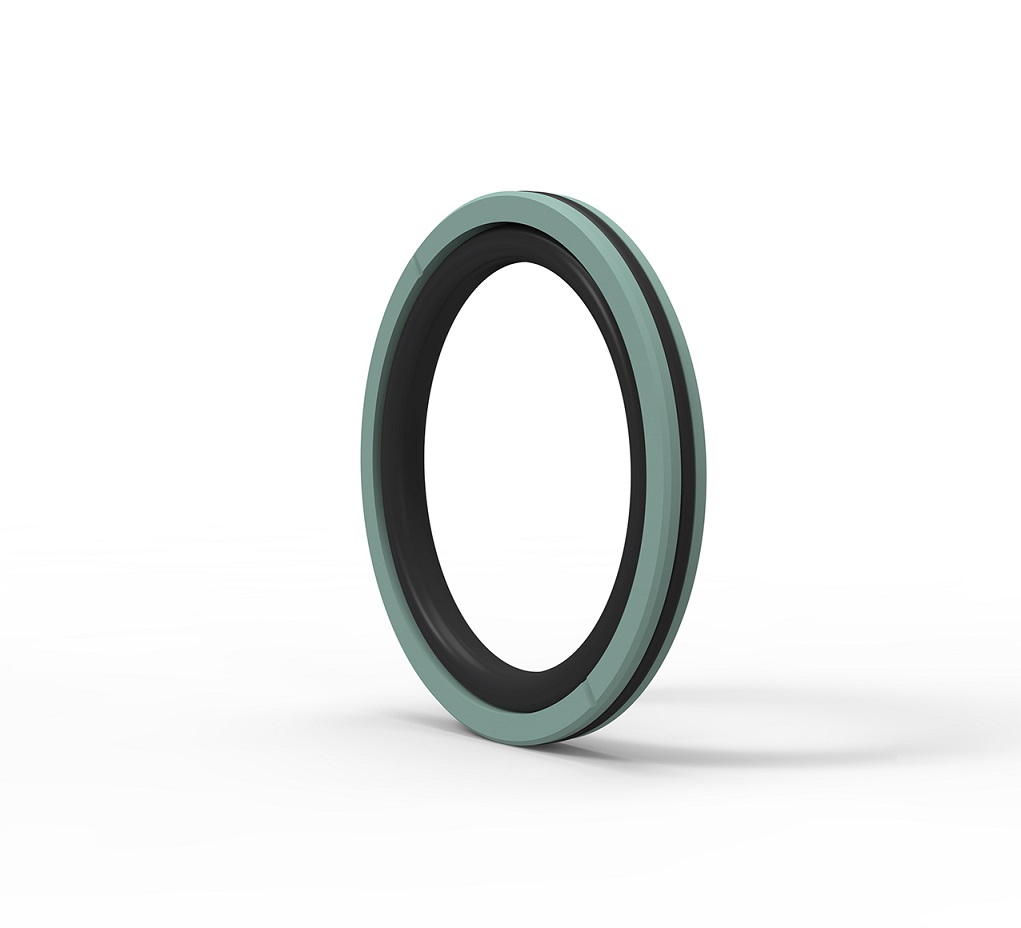

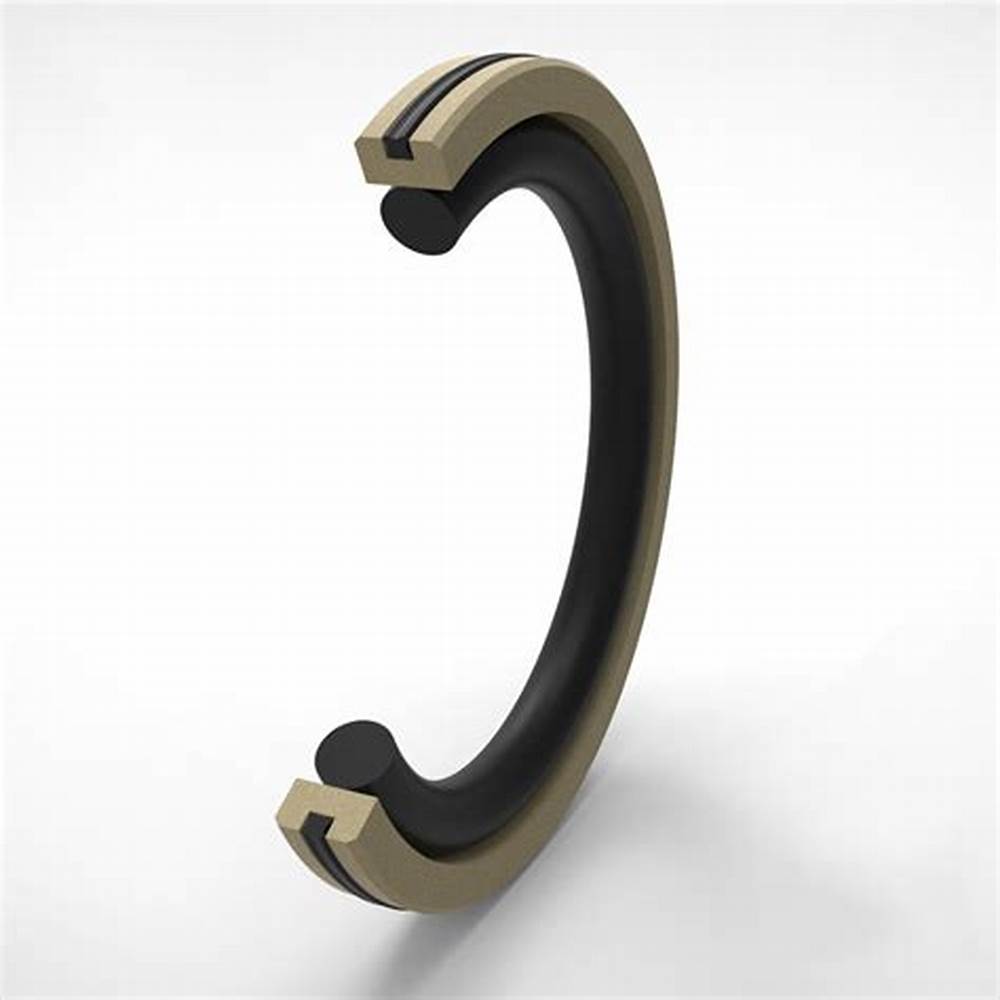

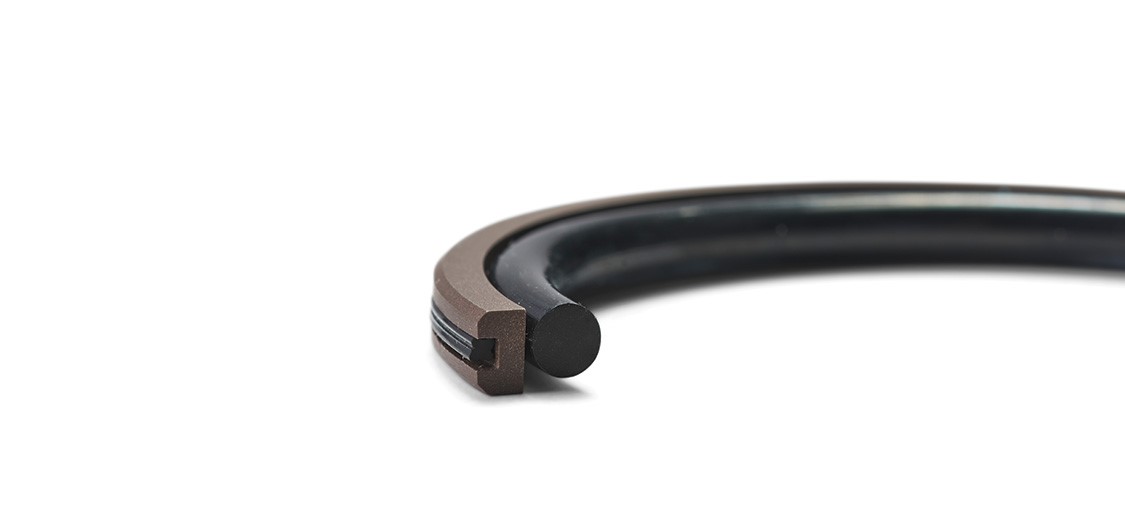

Description: |Material: PTFE + BRONZE + NBR |Pressure: = 400 bar |Speed: = 2 m/s |Temperature: - 30°C + 120°C

Category: Piston Seals, Subcategory

Product Description

Description: |Material: PTFE + BRONZE + NBR |Pressure: = 400 bar |Speed: = 2 m/s |Temperature: - 30°C + 120°C

Additional information

Name Size Materials Speed Stock
NPQ1 32 N3-031 NBR+XR 2-211/024 D.032x021x4,2 21-32-4.2 Ptfe/bronzo/nbr 2
PQ 1200320-46N D.032x021x4,2 21-32-4.2 Ptfe/bronzo/nbr 2
NPQ2 40 Q1-031 NBR D.040x030x6,3 30-40-6.3 Ptfe/bronzo/nbr 2
PQ0100400 D.040x030x6,3 30-40-6.3 Ptfe/bronzo/nbr 2
NPQ2 50 Q1-031 NBR D.050x040x6,3 40-50-6.3 Ptfe/bronzo/nbr 2
NPQ1 60 N4-031 NBR+XR 327/035 D.060x044,50x6,3 44.5-60-6.3 Ptfe/bronzo/nbr 2
NPQ1 63 N4-031 + XR 328/035 D.063x047,50x6,3 47.5-63-6.3 Ptfe/bronzo/nbr 2
NPQ2 60 Q1-031 NBR D.060x050x6,3 50-60-6.3 Ptfe/bronzo/nbr 2
NPQ2 63 Q1-031 NBR D.063x053x6,3 53-63-6.3 Ptfe/bronzo/nbr 2
PQ 1400650-T46N D.065x054x4,2 54-65-4.2 Ptfe/bronzo/nbr 2
NPQ1 80 N4-031 NBR+XR 2-333/041 D.080x064,5x6,3 64.5-80-6.3 Ptfe/bronzo/nbr 2
NPQ1 82 N4-031 NBR+XR 2-334/041 D.082x066,5x6,3 66.5-82-6.3 Ptfe/bronzo/nbr 2
NPQ2 80 Q2-031 NBR D.080x067x8,3 67-80-8.3 Ptfe/bronzo/nbr 2
NPQ1 90 N4-031 NBR+XR 336/042 D.090x074,5x6,3 74.5-90-6.3 Ptfe/bronzo/nbr 2
NPQ1 95 N4-031 NBR+XR 2-338/043 D.095x079,50x6,3 79.5-95-6.3 Ptfe/bronzo/nbr 2
NPQ1 100 N4-031 NBR 2-339+XR044 D.100x084,5x6,3 84.5-100-6.3 Ptfe/bronzo/nbr 2
NPQ2 100 Q2-031 FKM+XR 2-237/154 D.100x087x8,3 87-100-8.3 Ptfe/bronzo/viton 2
NPQ1 110 N4-031 NBR 020343+XR045 D.110x094,5x6,3 94.5-110-6.3 Ptfe/bronzo/nbr 2
NPQ1 150 N5-031 NBR 2-430+XR162 D.150x129,00x8,1 129-150-8.1 Ptfe/bronzo/nbr 2
NPQ2 480 Q4-075 NBR D.480x449x16,3 ... 449-480-16.3 Ptfe/bronzo/nbr 2
NPQ2 560 Q7-075 NBR D.560x529x16,3 2-469/390 529-560-16.3 Ptfe/bronzo/nbr 2
