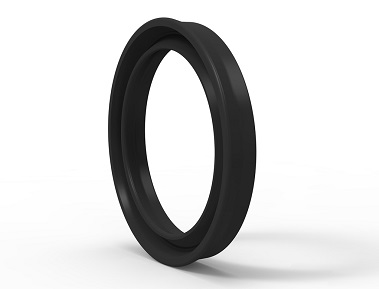

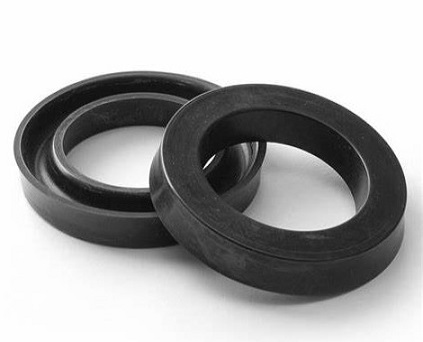

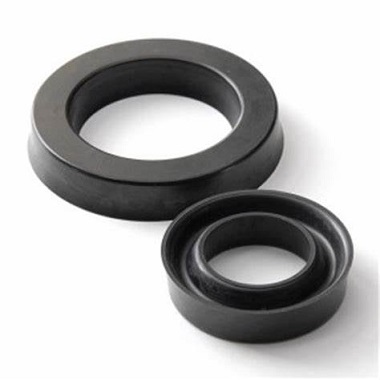

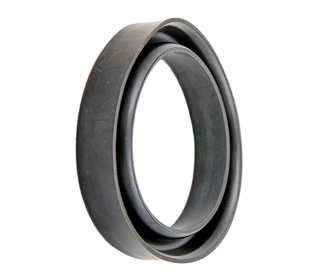

GU

|Description: |Material: NBR |Pressure: = 120 bar |Speed: = 0,25 m/s |Temperature: - 30°C + 110°C

Category: PNEUMATIC PISTON SEALS, Subcategory

Product Description

|Description: |Material: NBR |Pressure: = 120 bar |Speed: = 0,25 m/s |Temperature: - 30°C + 110°C

Additional information

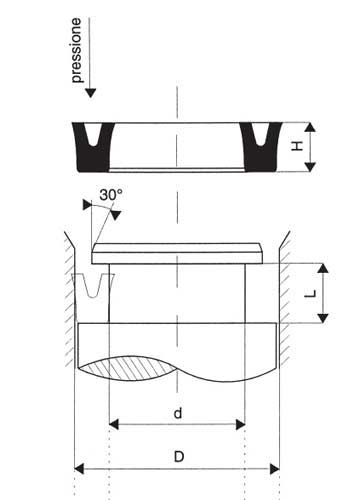

Name Size Materials Speed Stock
GU 031012 D.007,93x003,17x2,38 3.17-7.93-2.38 Nbr 0.25
VITON GU 031012 D.007,93x003,17x2,38 3.17-7.93-2.38 Viton 0.25
GU 037018 D.009,52x004,76x2,38 4.76-9.52-2.38 Nbr 0.25
VITON GU 037018 D.009,52x004,76x2,38 4.76-9.52-2.38 Viton 0.25
GU 043025 D.011,11x006,35x3,17 6.35-11.11-3.17 Nbr 0.25
GU 056031 D.014,28x007,93x3,17 7.93-14.28-3.17 Nbr 0.25
GU 050031 D.012,70x007,93x4,76 7.93-12.7-4.76 Nbr 0.25
VITON GU 050031 D.012,70x007,93x4,76 7.93-12.7-4.76 Viton 0.25
GU 062037 D.015,87x009,52x3,17 9.52-15.87-3.17 Nbr 0.25
GU 068043 D.017,46x011,11x4,76 11.11-17.46-4.76 Nbr 0.25
GU 075043 D.019,05x011,11x4,76 11.11-19.05-4.76 Nbr 0.25
870-06 NBR 90SH D.011,13x020,65x4,78 GU 11.13-20.65-4.78 Nbr 0.25
GU 087050 D.022,22x012,70x4,76 12.7-22.22-4.76 Nbr 0.25
GU SILICONE 087050 D.022,22x012,70x4,76 12.7-22.22-4.76 Silicone 0.25
GU 081050 D.020,63x012,70x5,55 12.7-20.63-5.55 Nbr 0.25
VITON GU 081050 D.020,63x012,7x5,55 12.7-20.63-5.55 Viton 0.25
GU 093056 D.023,81x014,28x4,76 14.28-23.81-4.76 Nbr 0.25
GU 100062 D.025,40x015,87x6,35 15.87-25.4-6.35 Nbr 0.25
VITON GU 100062 D.025,40x015,87x06,35 15.87-25.4-6.35 Viton 0.25
870-014 NBR 90SH D.015,88x028,58x6,35 GU 15.88-28.58-6.35 Nbr 0.25
GU 106068 D.026,99x017,46x7,12 17.46-26.99-7.12 Nbr 0.25
GU 112068 D.028,58x017,47x5,55 17.47-28.58-5.55 Nbr 0.25
GU 118075 D.030,16x019,05x6,35 19.05-30.16-6.35 Nbr 0.25
GU 125075 D.031,75x019,05x6,35 19.05-31.75-6.35 Nbr 0.25
GU 131075 D.033,34x019,05x7,93 19.05-33.34-7.93 Nbr 0.25
GU 137075 D.034,93x019,05x7,93 19.05-34.93-7.93 Nbr 0.25
GU 143081 D.036,51x020,63x9,52 20.63-36.51-9.52 Nbr 0.25
GU 150087 D.038,10x022,22x7,93 22.22-38.1-7.93 Nbr 0.25
GU 156093 D.039,69x023,81x7,93 23.81-39.69-7.93 Nbr 0.25
GU 162093 D.041,28x023,81x9,52 23.81-41.28-9.52 Nbr 0.25
GU 168100 D.042,86x025,40x9,52 25.4-42.86-9.52 Nbr 0.25
GU 175100 D.044,45x025,40x9,52 25.4-44.45-9.52 Nbr 0.25
GU 181106 D.046,04x026,99x9,52 26.99-46.04-9.52 Nbr 0.25
GU 187112 D.047,63x028,58x9,52 28.58-47.63-9.52 Nbr 0.25
GU 193118 D.049,21x030,16x9,52 30.16-49.21-9.52 Nbr 0.25
GU 200125 D.050,80x031,75x9,52 31.75-50.8-9.52 Nbr 0.25
GU 206131 D.052,39x033,34x9,52 33.34-52.39-9.52 Nbr 0.25
GU 212137 D.053,98x034,93x9,52 34.93-53.98-9.52 Nbr 0.25
GU 225143 D.057,15x036,51x7,93 36.51-57.15-7.93 Nbr 0.25
GU 218150 D.055,56x038,10x6,35 38.1-55.56-6.35 Nbr 0.25
VITON GU 218150 D.055,56x038,10x6,35 38.1-55.56-6.35 Viton 0.25
GU 231156 D.058,74x039,69x9,52 39.69-58.74-9.52 Nbr 0.25
GU 243156 D.061,91x039,69x9,52 39.69-61.91-9.52 Nbr 0.25
GU 237162 D.060,33x041,28x9,25 41.28-60.33-9.25 Nbr 0.25
GU 256168 D.065,09x042,86x9,52 42.86-65.09-9.52 Nbr 0.25
GU 262175 D.066,68x044,45x11,11 44.45-66.68-11.11 Nbr 0.25
GU 268181 D.068,26x046,04x09,52 46.04-68.26-9.52 Nbr 0.25
GU 250187 D.063,50x047,63x7,93 47.63-63.5-7.93 Nbr 0.25
GU 275193 D.069,85x049,21x9,52 49.21-69.85-9.52 Nbr 0.25
GU 287200 D.073,03x050,80x9,52 50.8-73.03-9.52 Nbr 0.25
GU 281206 D.071,44x052,39x9,52 52.39-71.44-9.52 Nbr 0.25
GU 293212 D.074,61x053,98x9,52 53.98-74.61-9.52 Nbr 0.25
GU 300218 D.076,20x055,56x9,52 55.56-76.2-9.52 Nbr 0.25
VITON GU 300218 D.076,20x055,56x09,52 55.56-76.2-9.52 Viton 0.25
GU 300225 D.076,20x057,15x9,52 57.15-76.2-9.52 Nbr 0.25
VITON GU 300225 D.076,20x057,15x09,52 57.15-76.2-9.52 Viton 0.25
GU 312237 D.079,38x060,33x9,52 60.33-79.38-9.52 Nbr 0.25
GU 337237 D.085,73x060,33x12,70 60.33-85.73-12.7 Nbr 0.25
GU 325250 D.082,55x063,50x9,52 63.5-82.55-9.52 Nbr 0.25
VITON GU 325250 D.082,55x063,50x09,52 63.5-82.55-9.52 Viton 0.25
GU 325262 D.082,55x066,68x7,93 66.68-82.55-7.93 Nbr 0.25
GU 325275 D.082,55x069,85x6,3 69.85-82.55-6.35 Nbr 0.25
GU 375275 D.095,25x069,85x9,52 69.85-95.25-9.52 Nbr 0.25
GU 350287 D.088,90x073,03x7,93 73.03-88.9-7.93 Nbr 0.25
GU SILICONE 350287 D.088,90x073,03x7,93 73.03-88.9-7.93 Silicone 0.25
VITON GU 350287 D.089,90x073,03x7,93 73.03-89.9-7.93 Viton 0.25
GU 362300 D.092,08x076,20x7,93 76.2-92.08-7.93 Nbr 0.25
GU 387300 D.098,43x076,20x9,52 76.2-98.43-9.52 Nbr 0.25
GU 400306 D.101,60x077,79x12,70 77.79-101.6-12.7 Nbr 0.25
GU 387312 D.098,43x079,38x9,52 79.38-98.43-9.52 Nbr 0.25
GU 400325 D.101,60x082,55x09,52 82.55-101.6-9.52 Nbr 0.25
GU 412331 D.104,77x084,14x11,11 84.14-104.77-11.11 Nbr 0.25
GU 412337 D.104,77x085,73x09,52 85.73-104.77-9.52 Nbr 0.25
GU 425350 D.107,95x088,90x09,52 88.9-107.95-9.52 Nbr 0.25
GU 425356 D.107,95x090,49x07,93 90.49-107.95-7.93 Nbr 0.25
GU 437362 D.111,12x092,08x9,52 92.08-111.12-9.52 Nbr 0.25
GU 450375 D.114,30x095,25x9,52 95.25-114.3-9.52 Nbr 0.25
GU 462387 D.117,50x098,43x9,52 98.43-117.5-9.52 Nbr 0.25
GU 475400 D.120,65x101,60x11,11 101.6-120.65-11.11 Nbr 0.25
VITON GU 475400 D.120,65x101,60x11,11 101.6-120.65-11.11 Viton 0.25
GU 475412 D.120,65x104,77x9,52 104.77-120.65-9.52 Nbr 0.25
GU 487425 D.123,82x107,95x7,93 107.95-123.82-7.93 Nbr 0.25
VITON GU 487425 D.123,82x107,95x7,93 107.95-123.82-7.93 Viton 0.25
GU 500437 D.127,00x111,12x7,93 111.12-127-7.93 Nbr 0.25
VITON GU 500437 D.127,00x111,12x7,93 111.12-127-7.93 Viton 0.25
GU 512437 D.130,17x111,12x9,52 111.12-130.17-9.52 Nbr 0.25
GU 525450 D.133,35x114,30x9,52 114.3-133.35-9.52 Nbr 0.25
GU 537450 D.136,52x114,30x9,52 114.3-136.52-9.52 Nbr 0.25
GU 550462 D.139,70x117,50x9,52 117.5-139.7-9.52 Nbr 0.25
GU 550475 D.139,70x120,65x9,52 120.65-139.7-9.52 Nbr 0.25
GU 562487 D.142,87x123,80x9,52 123.8-142.87-9.52 Nbr 0.25
VITON GU 562487 D.142,87x123,80x09,52 123.8-142.87-9.52 Viton 0.25
GU 562500 D.142,87x127,00x7,93 127-142.87-7.93 Nbr 0.25
GU 575500 D.146,05x127,00x9,52 127-146.05-9.52 Nbr 0.25
GU 600500 D.152,40x127,00x12,70 127-152.4-12.7 Nbr 0.25
GU 587512 D.149,22x130,17x9,52 130.17-149.22-9.52 Nbr 0.25
GU 625525 D.158,80x133,35x12,70 133.35-158.8-12.7 Nbr 0.25
GU 612537 D.155,57x136,52x09,52 136.52-155.57-9.52 Nbr 0.25
GU 650550 D.165,10x139,70x12,70 139.7-165.1-12.7 Nbr 0.25
GU 700575 D.177,80x146,05x12,70 146.05-177.8-12.7 Nbr 0.25
GU 675600 D.171,45x152,40x9,52 152.4-171.45-9.52 Nbr 0.25
GU 725600 D.184,15x152,40x12,70 152.4-184.15-12.7 Nbr 0.25
GU 750625 D.190,50x158,75x15,87 158.75-190.5-15.87 Nbr 0.25
GU 800650 D.203,20x165,10x19,05 165.1-203.2-19.05 Nbr 0.25
GU 825675 D.209,55x171,45x19,05 171.45-209.55-19.05 Nbr 0.25
GU 850675 D.215,90x171,45x19,05 171.45-215.9-19.05 Nbr 0.25
GU 800700 D.203,20x177,8x12,7-870-80 177.8-203.2-12.7 Nbr 0.25
GU 775700 D.196,90x177,80x15,87 177.8-196.9-15.87 Nbr 0.25
GU 875725 D.222,30x184,15x19,05 184.15-222.3-19.05 Nbr 0.25
GU 900750 D.228,60x190,50x19,05 190.5-228.6-19.05 Nbr 0.25
GU 925775 D.235,00x196,90x19,05 196.9-235-19.05 Nbr 0.25
GU 975800 D.247,70x203,20x19,05 203.2-247.7-19.05 Nbr 0.25
GU 950825 D.241,30x209,55x12,70 209.55-241.3-12.7 Nbr 0.25
GU 1000850 D.254x215,90x19,50 215.9-254-19.5 Nbr 0.25
GU 1050900 D.266,70x228,60x22,22 228.6-266.7-22.22 Nbr 0.25
GU 1100950 D.279,40x241,30x22,22 241.3-279.4-22.22 Nbr 0.25
GU 11501000 D.292,10x254,00x22,22 254-292.1-22.22 Nbr 0.25
GU 12001050 D.304,80x266,70x22,22 266.7-304.8-22.22 Nbr 0.25
GU 12501100 D.317,50x279,40x22,22 279.4-317.5-22.22 Nbr 0.25
GU 13001150 D.330,20x292,10x22,22 292.1-330.2-22.22 Nbr 0.25
GU 13501200 D.342,90x304,80x22,22 304.8-342.9-22.22 Nbr 0.25
GU 14001250 D.355,60x317,50x22,22 317.5-355.6-22.22 Nbr 0.25
GU 14501300 D.368,30x330,20x22,22 330.2-368.3-22.22 Nbr 0.25
GU 15001325 D.381,00x336,55x22,22 336.55-381-22.22 Nbr 0.25
GU 15251350 D.387,35x342,90x22,22 342.9-387.35-22.22 Nbr 0.25
GU 15501400 D.393,70x355,60x22,22 355.6-393.7-22.22 Nbr 0.25
GU 16001450 D.406,40x368,30x22,22 368.3-406.4-22.22 Nbr 0.25
GU 16501500 D.419,10x381,00x22,22 381-419.1-22.22 Nbr 0.25
GU 17001550 D.431,80x393,70x22,22 393.7-431.8-22.22 Nbr 0.25
GU 17501600 D.444,50x406,40x22,22 406.4-444.5-22.22 Nbr 0.25
GU 18001650 D.457,20x419,10x22,22 419.1-457.2-22.22 Nbr 0.25
GU 18501700 D.469,90x431,80x22,22 431.8-469.9-22.22 Nbr 0.25
GU 19001750 D.482,60x444,60x22,22 444.6-482.6-22.22 Nbr 0.25
GU 19501800 D.495,30x457,20x22,22 457.2-495.3-22.22 Nbr 0.25
GU 20001850 D.508,00x469,90x19,05 469.9-508-19.05 Nbr 0.25
