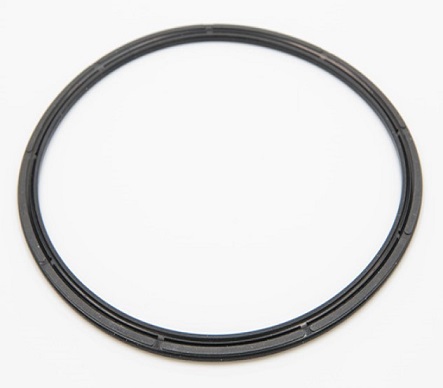

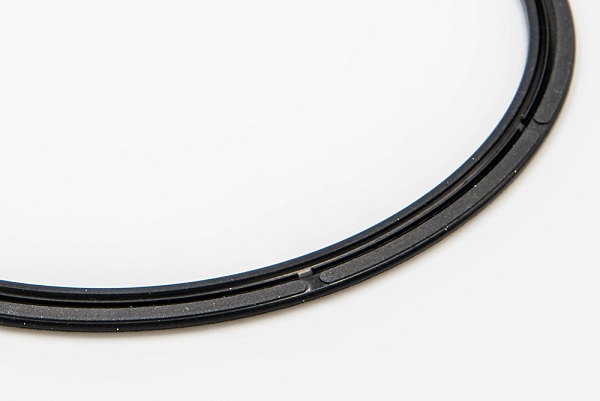

KDN

|Description: |Material: NBR |Pressure: = 12 bar |Speed: = 1 m/s |Temperature: - 20°C + 100°C

Category: PNEUMATIC PISTON SEALS, Subcategory

Product Description

|Description: |Material: NBR |Pressure: = 12 bar |Speed: = 1 m/s |Temperature: - 20°C + 100°C

Additional information

Name Size Materials Speed Stock
KDN 49046430 D.012x005x1,8 5-12-1.8 Nbr 0.25
KDN 49044391 D.016x008x2,1 8-16-2.1 Nbr 0.25
KDN 49046431 D.020x012x2,1 12-20-2.1 Nbr 0.25
KDN 429070 D.030x017x2,1 17-30-2.1 Nbr 0.25
KDN 429068 D.025x017,9x2,1 17.9-25-2.1 Nbr 0.25
KDN 502039 D.032x019,9x2,1 19.9-32-2.1 Nbr 0.25
KDN 49046472 D.035x022x2,1 22-35-2.1 Nbr 0.25
KDN 532581 D.040x027,9x2,1 27.9-40-2.1 Nbr 0.25
KDN-025 D.030x040x5 30-40-5 Nbr 0.25
KDN-032 D.036x046x5 36-46-5 Nbr 0.25
KDN 429083 D.050x037,9x2,1 37.9-50-2.1 Nbr 0.25
KDN-040 D.042x052x5 42-52-5 Nbr 0.25
KDN 430632 D.060x048x2,1 48-60-2.1 Nbr 0.25
KDN-050 D.054x064x5 54-64-5 Nbr 0.25
KDN 527489 D.063x051x2,1 51-63-2.1 Nbr 0.25
KDN 429086 D.080x068x2,1 68-80-2.1 Nbr 0.25
KDN-010 D.012x020x4,5 12-20-4.5 Nbr 0.25
KDN-015 D.018x026x4,5 18-26-4.5 Nbr 0.25
KDN-020 D.023x033x4,5 23-33-4.5 Nbr 0.25
KDN 430634 D.070x058x2,1 58-70-2.1 Nbr 0.25
KDN-065 D.071x081x5 71-81-5 Nbr 0.25
KDN 429527 D.090x078x2,1 78-90-2.1 Nbr 0.25
KDN-076,2 D.078x088x5 78-88-5 Nbr 0.25
KDN-080 D.085x095x5 85-95-5 Nbr 0.25
KDN 429088 D.100x088,1x2,1 88.1-100-2.1 Nbr 0.25
KDN-090 D.094x104x5 94-104-5 Nbr 0.25
KDN-100 D.104x114x6 104-114-6 Nbr 0.25
KDN 429090 D.125x113,3x2,1 113.3-125-2.1 Nbr 0.25
KDN-125 D.130x142x7 130-142-7 Nbr 0.25
